Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
17 in. Diameter

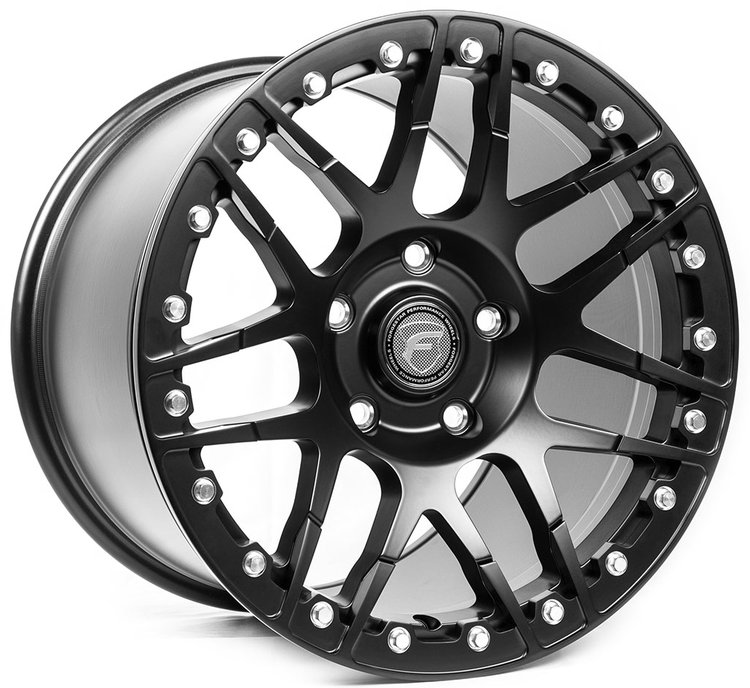

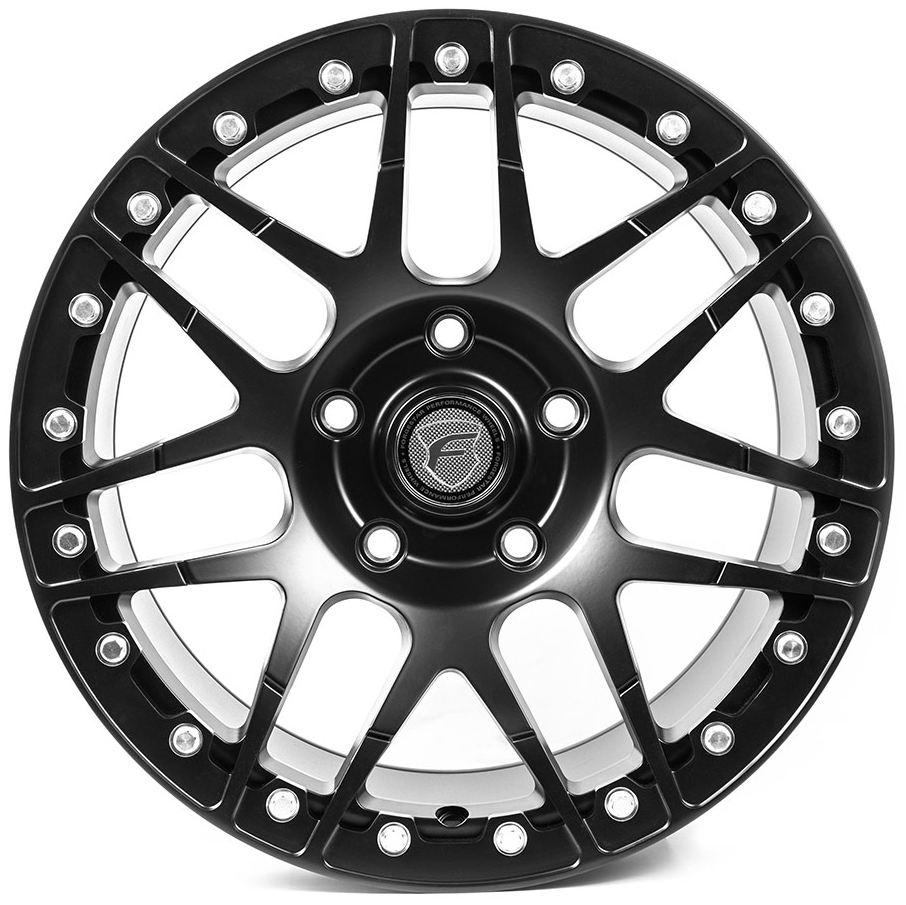

F14 Beadlock Drag Race WheelDiameter: 17 in. x 10 in. Bolt Pattern: 5 x 120.650 mm Back Spacing: 7.800 in. Offset: +43 mm Hub Bore: 78.100 mm Load: 1,520 lbs. Satin Black Finish Sold Individually
Features:
- Deep concave profile for high-offset applications
- Rotary-forged flow formed barrel delivers strength and weight savings
- Monoblock construction
- The spoke design is integrated into the Beadlock ring
- 6061-aluminum Beadlock ring
- Threaded steel Helicoils
- Dual bead knurling
Notes:
- All Forgestar wheels are drilled to cone seat specs. Conical/tapered-style lug nuts will be required
- Will clear big brake kits
Race-Inspired Beadlock Drag Wheels
Forgestar F14 Beadlock Drag Racing Wheels are the world's first concave monoblock wheel, designed with the spoked integrated right into the beadlock ring. These wheels feature dual bead knurling and a rotary-forged flow formed barrel for ultimate strength and weight savings. Available in popular 17 in. diameter.
Part TypeWheel
Product LineForgestar F14 Beadlock Drag Racing Wheels
BrandFORGESTAR WHEELS
Package Height13.0
Package Width19.0
Package Length19.0
Part CategoryPerformance Parts
Lug Nut Seat TypeConical
Quantity1
Wheel MaterialForged Aluminum
Wheel FinishSatin Black
Beadlock FunctionalYes
Functional BeadlockYes
Bolt Pattern5 X 4.75 in.
Offset1.692 in.
Beadlock IncludedYes
Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
Center Cap IncludedYes
Lug Nut Seat StyleConical
Wheel Diameter17 in.
Wheel Offset43 mm (1.6929 in)
Wheel TypeDrag Race Wheels
Part FitmentUniversal
Wheel Width10 in.
Vendor Part NumberF28171163P43
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
