Aluminum Radiator
InfoVehicle Info Needed

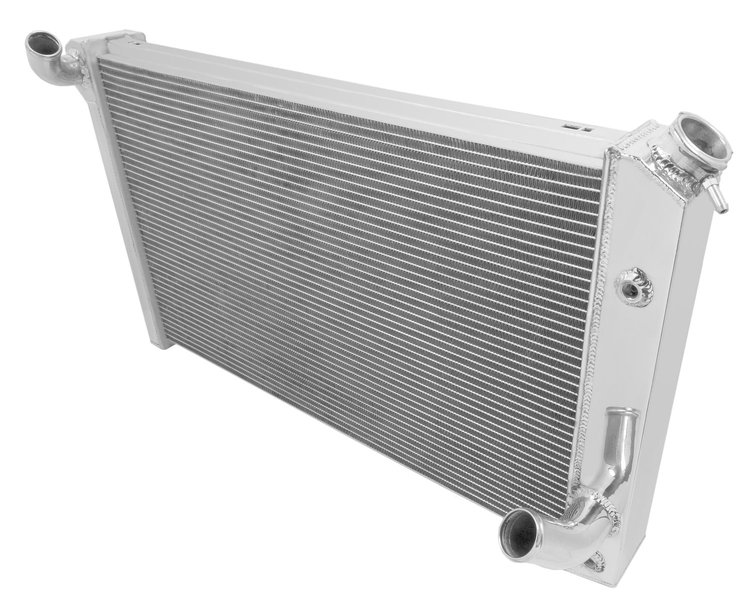

FROSTBITE PERFORMANCE COOLINGPART NUMBER: 569-FB249

Aluminum Radiator

$43095$478.95You Save$48.00
ShippingShips on 12/03/2026
Lowest PriceLowest Price Guarantee

Items You Need

Funnel [8.5 in. Overall Length]

JEGS

Funnel [8.5 in. Overall Length]

Part Number : 555-W4064
$599$6.99
You Save$1.00
Drain Pan [7 Quart]

JEGS

Drain Pan [7 Quart]

Part Number : 555-W4070
$499$5.99
You Save$1.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
Water Wetter Supercoolant 12oz Bottle

RED LINE OIL

Water Wetter Supercoolant 12oz Bottle

Part Number : 816-80204
$1599

GM
Aluminum Radiator
  • 1973-1976 Chevrolet Corvette
  • 350, 454 V8
  • 11/16 in. 3-Row Core
  • Single Pass
  • Polished Finish

    FROSTBITE PERFORMANCE COOLING FB249 Features:

    High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products. Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. When it comes to keeping your ride cool, Make it Frostbite!
    • 100% TIG Welded (Brazed) seams
    • Aircraft quality aluminum core, fittings, and tanks (Up to 30% weight savings)
    • Billet Aluminum Filler Neck & OEM style Brass Petcock
    • More cooling surface area (16 fins per inch) for more efficient cooling
    • Custom Frostbite High Performance 16lb. Radiator Cap
    • Polished Top and tanks for custom show appearance
    • Applications supporting up to 1000+ horsepower
    • Keep Your Engine Running Cool

      Frostbite Performance 3-Row Radiators are designed as application-specific all-aluminum variants of radiators for classic vehicles. Constructed with aircraft-quality aluminum using TIG-welded brazed seams, these radiators can provide up to a 30% decrease in weight relative to the old OEM brass units they replace. Containing 16 fins per inch, these radiators have more cooling surface for faster, more efficient cooling. Polished end tanks and top plate provide a show-quality appearance. Each radiator includes a matching billet radiator cap cover to complement the custom look.

    Part TypeRadiator
    Product LineFrostbite Performance Cooling 3-Row Aluminum Radiators
    BrandFROSTBITE PERFORMANCE COOLING
    Package Height2.4
    Package Width19.5
    Package Length33.5
    Weight14.0 PG
    Part CategoryPerformance Parts
    Overall Height19.5 in (495.3 mm)
    Outlet Size1.75 in (44.5 mm)
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    QuantitySold individually
    Mounting Hardware IncludedNo
    Inlet LocationUpper driver side
    Inlet Size (In.)1.5
    Core Height17 in (431.8 mm)
    Core Thickness2.2 in (55.88 mm)
    Mounting Brackets IncludedNo
    Core Width27.5 in (698.5 mm)
    Row Quantity3
    Outlet LocationLower passenger side
    Overall Width33.5 in (850.9 mm)
    Tube Size0.687 in (17.4 mm)
    Radiator FinishPolished
    Transmission CoolerYes
    Part FitmentDirect Fit
    Radiator StyleCrossflow
    Vendor Part NumberFB249
    Package Qty1
    Package TypeEA
