High-Performance Series Aluminum Fan and Shroud Package
InfoVehicle Info Needed
FROSTBITE PERFORMANCE COOLINGPART NUMBER: 569-FB512H

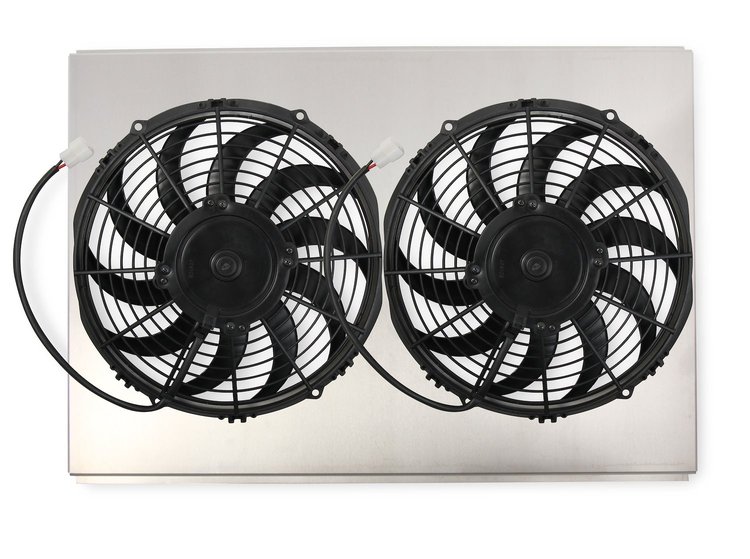

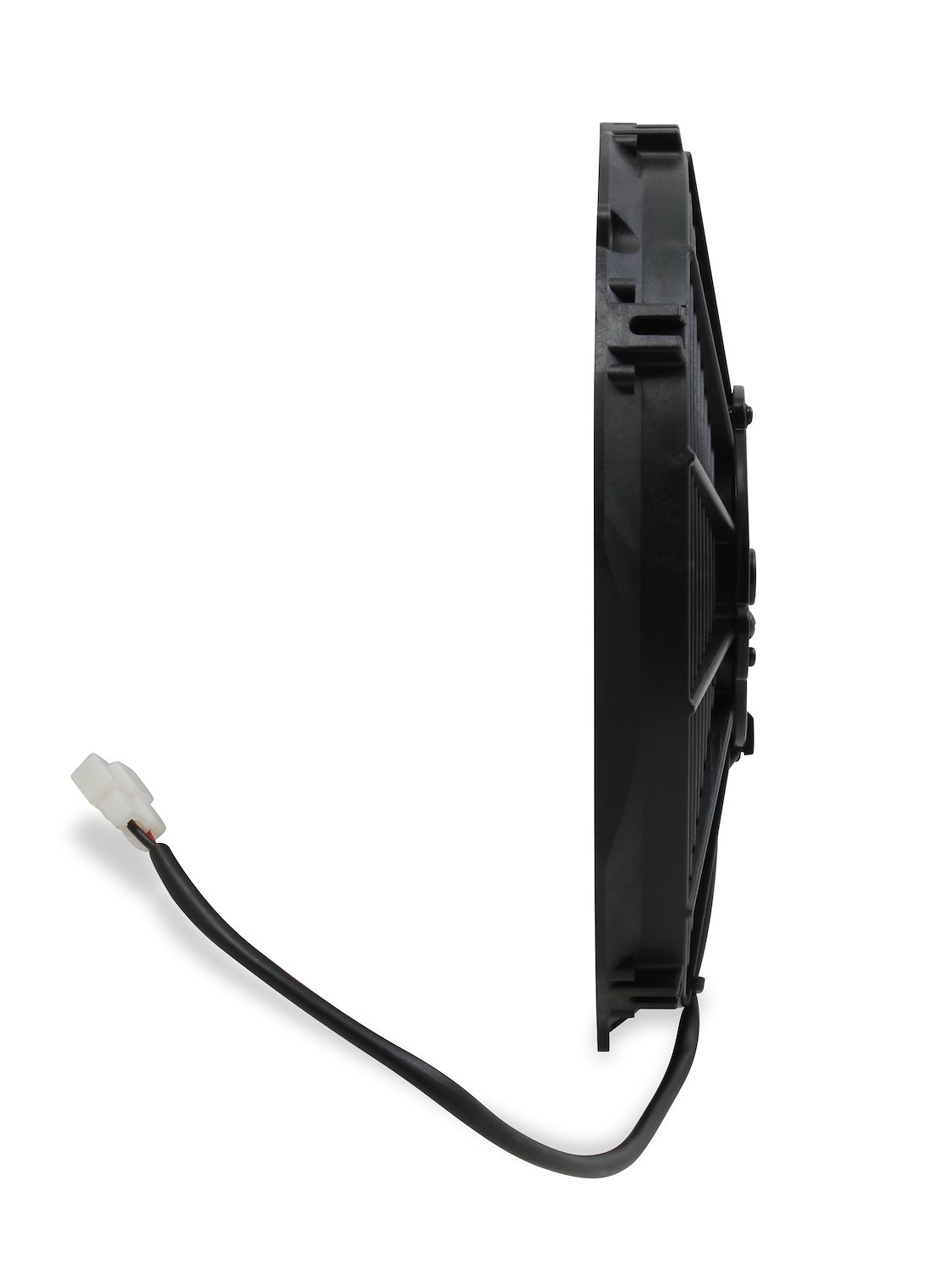

High-Performance Series Aluminum Fan and Shroud Package

$67395$749.95You Save$76.00
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Manual-Controlled Dual Fan Wiring Harness and Relay Kit 30 Amp

JEGS

Manual-Controlled Dual Fan Wiring Harness and Relay Kit 30 Amp

Part Number : 555-10569
$5999$64.99
You Save$5.00
Sure Grip Cut & Pull Wire Stripper

JEGS

Sure Grip Cut & Pull Wire Stripper

Part Number : 555-80573
$1999$21.99
You Save$2.00
Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00
Dual Fan Wiring Harness & Relay Kit 30 Amp [200-degrees on 185-degrees off]

JEGS

Dual Fan Wiring Harness & Relay Kit 30 Amp [200-degrees on 185-degrees off]

Part Number : 555-10571
$6989$76.89
You Save$7.00

GM Applications
High-Performance Series Aluminum Fan and Shroud Package
  • Fits Frostbite Radiators FB153, FB154, FB155, FB311
  • Dual 14 in. Fan
  • 1800 CFM

    Features

    • Direct fit for Frostbite Radiators 1967-1972 Chevy/GMC Truck w/28 in. wide core
    • Shroud Dimensions: 17 x 28.250 x 1 in.
    • .080 in. thick aluminum
    • 15.400 Amp Draw
    • 184.800-watt rating

    Note: Aluminum fan shroud and fan kits do NOT include fan relay kit or fasteners to mount the fans to the shroud or shroud to the radiator.

    • Ultimate Cooling Packages for Frostbite Radiators

      A proper cooling system is essential to maximizing vehicle performance and increasing the longevity of engine components. Electric fans and shrouds can improve the efficiency of radiators and eliminate power drain and horsepower loss from factory-style mechanical cooling fans. Frostbite Economy Fan & Shroud Packages are direct application-specific fittings for 2, 3, and 4-row Frostbite Aluminum radiators. Fan/Shroud packs are shown on radiators for illustrative purposes only and are sold separately.

    Part TypeElectric Fan
    Product LineFrostbite Economy Fan & Shroud Packages For Frostbite Aluminum Radiators
    BrandFROSTBITE PERFORMANCE COOLING
    Package Height6.25
    Package Width21.5
    Package Length32.0
    Weight13.8 PG
    Part CategoryPerformance Parts
    Blade MaterialPlastic
    Fan QuantityDual
    Shroud MaterialAluminum
    Air Conditioning Relay IncludedNo
    QuantitySold as a kit
    Mounting Hardware IncludedNo
    Fan Diameter14 in (355.6 mm)
    Blade TypeCurved
    Blade ColorBlack
    Amp Draw15.40 amps
    Mounting Brackets IncludedNo
    Part FitmentSemi Universal
    Maximum Fan Cfm2,2000 cfm
    Shroud ColorNatural
    Vendor Part NumberFB512H
    Package Qty1
    Package TypeEA
