This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

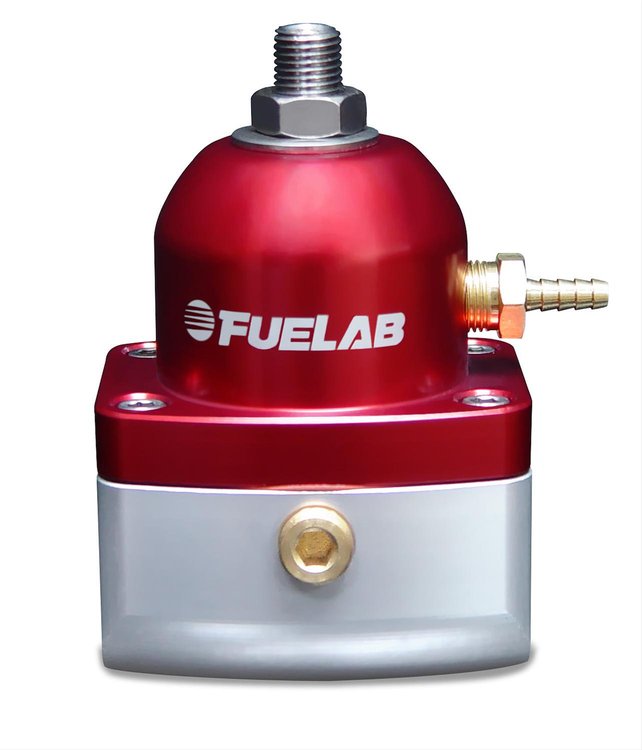

- 515 Series Fuel Pressure Regulator
- Inlet: -6AN (2)
- Return Port: -6AN (1)
- Seat Size: Large
- Pressure Range: TBI 10-25 psi
- Red
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- Fuelab Adjustable Fuel Pressure Regulators are available in 515/525, 529, 535/545, 555 and 565 Series and are designed for performance, flexibility, and easy installation.
- Two -6AN or -10AN inlet ports and one -6AN return port
- Gasoline, diesel, methanol, and ethanol fuel compatible
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8" NPT gauge port with plug for external pressure gauge
- 1/8" NPT pressure reference port with barbed fitting
- 2-year limited warranty
515/525 Series Fuel Pressure Regulators accept port style and non-port style union fittings without interference. Available in several configurations that support carbureted applications as low as 1 psi to fuel injected applications up to 125 psi.
Note: The 515 Series Fuel Pressure Regulator has a -6AN return port located on the bottom.
The 525 Series has its return port in-line with the inlet port (not on the bottom).
535/545 Series Fuel Pressure Regulators have all the same great features as the 515/525 Series, just smaller and 50% less weight.
555 Series Fuel Pressure Regulators are true precision instruments designed to regulate fuel. Featuring an advanced poppet design for smooth regulating capability adjustable from 4-12 psi. Includes a no-creep methanol and E85 compatible soft seat.
Note: 555 Series is Methanol only. Two -8AN outlet ports with one -8AN inlet port. Filtered breather vent included.
565 Series Fuel Pressure Regulators have all of the same great features as the 515/525 Series except for extreme capacity. Has 1/2" return orifice and -10AN ports with a bypass capability over 5 gpm at 5 psi and can handle blow through carbureted applications well over 1800 HP for EFI applications using belt driven fuel pumps. Available in four different pressure ranges covering applications between 4 and 80 psi.
Note: Two -10AN inlets, one -10AN return port; 1.75" sized diaphragm with 1/2" return orifice.
