This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

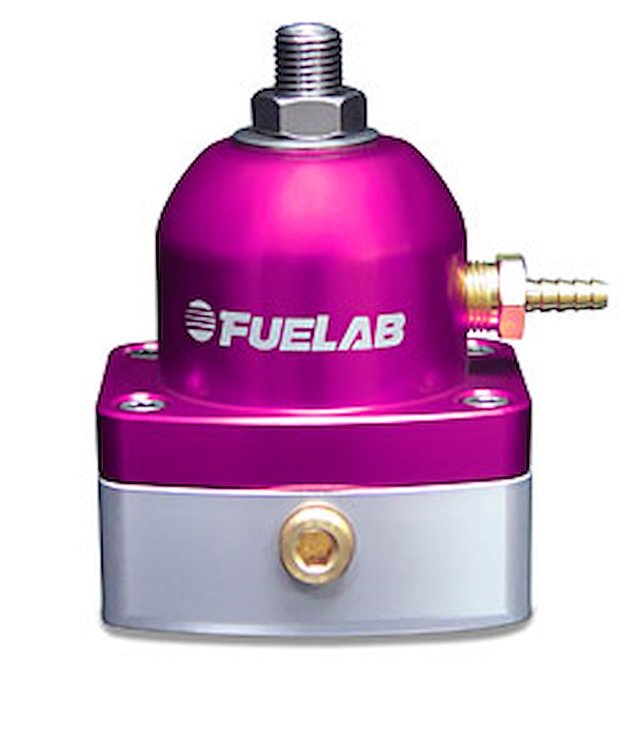

- 525 Series In-Line Fuel Pressure Regulator
- Inlet: -6AN (1)
- Return Port: -6AN (1)
- Seat Size: Standard
- Pressure Range: EFI 25-90 psi
- Purple
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Fuelab 525 Series Fuel Pressure Regulators are designed with performance and flexibility in mind. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting carbureted applications as low as 1 PSI to fuel injected applications up to 125 PSI. The Fuelab 525 Series has its return port in-line with the inlet port (not on the bottom) which allows for easy installation in extremely tight locations.
Show More
Features:
- One -6AN inlet port and one -6AN return port
- Gasoline, diesel, methanol, and ethanol fuel compatible
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8" NPT gauge port with plug for external pressure gauge
- 1/8" NPT pressure reference port with barbed fitting
