Made in USA

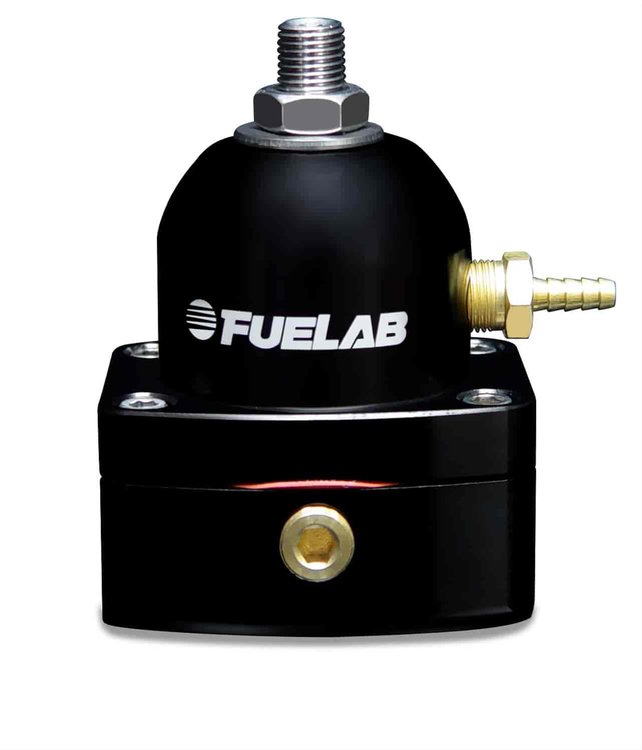

535 Series Fuel Pressure Regulator Inlet: -6AN (2)
Product Discontinued
FUELABPART NUMBER: 083-53502-1-G

535 Series Fuel Pressure Regulator Inlet: -6AN (2)

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

535 Series Fuel Pressure Regulators
  • Pressure Range: EFI 90-125 PSI
  • Inlet: -6AN
  • Outlet: -6AN
  • Standard Seat
      • 535 Series Fuel Pressure Regulator
    • Inlet: -6AN (2)
    • Return Port: -6AN (1)
    • Seat Size: Standard
    • Pressure Range: EFI 90-125 psi
    • Black

    Fuelab 535 Series Fuel Pressure Regulators are designed with performance and flexibility in mind. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting TBI applications as low as 10 PSI to fuel injected applications up to 125 PSI. Fuelab 535 Series Fuel Pressure Regulators have all the same great features as the 515 series, only smaller and weigh 50% less!

    Show More

    Features:

    • Two -6AN or -10AN inlet ports and one -6AN return port
    • Gasoline, diesel, methanol, and ethanol fuel compatible
    • Billet Aluminum with anodize per military MIL-A-8625, Type II
    • Fine thread pitch for precise pressure adjustment
    • Versatile mounting bracket and stainless steel hardware
    • 1/8" NPT gauge port with plug for external pressure gauge
    • 1/8" NPT pressure reference port with barbed fitting
    Part TypeFuel Pressure Regulator O-Ring
    Product LineFuelab 535 Series Fuel Pressure Regulators
    BrandFUELAB
    Package Height3.0
    Package Width4.75
    Package Length5.0
    Weight10.3 PG
    Part CategoryPerformance Parts
    Part FitmentUniversal
    Vendor Part Number53502-1-G
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
