![595 Series Ultralight Fuel Pressure Regulator [1-3 PSI]](https://www.jegs.com/images/mini_750/0/083/083-59503-1-l.jpg)
Vehicle Info NeededFUELABPART NUMBER: 083-59503-1-L

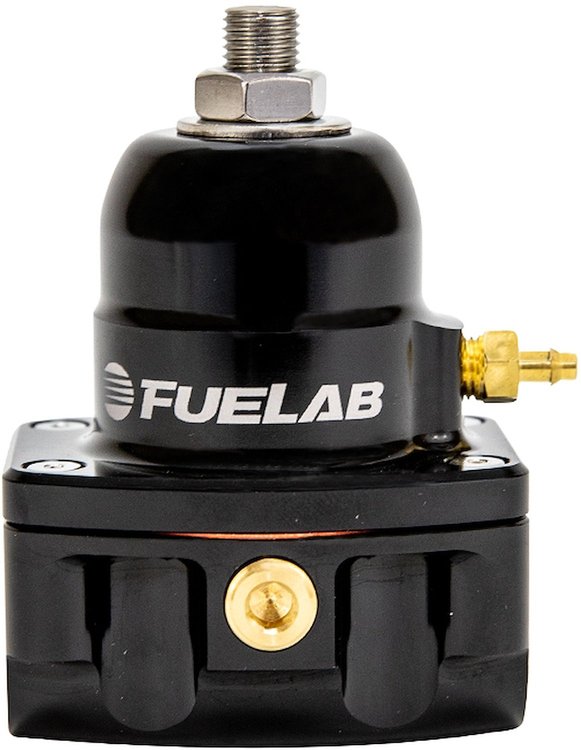

595 Series Ultralight Fuel Pressure Regulator [1-3 PSI]
$20430$227.00You Save$22.70
Ships Tomorrow
Lowest Price GuaranteeFuel Pressure Regulators
595 Series Ultralight Fuel Pressure RegulatorInlet Port: -8 AN (2) Return Port: -6 AN (1) Seat Size: Large Pressure Range: 1-3 PSI Compatible with Gasoline, Diesel, Methanol & Ethanol Black Finish
59503-1-L Features:
- Constructed from billet aluminum
- Lightweight: Weighs 30% less than 515/525 Series regulators
- Fuel pressure gauge port: 1/8 in. NPT
- Reference port: 1/16 in. NPT
- Accurately adjusted using a fine thread pitch screw
- Mounting bracket and hardware included
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Lightweight Fuel Pressure Regulators
Fuelab 595 Series Fuel Pressure Regulators bridge the gap between the 515/525 Series and the 565 Series units to meet the fuel demands of your weight-sensitive build. Offering precision pressure adjustments ranging from 1 psi to 125 psi, Fuelab ultralight bypass 595 regulators deliver solid performance with a lightweight billet aluminum construction and durable black anodized finish.
Part TypeFuel Pressure Regulator
Product LineFuelab 595 Series Fuel Pressure Regulators
BrandFUELAB
Package Height3.0
Package Width4.75
Package Length5.0
Weight1.0 PG
Part CategoryPerformance Parts
Regulator FinishBlack anodized
Inlet Size-8 AN
Regulator MaterialBillet aluminum
QuantitySold individually
Mounting Hardware IncludedYes
Boost/Vacuum Reference PortYes
RebuildableYes
Inlet AttachmentFemale Threads
Mounting Bracket IncludedYes
Gauge PortYes
Return Fitting Size-6 AN
Inlet Quantity2
Pressure Range (Psi)1-3
Part FitmentUniversal
Return AttachmentFemale Threads
Vendor Part Number59503-1-L
Package Qty1
Package TypeEA
