Vehicle Info NeededFUELTECHPART NUMBER: 382-2002110981

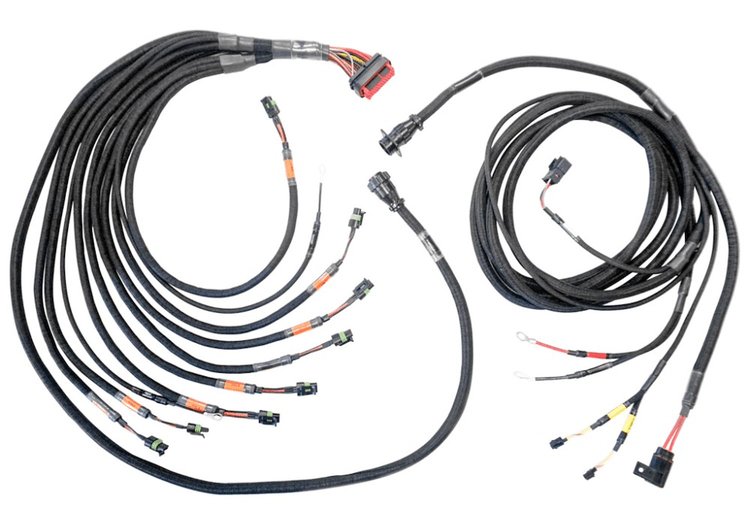

2002110981 PRO550/600 V8 CDI Module and Coils Harness [Ford]
$59900
Ships Tomorrow
Lowest Price GuaranteePRO550/PRO600 Expansion Harness
PRO550/600 V8 FTSpark-8 Expansion HarnessFTSpark-8 and CDI Racing Coil Harness for PRO550/PRO600 Ford Cylinder Numbering CPC Firewall Connection CAN Connection Output Connections Plug and Play Sold Individually
Fueltech 2002110981 PRO550/PRO600 V8 FTSpark-8 Harness is an auxiliary plug-and-play harness to allow the addition of an FTSpark-8 CDI Module and CDI Racing Coils to the PRO550 or PRO600 V8 Harness when using the FuelTech FT600 ECU
FuelTech 2002110981 Harness:
- V8 engines with 1,2,3,4, right bank and 5,6,7,8, left bank cylinder numbering
- For use with FTSpark-8 and CDI Racing Coils
- Plug-and-play with the PRO600 V8 Harness
- Uses the "B" output (gray wires) on the PRO600 V8 Harness
- Single wire serial BUS connection only works with FuelTech ECUs FT450 and above
- (10)-Way connector for connection to ECU
- CPC firewall connector
- Power and ground ring terminals for battery connection
Note: Harness will require modifications and 7 additional output wires when used with other manufacturers ECUs
Wiring Harnesses for Popular Engine Combinations, Boost Control, and Data-Logging
FuelTech has the correct wiring harness from plug-and-play to unterminated to complete your FuelTech ECU-equipped project.
Part TypeIgnition Wire Harness
Product LineFuelTech Wiring Harnesses
BrandFUELTECH
Part CategoryPerformance Parts
Wiring Harness IncludedYes
QuantitySold individually
Part FitmentSemi Universal
Package Qty1
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
