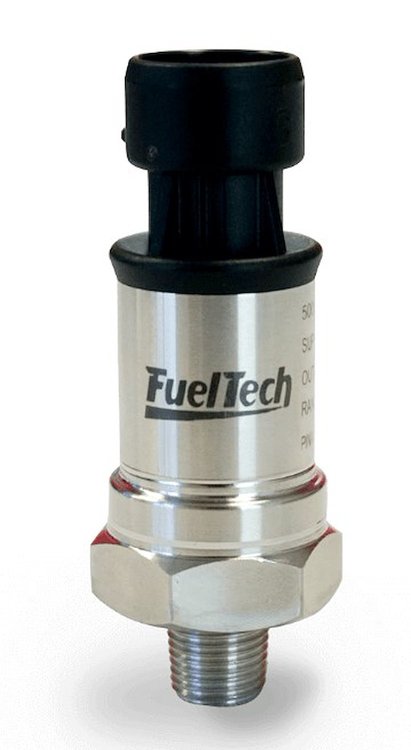

5005100744 10 Bar External MAP Sensor

Name: 5005100744 10 Bar External MAP Sensor
Brand: FUELTECH
SKU: 382-5005100744
Price: 175.00 USD
Availability: InStock

^$175⁰⁰

Ships on 11/04/2026

Lowest Price Guarantee

MAP Sensor

10 Bar External MAP Sensor

Range: -14.7 to +135.3 psi

Output: 0.5 to 4.5 volts

Supply Voltage 5 volts

Thread Size: 1/8 in. NPT

Harness Connector Not Included

Sold Individually

FuelTech 5005100744 External 10 Bar MAP Sensor:

Used when the manifold pressure has exceeded the limits of an internal MAP sensor
Reads -14.7 to +135.3 psi providing an accurate manifold pressure reading
Sends output voltage of 0.5 to 4.5 with a supply voltage of 5 volts
Connector pinout:
- A - Ground
- B - 5 volt
- C - Signal
Requires: External MAP sensor plug kit 382-5005100023 (sold separately)

Part TypeManifold Absolute Pressure (MAP) Sensor

BrandFUELTECH

Part CategoryPerformance Parts

Wiring Harness IncludedNo

Map Sensor Range (Psi)-14.7 to +135.3

Map Sensor Range (Bar)10 bar

QuantitySold individually

Part FitmentSemi Universal

Map Sensor StyleExternal

Package Qty1

Some parts are not legal for use in California or other states with similar laws / regulations
