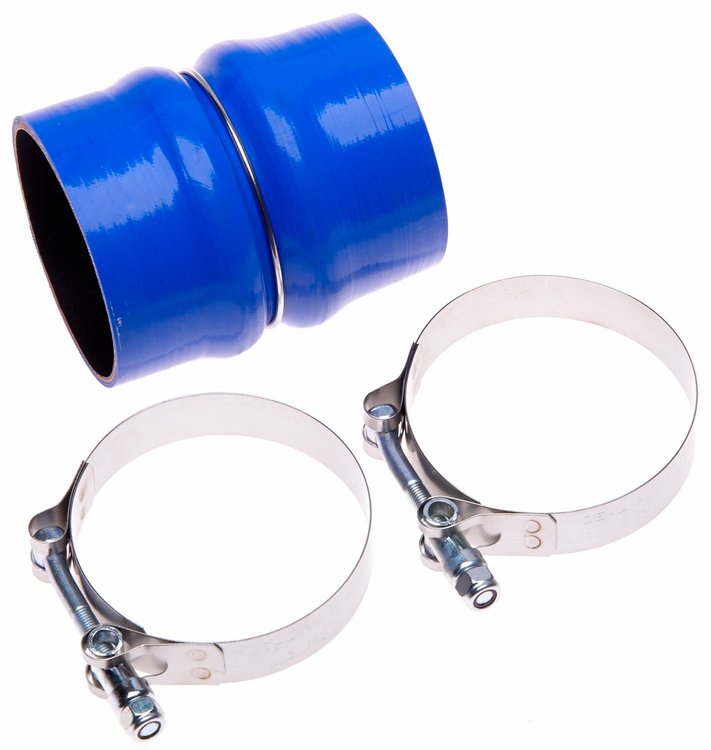

Molded Turbocharger Hose Kit for Select 1996-2009 Dodge, Sterling Truck and Blue Bird Applications
InfoVehicle Info Needed
GATESPART NUMBER: 465-26230

Molded Turbocharger Hose Kit for Select 1996-2009 Dodge, Sterling Truck and Blue Bird Applications

$11095
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Complete Turbocharger Hose Kit with T-Bolt Clamps
  • Fits Select 1996-2009 Dodge and Commercial Truck Applications
  • Multi-Layer Reinforcement Resists High Under-Hood Heat
  • Stainless Steel T-Bolt Clamps Resist Corrosion
  • Includes 1 Hose and 2 Clamps

    Factory turbocharger hoses see extreme heat and boost pressure, and the original clamps and rubber often fail together. The Gates 26230 hose kit replaces the entire connection at once with a superior alternative to the factory parts.

    Gates 26230 Turbocharger Hose Kit Details:

    • High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions.
    • Multiple layers of reinforcement increase durability for a longer service life.
    • Specially formulated oil-resistant fluoroelastomer liner prevents damage.
    • T-bolt clamps with a stainless steel band and bridge resist corrosion and provide higher torque for optimal sealing.
  • Part TypeIntercooler Hose
    BrandGATES
    Package Height3.0
    Package Width3.0
    Package Length4.25
    Weight0.64 PG
    Part CategoryReplacement Parts
    Clamp 1 - Band Width (Mm)19.1
    Clamp 1 - Clamping Range (Mm)79.5 - 87.4
    Centerline Length (Mm)102
    Clamp 1 - Nut Type.4375 in. Hex-Head w/ Nylon Insert
    Inside Diameter 1 (Mm)76
    Clamp 2 - Clamping Range (Mm)79.5 - 87.4
    Clamp 2 - Recommended Torque (In/Lbs)75
    Inside Diameter 2 (In)3
    Centerline Length (In)4.02
    Inside Diameter 1 (In)3
    PositionVarious - Application Specific
    Clamp 1 - Clamping Range (In)3.13 - 3.44
    Clamp 1 - Band Width (In).75
    Clamp 2 - Band Width (Mm)19.1
    Inside Diameter 2 (Mm)76
    Clamp 2 - Nut Type.4375 in. Hex-Head w/ Nylon Insert
    Clamp 2 - Band Width (In).75
    Contents1 Turbocharger Hose, 2 T-Bolt Clamps
    Oe Comparison RatingOE Improved
    Clamp 2 - Clamping Range (In)3.13 - 3.44
    Clamp 2 - Bolt Type.25 in. - 28 T-Bolt
    Clamp 1 - Recommended Torque (In/Lbs)75
    Part FitmentDirect Fit
    Clamp 1 - Bolt Type.25 in. - 28 T-Bolt
    Vendor Part Number26230
    Package Qty1
    Package TypeEA
