Vehicle Info NeededGATESPART NUMBER: 465-26232
Turbo Charger Hose Kits
$39559
1 left in stock
Ships on Sep 08, 2026
Lowest Price Guarantee- Turbo Charger Hose Kits
Emissions Note:
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntercooler Hose
BrandGATES
Package Width0.87
Weight0.87 PG
Part CategoryReplacement Parts
Clamp 1 - Band Width (Mm)19.1
Clamp 1 - Clamping Range (Mm)79.5 - 87.4
Centerline Length (Mm)151
Clamp 1 - Nut Type.4375" Hex-Head
Inside Diameter 1 (Mm)75
Clamp 2 - Clamping Range (Mm)95.3 - 103.1
Clamp 2 - Recommended Torque (In/Lbs)75
Inside Diameter 2 (In)3.62
Centerline Length (In)5.94
Inside Diameter 1 (In)2.95
PositionIntercooler to Pipe (Cold Side)
Clamp 1 - Clamping Range (In)3.125 - 3.4375
Clamp 1 - Band Width (In).75
Clamp 2 - Band Width (Mm)19.1
Inside Diameter 2 (Mm)92
Clamp 2 - Nut Type.4375" Hex-Head
Clamp 2 - Band Width (In).75

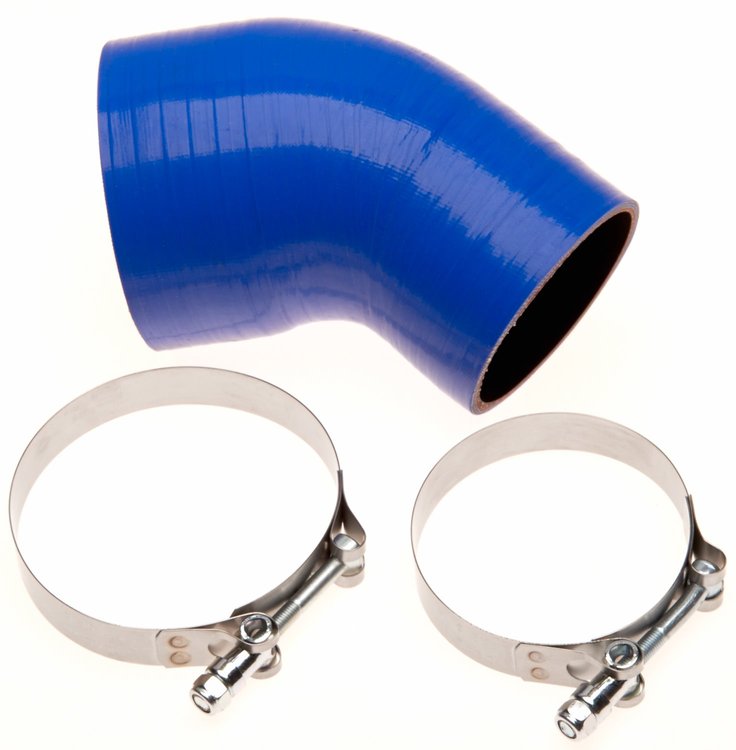

Contents1 Turbocharger Hose, 2 T-Bolt Clamps
Oe Comparison RatingOE Improved
Clamp 2 - Clamping Range (In)3.75 - 4.0625
Clamp 2 - Bolt Type.25" - 28 Male Pipe Thread
Clamp 1 - Recommended Torque (In/Lbs)75
Part FitmentDirect Fit
Clamp 1 - Bolt Type.25" - 28 Male Pipe Thread
Vendor Part Number26232
Package Qty1
Package TypeEA
