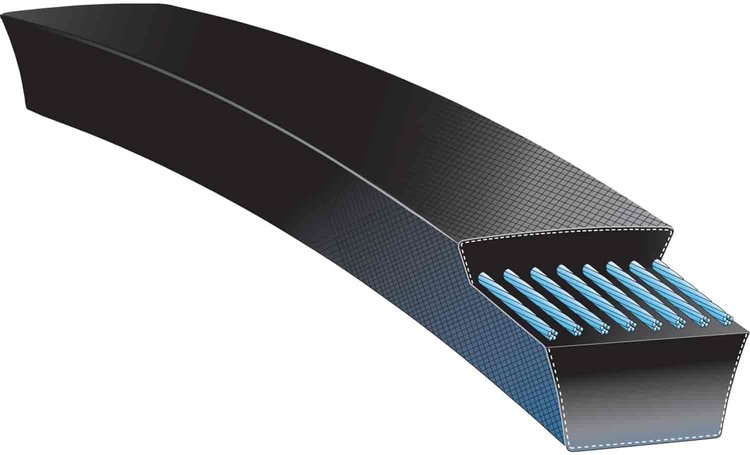

Truflex FHP V-Belt - 5L Section, 68 in. Outside Circumference
Light-duty V-belts stretch and glaze with age, causing slippage and squeal on fractional-horsepower equipment. The Gates 3680 Truflex belt restores smooth, quiet power transfer with minimal take-up.
Gates 3680 Truflex Belt Specs:
- Flex-bonded cords are forged to the belt body for equal load distribution and shock resistance.
- Proprietary Flex-Weave cover protects the belt core from oil, contaminants and heat for longer life.
- Meets RMA oil, heat-resistant and static conductivity standards.
- Runs with smooth, quiet operation on fractional horsepower motors and backside idler applications.
Superior Belts
Gates' TruFlex Belts feature superior length stability for minimal take-up requirements. Flex-Bonded Cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration. The Flex-Weave Cover is constructed for longer cover life, providing extended protection to the belt's core from oil, dirt, and heat. Gates Curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear, and increased belt life. Suitable for all light-duty industrial applications. Meets ARPM / RMA IP-3-2 and ARPM / RMA IP-3-3 requirements.
