Made in USA

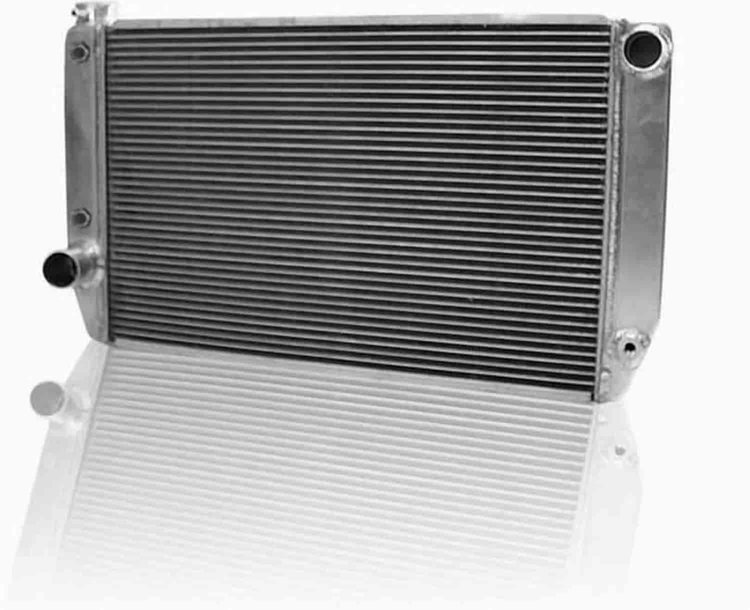

MegaCool Universal Fit Radiator Single Pass Crossflow Design 27.50" x 15.50" with Transmission Cooler
InfoVehicle Info Needed
GRIFFIN RADIATORSPART NUMBER: 475-1-56241-T

MegaCool Universal Fit Radiator Single Pass Crossflow Design 27.50" x 15.50" with Transmission Cooler

$47700
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Universal Electric Fan 16" Diameter

JEGS

Universal Electric Fan 16" Diameter

Part Number : 555-52133
$6499$71.99
You Save$7.00
Inline Radiator Hose Drain [1.750 in. O.D.]

JEGS

Inline Radiator Hose Drain [1.750 in. O.D.]

Part Number : 555-51156
$2099$23.99
You Save$3.00
16 lb Radiator Cap With JEGS Logo [Polished Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Polished Billet Aluminum]

Part Number : 555-51160
$3299$36.99
You Save$4.00
16 lb. Radiator Cap [Polished Billet Aluminum]

JEGS

16 lb. Radiator Cap [Polished Billet Aluminum]

Part Number : 555-51162
$2234$23.99
You Save$1.65

Single Pass
  • Top Passenger Inlet
  • Bottom Driver Outlet
    • MegaCool Universal Radiator
    • Single Pass Crossflow
    • 1.5" Passenger Inlet
    • 1.75" Driver Outlet
    • With Cooler
      Dimensions
    • Overall: 27.50" W x 15.50" H x 3" T
    • Core: 22.50" W x 15.50" H x 2.68" T

      Notes:

      • Overall Size (in): 27.50x15.50x3"
      • Core Size (in): 22.50x15.50x2.68"
      • Row Quantity: 2
      • Tube Size: 1.25(in)
      • Radiator Material: Lightweight Aluminum
      • Transmission Cooler: Yes
      • Transmission Cooler Fittings: 1/4" NPT
      • Inlet Location: Top Right
      • Outlet Location: Bottom Left
      • Inlet Size: 1.5 (in)
      • Outlet Size: 1.75(in)

      High-Performance Cooling

      Looking for a lightweight aluminum radiator but would like to avoid the cost of a direct fit radiator? Griffin MegaCool Universal fit radiators may just be the item for you! MegaCool radiators use oversize 1.250 inch wide tubes that offer an astounding 25 percent increase in cooling power. The added tube size is capable of cooling moderate to heavily modified engines for a variety of applications. By incorporating a design with open fin spacing, airflow will be enhanced and eliminate clogging for superior cooling. Griffin utilizes a vacuum brazing process to offer one of the toughest aluminum radiators on the market today. By producing the tubes, fins, headers, sidebands, tanks, and mounting brackets in house, every piece is performance-matched for optimum cooling with unsurpassed quality. Available in 4 different inlet and outlet locations with a wide variety of sizes to satisfy your cooling needs.

    Part TypeRadiator
    Product LineGriffin Radiator MegaCool Universal Fit Radiator
    BrandGRIFFIN RADIATORS
    Package Height8.5
    Package Width23.5
    Package Length35.5
    Weight20.0 PG
    Part CategoryPerformance Parts
    Part FitmentUniversal
    Vendor Part Number1-56241-T
    Package Qty1
    Package TypeEA
