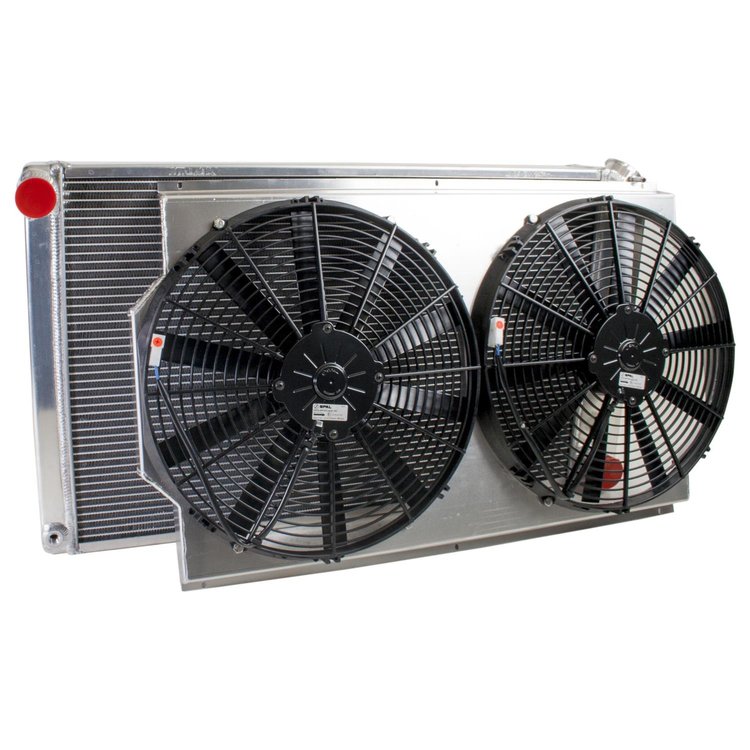

PerformanceFit Radiator ComboUnit for GM 1968-1977 A Body, 1978-1988 G Body, 1970-1981 F Body
InfoVehicle Info Needed
GRIFFIN RADIATORSPART NUMBER: 475-CU-00008

PerformanceFit Radiator ComboUnit for GM 1968-1977 A Body, 1978-1988 G Body, 1970-1981 F Body

$84000
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
Dex-Cool Antifreeze and Coolant GM # 12346290

ACDELCO

Dex-Cool Antifreeze and Coolant GM # 12346290

Part Number : 065-10-101
$3688
1/4" NPT Anti-Corrosion Plug

JEGS

1/4" NPT Anti-Corrosion Plug

Part Number : 555-51994
$1319$14.99
You Save$1.80
Round Recirculating/Overflow Tank/Catch Can Billet Aluminum

JEGS

Round Recirculating/Overflow Tank/Catch Can Billet Aluminum

Part Number : 555-51137
$14499$159.99
You Save$15.00

Manual Transmission Applications
ComboUnit
    PerformanceFit Radiator ComboUnit
  • 1968-1977 Chevelle
  • 1968-1974 GTO
  • 1970-1981 Camaro/Firebird
  • 1970-1988 Monte Carlo
  • Manual Transmission
  • Core Size: 28" x 19"
    Includes
  • Shroud, Fans, Cap, and Wiring

    Notes:
  • Overall Size (in): 33.25x18.62x6.42
  • Core Size (in): 28x19x2.68
  • Row Quantity: 2
  • Tube Size: 1.25(in)
  • Radiator Material: Lightweight Aluminum
  • Transmission Cooler: No
  • Inlet Location: Top Left
  • Outlet Location: Bottom Right
  • Inlet Size: 1.5(in)
  • Outlet Size: 1.75(in)
  • ComboUnit Includes: Shroud, Fan(s), Wiring, Temp Sensor, and Radiator Cap
  • Fan Size: Dual 16" 2596cfm

    High Performance Cooling

    Looking for a lightweight aluminum radiator without the hassle of making brackets to fit your application? Griffin PerformanceFit radiators may just be the item for you! Featuring an exclusive MegaCool core that features oversized 1.25 inch wide tubes that offer an astounding 25 percent increase in cooling power. The added tube size is capable of cooling moderate to heavily modified engines. Griffin also offers an option for LS swap vehicles that will make an LS transplant even easier. Carefully designed to work with various makes and models, in some cases the factory fan shroud will need modifications for correct fitment. Available as a ComboUnit package which includes a factory mounted high performance electric fan with a custom fit aluminum shroud.

    Show More

    Strength and Reliability

    The key to strength, durability, and performance comes from vacuum brazing. Vacuum brazing is a manufacturing process used to join all the components once assembled that requires the use of magnesium. Magnesium is found in aluminum alloys to give structural components strength when high strength is required. Griffin Thermal Products utilizes this process to offer one of the toughest aluminum radiators on the market today. By producing the tubes, fins, headers, side bands, tanks, and mounting brackets in house, every piece is performance matched for optimum cooling with unsurpassed quality.



Part TypeCooling Fan Kit
Product LineGriffin Radiator PerformanceFit Chevy/GM Car Aluminum Radiators
BrandGRIFFIN RADIATORS
Package Height10.5
Package Width25.5
Package Length40.0
Weight40.0 PG
Part CategoryPerformance Parts
Overall Thickness6.42 in,
Overall Height18.625 in (473.1 mm)
Inlet Size1.500 in.
Fan QuantityDual
Wiring IncludedYes
Radiator Cap IncludedYes
Radiator MaterialAluminum
Inlet LocationUpper passenger side
Inlet Size (In.)1.75
Core Height19 in (482.6 mm)
Core Thickness2.6875 in (68.26 mm)
Fan Diameter16 in (406.4 mm)
Core Width28 in (711.2 mm)
Row Quantity2
Outlet LocationLower driver side
Overall Width33.25 in (844.6 mm)
Cooler MaterialAluminum
Transmission CoolerNo
Part FitmentSemi Universal
Maximum Fan Cfm2148
Radiator StyleCrossflow
Vendor Part NumberCU-00008
Package Qty1
Package TypeEA
