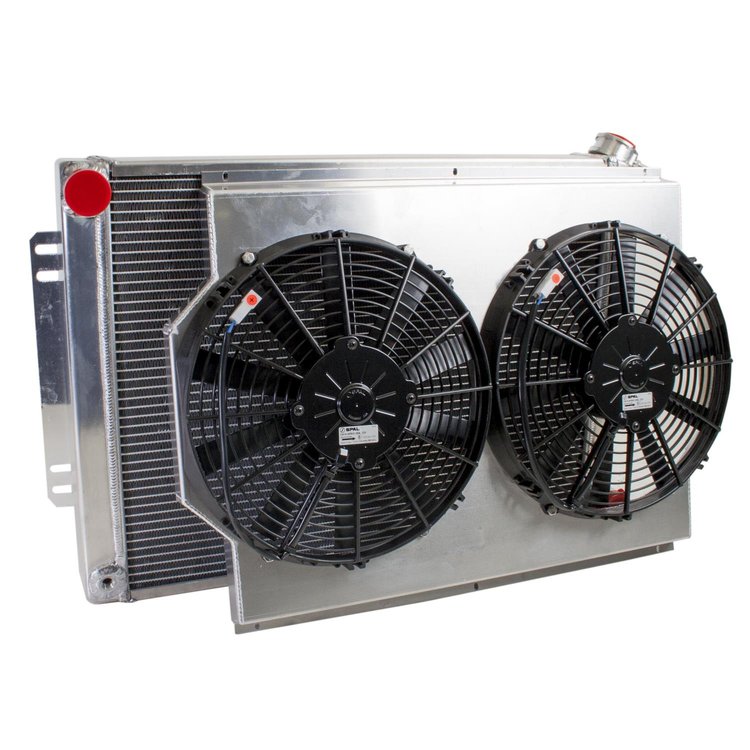

PerformanceFit Radiator ComboUnit for GM 1964-1967 A Body & 1967-1969 F Body

Vehicle Info Needed

GRIFFIN RADIATORSPART NUMBER: 475-CU-00009

PerformanceFit Radiator ComboUnit for GM 1964-1967 A Body & 1967-1969 F Body

Name: PerformanceFit Radiator ComboUnit for GM 1964-1967 A Body & 1967-1969 F Body
Brand: GRIFFIN RADIATORS
SKU: 475-CU-00009
Price: 831.00 USD
Availability: InStock

^$831⁰⁰

Ships on 09/15/2026

Lowest Price Guarantee

Manual Transmission Applications
ComboUnit

1964-1967 Chevelle
1967-1969 Camaro/Firebird
Core Size: 22.5" x 19"
Manual Transmission
Includes
Shroud, Fans, Cap, and Wiring

Notes:
Overall Size (in): 26.24x18.63x7.17
Core Size (in): 22.5x19x2.68
Row Quantity: 2
Tube Size: 1.25(in)
Radiator Material: Lightweight Aluminum
Transmission Cooler: No
Inlet Location: Top Left
Outlet Location: Bottom Right
Inlet Size: 1.5(in)
Outlet Size: 1.75(in)
ComboUnit Includes: Shroud, Fan(s), Wiring, Temp Sensor, and Radiator Cap
Fan Size: Dual 12" 1722cfm

Part TypeCooling Fan Kit

BrandGRIFFIN RADIATORS

Package Height10.6

Package Width25.5

Package Length39.25

Weight35.135 PG

Part CategoryPerformance Parts

Overall Thickness7.17

Overall Height18.625 in (473.1 mm)

Outlet Size1.75 in (44.5 mm)

Fan QuantityDual

Wiring IncludedYes

Radiator Cap IncludedYes

QuantitySold as a Combo

Inlet LocationUpper driver side

Inlet Size (In.)1.75

Core Height19 in (482.6 mm)

Core Thickness2.6875 in (68.26 mm)

Fan Diameter12

Core Width22.5 in (571.5 mm)

Row Quantity2

Outlet LocationLower passenger side

Overall Width26.24

Tube Size1.25 in (31.8 mm)

Part FitmentSemi Universal

Maximum Fan Cfm1734

Radiator StyleCrossflow

Vendor Part NumberCU-00009

Package Qty1

Package TypeEA
