Made in USA

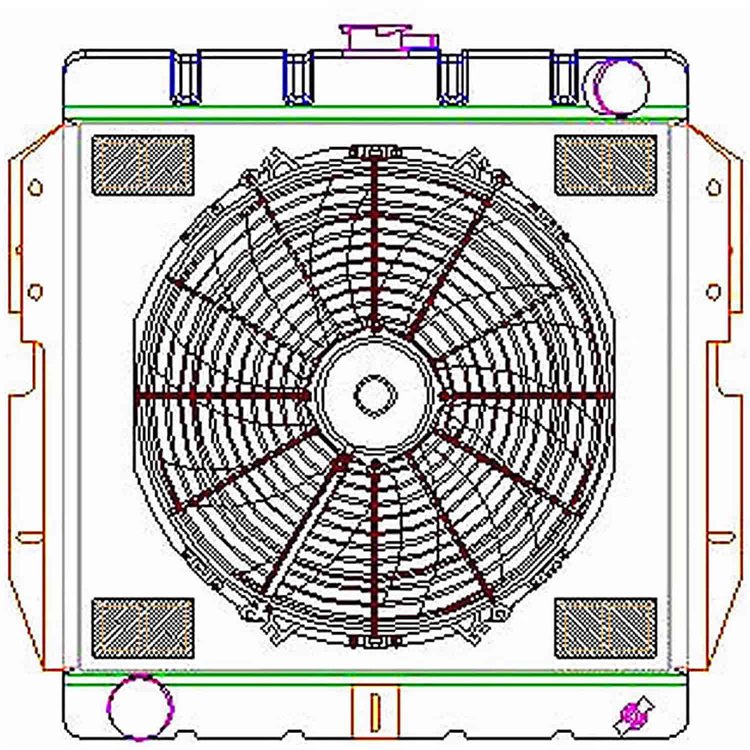

ExactFit Radiator ComboUnit for 1955-1957 Thunderbird with Early V8
InfoVehicle Info Needed
GRIFFIN RADIATORSPART NUMBER: 475-CU-00124

ExactFit Radiator ComboUnit for 1955-1957 Thunderbird with Early V8

$1,18800
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Round Recirculating/Overflow Tank/Catch Can [Billet Aluminum]

JEGS

Round Recirculating/Overflow Tank/Catch Can [Billet Aluminum]

Part Number : 555-51136
$6099$66.99
You Save$6.00
Round Recirculating/Overflow Tank/Catch Can Billet Aluminum

JEGS

Round Recirculating/Overflow Tank/Catch Can Billet Aluminum

Part Number : 555-51137
$14499$159.99
You Save$15.00
Round Recirculating Overflow Catch Can Tank [Billet Aluminum]

JEGS

Round Recirculating Overflow Catch Can Tank [Billet Aluminum]

Part Number : 555-51135
$8999$98.99
You Save$9.00
1/4" NPT Anti-Corrosion Plug

JEGS

1/4" NPT Anti-Corrosion Plug

Part Number : 555-51994
$1319$14.99
You Save$1.80

Manual Transmission Applications
  • ComboUnit
    • ExactFit Radiator ComboUnit
    • 1955-1957 Thunderbird
    • Early V8
    • Core Size: 18" x 20.25"
    • Manual Transmission
      Includes
    • Shroud, Fans, Cap, and Wiring

      Notes:

      • Total Thickness: 5.7"
      • Core Size (in): 18x20.25x2.68
      • Row Quantity: 2
      • Tube Size: 1.25(in)
      • Radiator Material: Lightweight Aluminum
      • Transmission Cooler: No
      • Inlet Location: Top Right
      • Outlet Location: Bottom Left
      • Inlet Size: 1.75(in)
      • Outlet Size: 2.00(in)
      • ComboUnit Includes: Shroud, Fan(s), Wiring, Temp Sensor, and Radiator Cap
      • Fan Size: Single 16" 1298cfm

    High Performance Cooling

    Looking for a high performance aluminum radiator that fits just like the stock radiator? Griffin ExactFit radiators may just be the item for you! They offer all of the required mounting tabs, brackets, and spuds to ensure a painless installation without any cutting or bending. Featuring an exclusive MegaCool core that houses 2 rows of 1.25 inch wide tubes or the ExtremeCool core with 1 row of 1.50 inch tubes. The wider tube widths used in this product line create a greater amount of surface area in the same amount of space. This allows the product to exceed the performance of common radiators with two row 1.00 inch tube wide tubes. With a double focus on precision and performance, Griffin has made a quality radiator to install easily and make sure your hot rod will stay cool.

    Show More

    Strength and Reliability

    The key to strength, durability, and performance comes from vacuum brazing. Vacuum brazing is a manufacturing process used to join all the components once assembled that requires the use of magnesium. Magnesium is found in aluminum alloys to give structural components strength when high strength is required. Griffin Thermal Products utilizes this process to offer one of the toughest aluminum radiators on the market today. By producing the tubes, fins, headers, side bands, tanks, and mounting brackets in house, every piece is performance matched for optimum cooling with unsurpassed quality.

    • Available ComboUnit package includes a factory mounted high performance electric fan with a custom fit aluminum shroud.

    Part TypeCooling Fan Kit
    Product LineGriffin Radiator ExactFit Ford/Lincoln/Mercury Car Aluminum Radiators
    BrandGRIFFIN RADIATORS
    Package Height8.5
    Package Width28.0
    Package Length31.0
    Weight30.0 PG
    Part CategoryPerformance Parts
    Part FitmentDirect Fit
    Vendor Part NumberCU-00124
    Package Qty1
    Package TypeEA
