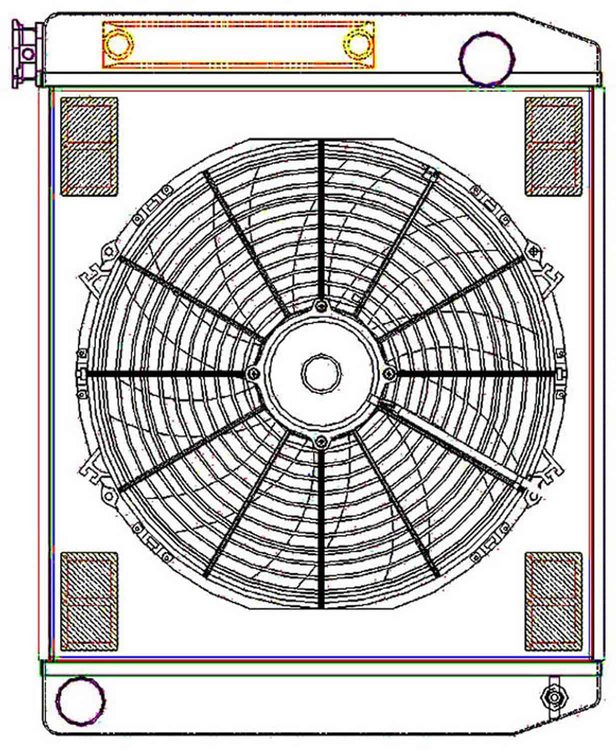

ClassicCool ComboUnit Universal Fit Radiator and Fan Single Pass Crossflow Design 24" x 19" with Transmission Cooler

Name: ClassicCool ComboUnit Universal Fit Radiator and Fan Single Pass Crossflow Design 24" x 19" with Transmission Cooler
Brand: GRIFFIN RADIATORS
SKU: 475-CU-25202-TS
Price: 586.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Single Pass
Top Driver Inlet

Bottom Passenger Outlet

Single Pass Crossflow
16" Fan
1.5" Driver Inlet
1.75" Straight Passenger Outlet
With Cooler
Dimensions
Overall: 24" W x 19" H x 5.3" T
Core: 19" W x 19" H x 2.25" T

Notes:
- Overall Size (in): 24x19x5.3125"
- Core Size (in): 19x19x2.25"
- Row Quantity: 2
- Tube Size: 1(in)
- Radiator Material: Lightweight Aluminum
- Transmission Cooler: Yes
- Transmission Cooler Fittings: 1/4" NPT
- Inlet Location: Top Left
- Outlet Location: Bottom Right
- Inlet Size: 1.5(in)
- Outlet Size: 1.75(in) Straight
- Fan Size: Single 16" 1298cfm
- Does not include wiring harness or relay

High Performance Cooling

Looking for an aluminum radiator and fan module but would like to avoid the cost of a direct fit radiator? Griffin ClassicCool Universal fit ComboUnit may just be the item for you! ClassicCool radiators have 1.00 inch wide tubes that are designed to cool mildly modified engines. The ComboUnit will include electric fan and a custom fan shroud. Available in 4 different inlet and outlet locations with a wide variety of sizes to satisfy your cooling needs.

Strength and Reliability

The key to strength, durability, and performance comes from vacuum brazing. Vacuum brazing is a manufacturing process used to join all the components once assembled that requires the use of magnesium. Magnesium is found in aluminum alloys to give structural components strength when high strength is required. Griffin Thermal Products utilizes this process to offer one of the toughest aluminum radiators on the market today. By producing the tubes, fins, headers, side bands, tanks, and mounting brackets in house, every piece is performance matched for optimum cooling with unsurpassed quality.
