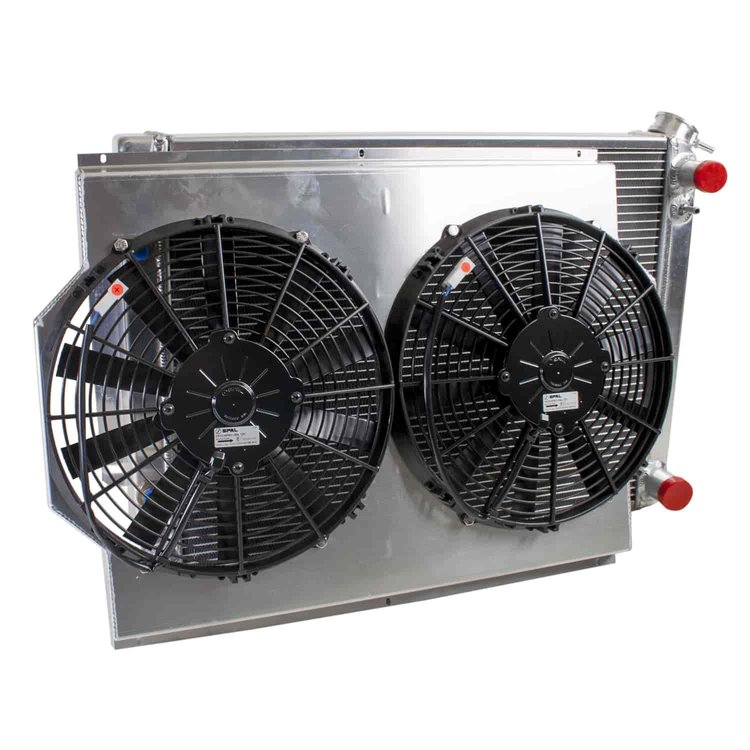

PerformanceFit Radiator ComboUnit for GM 1964-1967 A Body & 1967-1969 F Body with Transmission Cooler

Vehicle Info Needed

GRIFFIN RADIATORSPART NUMBER: 475-CU-70009-LS

PerformanceFit Radiator ComboUnit for GM 1964-1967 A Body & 1967-1969 F Body with Transmission Cooler

Name: PerformanceFit Radiator ComboUnit for GM 1964-1967 A Body & 1967-1969 F Body with Transmission Cooler
Brand: GRIFFIN RADIATORS
SKU: 475-CU-70009-LS
Price: 960.00 USD
Availability: InStock

^$960⁰⁰

2 left in stock

Ships Tomorrow

Lowest Price Guarantee

Automatic Transmission Applications
ComboUnit

LS Swap
1964-1967 Chevelle
1967-1969 Camaro/Firebird
Core Size: 22.5" x 19"
Automatic Transmission
Includes
Shroud, Fans, Cap, and Wiring

Notes:
- Overall Size (in): 26.24x18.63x7.17
- Core Size (in): 22.5x19x2.68
- Row Quantity: 2
- Tube Size: 1.25(in)
- Radiator Material: Lightweight Aluminum
- Transmission Cooler: Yes
- Cooler Fittings: 1/4" NPT
- Inlet Location: Top Left
- Outlet Location: Bottom Right
- Inlet Size: 1.25(in)
- Outlet Size: 1.5(in)
- ComboUnit Includes: Shroud, Fan(s), Wiring, Temp Sensor, and Radiator Cap
- Fan Size: Dual 12" 1722cfm

Part TypeCooling Fan Kit

BrandGRIFFIN RADIATORS

Package Height8.4

Package Width22.8

Package Length32.5

Weight37.3 PG

Part CategoryPerformance Parts

Overall Thickness7.17

Overall Height18.625 in (473.1 mm)

Wiring IncludedYes

Radiator Cap IncludedYes

Shroud MaterialAluminum

Inlet LocationUpper passenger side

Inlet Size (In.)1.25

Core Width22.5 in (571.5 mm)

Row Quantity2

Overall Width26.24

Tube Size1.25 in (31.8 mm)

Radiator FinishNatural

Maximum Fan Cfm1734

Shroud ColorNatural

Radiator StyleCrossflow

Outlet Size1.5 in (38.1 mm)

Fan QuantityDual

Radiator MaterialAluminum

QuantitySold as a Combo

Core Height19 in (482.6 mm)

Core Thickness2.6875 in (68.26 mm)

Fan Diameter12

Outlet LocationLower passenger side

Fan IncludedYes

Part FitmentSemi Universal

Vendor Part NumberCU-70009-LS

Package Qty1

Package TypeEA
