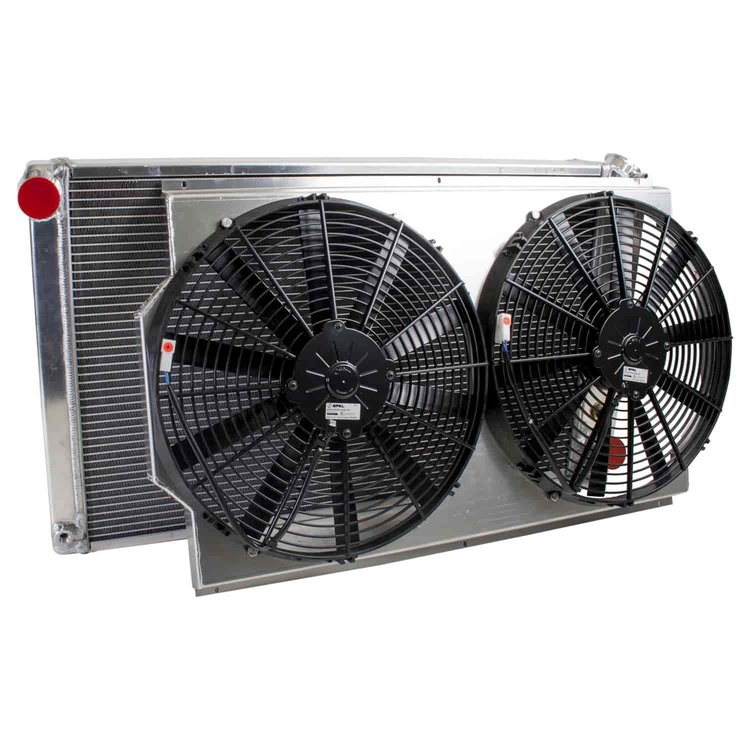

PerformanceFit Radiator Combo Unit for 1967-1991 Chevy/GMC C/K Series Truck/Blazer/Suburban with Transmission Cooler
InfoVehicle Info Needed
GRIFFIN RADIATORSPART NUMBER: 475-CU-70013

PerformanceFit Radiator Combo Unit for 1967-1991 Chevy/GMC C/K Series Truck/Blazer/Suburban with Transmission Cooler

$87400
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Racing Coolant and Antifreeze with LP-3 [1 Gallon]

JEGS

Racing Coolant and Antifreeze with LP-3 [1 Gallon]

Part Number : 555-72316
$2526$36.99
You Save$11.73
Racing Super Coolant Additive [16 oz.]

JEGS

Racing Super Coolant Additive [16 oz.]

Part Number : 555-72324
$1199$13.89
You Save$1.90
Stainless Steel Hose Clamps 1 1/4 in. to 2 in. OD

JEGS

Stainless Steel Hose Clamps 1 1/4 in. to 2 in. OD

Part Number : 555-16055
$399$4.99
You Save$1.00
Universal Urethane Radiator Mounting Pads

JEGS

Universal Urethane Radiator Mounting Pads

Part Number : 555-52077
$1739$18.89
You Save$1.50

Automatic Transmission Applications
ComboUnit
Performance Fit Radiator Combo Unit
  • 1967-1987 Chevy/GMC C & K Series Truck
  • 1967-1991 Full Size Blazer/Jimmy/Suburban
  • Automatic Transmission
  • Includes
    • Shroud
    • Dual Fans
    • Radiator Cap
    • Wiring Harness

      Griffin CU-70013 PerformanceFit Radiator Features:

      • Modern Crossflow Design
      • MegaCool Core
      • Cools Up To 1000 HP
      • Light Weight All Aluminum Construction
      • Fully Welded
      • Overall Size (in): 33.25 in. x 18.63 in. x 6.49 in.
      • Core Size (in): 28 in. x 19 in. x 2.68 in.
      • Row Quantity: 2
      • Tube Size: 1.25 in.
      • Transmission Cooler: Yes
      • Transmission Cooler Fittings: 5/16 in. Inverted Flare
      • Inlet Location: Top Left/Driver Side
      • Outlet Location: Bottom Right/Passenger
      • Inlet Size: 1.5 in.
      • Outlet Size: 1.75 in.
      • Fan Size: Dual 16 in. Diameter, 2,158 cfm
      • Combo Unit Includes: Radiator, Shroud, Dual Fans, Wiring Harness, Temp Sensor, and Radiator Cap
    • High Performance Cooling

      Looking for a lightweight aluminum radiator without the hassle of making brackets to fit your application? Griffin PerformanceFit radiators may just be the item for you! Featuring an exclusive MegaCool core that features oversized 1.25 inch wide tubes that offer an astounding 25 percent increase in cooling power. The added tube size is capable of cooling moderate to heavily modified engines. Griffin also offers an option for LS swap vehicles that will make an LS transplant even easier.

      Show MorePCarefully designed to work with various makes and models, in some cases the factory fan shroud will need modifications for correct fitment. Available as a ComboUnit package which includes a factory mounted high performance electric fan with a custom fit aluminum shroud.

      Strength and Reliability

      The key to strength, durability, and performance comes from vacuum brazing. Vacuum brazing is a manufacturing process used to join all the components once assembled that requires the use of magnesium. Magnesium is found in aluminum alloys to give structural components strength when high strength is required. Griffin Thermal Products utilizes this process to offer one of the toughest aluminum radiators on the market today. By producing the tubes, fins, headers, side bands, tanks, and mounting brackets in house, every piece is performance matched for optimum cooling with unsurpassed quality.

    Part TypeCooling Fan Kit
    Product LineGriffin Radiator PerformanceFit Chevrolet/GMC Truck Aluminum Radiators
    BrandGRIFFIN RADIATORS
    Package Height9.0
    Package Width26.0
    Package Length42.0
    Weight43.1 PG
    Part CategoryPerformance Parts
    Overall Thickness6.49 in (164.846 mm)
    Overall Height18.625 in (473.1 mm)
    Inlet Size1.500 in.
    Wiring IncludedYes
    Radiator Cap IncludedYes
    Shroud MaterialAluminum
    Inlet LocationUpper driver side
    Core Width28 in (711.2 mm)
    Row Quantity2
    Overall Width33.25 in (844.6 mm)
    Tube Size1.25 in (31.8 mm)
    Radiator FinishSemi-Polished
    Transmission CoolerYes
    Maximum Fan Cfm2,158 cfm
    Shroud ColorSemi-Polished
    Radiator StyleCrossflow
    Blade MaterialPlastic
    Outlet Size1.75 in (44.5 mm)
    Fan QuantityDual
    Radiator MaterialAluminum
    QuantitySold as a Combo
    Core Height19 in (482.6 mm)
    Core Thickness2.6875 in (68.26 mm)
    Fan Diameter16 in (406.4 mm)
    Blade ColorBlack
    Outlet LocationLower passenger side
    Fan IncludedYes
    Part FitmentSemi Universal
    Vendor Part NumberCU-70013
    Package Qty1
    Package TypeEA
