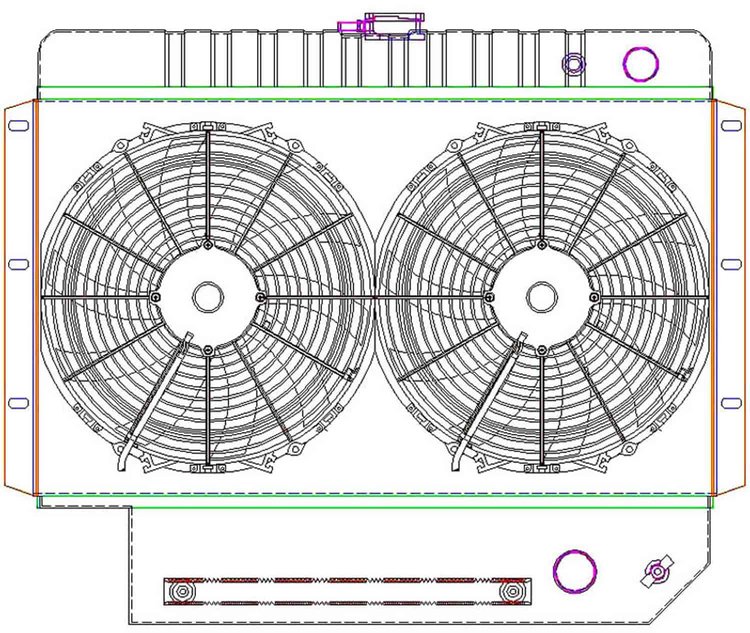

PerformanceFit Radiator ComboUnit for 1959-1963 Chevy Impala LS Swap with Steering Box Knock out & Transmission Cooler
InfoVehicle Info Needed
GRIFFIN RADIATORSPART NUMBER: 475-CU-70204

PerformanceFit Radiator ComboUnit for 1959-1963 Chevy Impala LS Swap with Steering Box Knock out & Transmission Cooler

$1,41900
ShippingShips on 09/17/2026
Lowest PriceLowest Price Guarantee

Automatic Transmission Applications
ComboUnit
    PerformanceFit Radiator ComboUnit
  • 1959-1963 Impala
  • LS Swap
  • Drive Side Lower Knockout
  • Core Size: 15" x 25.5"
  • Automatic Transmission
    Includes
  • Shroud, Fans, Cap, and Wiring

    Notes:

    • Driver Side Lower Knockout for Aftermarket Steering Box
    • Combo Thickness: 5.78"
    • Core Size (in): 15x25.5x2.68
    • Row Quantity: 2
    • Tube Size: 1.25(in)
    • Radiator Material: Lightweight Aluminum
    • Transmission Cooler: Yes
    • Cooler Fittings: 1/4" NPT
    • Inlet Location: Top Right
    • Outlet Location: Bottom Right
    • Inlet Size: 1.25(in)
    • Outlet Size: 1.5(in)
    • ComboUnit Includes: Shroud, Fan(s), Wiring, Temp Sensor, and Radiator Cap
    • Fan Size: Dual 12" 1722cfm
Part TypeCooling Fan Kit
BrandGRIFFIN RADIATORS
Package Height17.0
Package Width29.0
Package Length36.0
Weight35.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCU-70204
Package Qty1
Package TypeEA
No Questions
No Reviews
