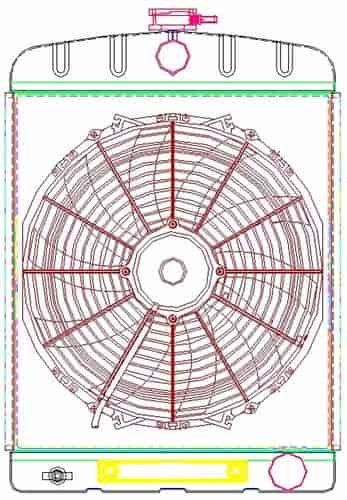

Universal Street Rod Radiator ComboUnit 16" x 22" with Transmission Cooler
InfoVehicle Info Needed
GRIFFIN RADIATORSPART NUMBER: 475-CU-70214

Universal Street Rod Radiator ComboUnit 16" x 22" with Transmission Cooler

$60200
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Chevy/GM Style
  • ComboUnit
      • Universal Street Rod Radiator ComboUnit
    • Downflow
    • 14" Fan
    • 1.5" Center Inlet
    • 1.75" Passenger Outlet
    • With Cooler
      Dimensions
    • Overall: 16" W x 22" H x 5.46" T
    • Core: 15.50" W x 17" H x 2.68" T

      Notes:

      • Overall Size (in): 16x22x5.46"
      • Core Size (in): 15.50x17x2.68"
      • Row Quantity: 2
      • Tube Size: 1.25(in) MegaCool
      • Radiator Material: Lightweight Aluminum
      • Transmission Cooler: Yes
      • Cooler Fittings: 1/8" NPT
      • Inlet Location: Top Center
      • Outlet Location: Bottom Right
      • Inlet Size: 1.5(in)
      • Outlet Size: 1.75(in)
      • Fan Size: Single 14" 1038cfm
      • ComboUnit Includes: Radiator, Fan, and Aluminum Shroud
      • Does not include radiator cap, wiring harness, and relay
    Part TypeCooling Fan Kit
    BrandGRIFFIN RADIATORS
    Package Height8.5
    Package Width23.5
    Package Length35.5
    Weight20.0 PG
    Part CategoryPerformance Parts
    Part FitmentUniversal
    Vendor Part NumberCU-70214
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
