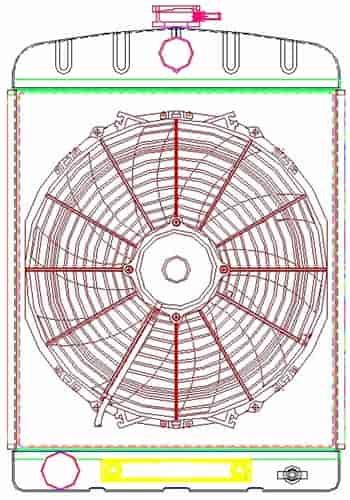

Universal Street Rod Radiator ComboUnit 16" x 22" with Transmission Cooler

Name: Universal Street Rod Radiator ComboUnit 16" x 22" with Transmission Cooler
Brand: GRIFFIN RADIATORS
SKU: 475-CU-70215
Price: 602.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford/Chrysler Style

ComboUnit

Downflow
14" Fan
1.5" Center Inlet
1.75" Driver Outlet
With Cooler
Dimensions
Overall: 16" W x 22" H x 5.48" T
Core: 15.50" W x 22" H x 2.68" T

Notes:
- Overall Size (in): 16x22x5.46"
- Core Size (in): 15.5x17x2.68"
- Row Quantity: 2
- Tube Size: 1.25(in) MegaCool
- Radiator Material: Lightweight Aluminum
- Transmission Cooler: Yes
- Cooler Fittings: 1/8" NPT
- Inlet Location: Top Center
- Outlet Location: Bottom Left
- Inlet Size: 1.5(in)
- Outlet Size: 1.75(in)
- Fan Size: Single 14" 1098cfm
- ComboUnit Includes: Radiator, Fan, and Aluminum Shroud
- Does not include radiator cap, wiring harness, and relay

High Performance Cooling

Looking for a lightweight aluminum radiator but would like to avoid the cost of a direct fit radiator? Griffin MegaCool Universal fit radiators may just be the item for you! Featuring an exclusive MegaCool core that houses 2 rows of 1.25 inch wide tubes or the ExtremeCool core with 1 row of 1.50 inch tubes. The wider tube widths used in this product line create a greater amount of surface area in the same amount of space. This allows the product to exceed the performance of common radiators with two row 1.00 inch tube wide tubes. With a double focus on precision and performance, Griffin has made a quality radiator to install easily and make sure your hot rod will stay cool.

Strength and Reliability

The key to strength, durability, and performance comes from vacuum brazing. Vacuum brazing is a manufacturing process used to join all the components once assembled that requires the use of magnesium. Magnesium is found in aluminum alloys to give structural components strength when high strength is required. Griffin Thermal Products utilizes this process to offer one of the toughest aluminum radiators on the market today. By producing the tubes, fins, headers, side bands, tanks, and mounting brackets in house, every piece is performance matched for optimum cooling with unsurpassed quality.
