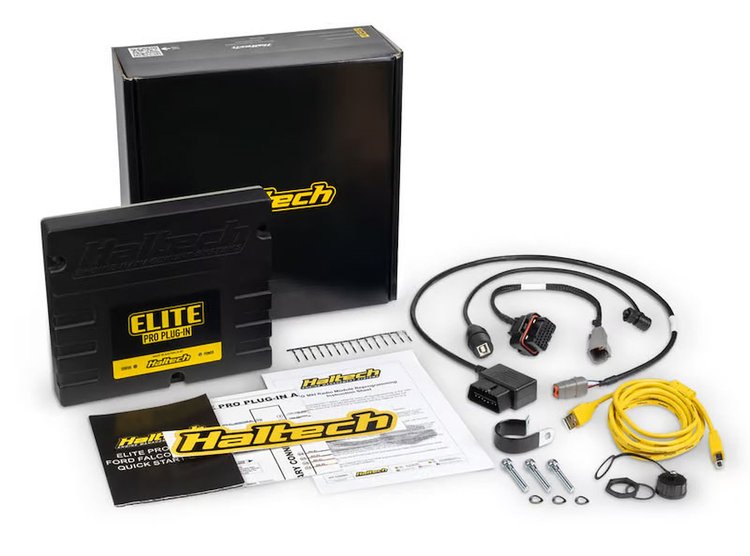

HT-154000 Elite PRO Direct Plug-in ECU Only, Ford Falcon i6-Barra
InfoVehicle Info Needed
HALTECHPART NUMBER: 484-HT-154000

HT-154000 Elite PRO Direct Plug-in ECU Only, Ford Falcon i6-Barra

$2,72500
ShippingShips on 11/30/2026
Lowest PriceLowest Price Guarantee

Items You Need

Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
10799 Contact Cleaner, Non-Chlorinated

LUCAS OIL

10799 Contact Cleaner, Non-Chlorinated

Part Number : 639-10799
$1017$10.99
You Save$0.82
Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

JEGS

Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

Part Number : 555-65010
$839$16.99
You Save$8.60
Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00

    Elite PRO Direct Plug-in ECU Only
  • Ford Falcon i6-Barra

    Haltech HT-154000 Features:

    Haltech's new Elite Pro Plug-in ECU offers a true Plug'n'Play upgrade option for the popular Ford Falcon BA and BF models. No messy and time-consuming re-wiring required - the Elite Pro Plug-in connects directly to the factory wiring harness and fits perfectly in the factory ECU location. With an on-board wideband controller and sophisticated race functions the Elite Pro Plug-in is one of Haltech's most advanced ECUs to date. Apart from performance-oriented features like closed loop boost control, anti-lag and launch control, short and long term learning for fuel, ignition, boost and idle, the new Elite Pro Plug-in also controls all factory functions including variable cam control, cruise control, dash cluster and even the 6-speed automatic transmission

  • Die cast aluminium, water resistant case
  • On-board automatic transmission control via CAN (ZF 6HP26)
  • E85 Flex Fuel ready
  • Multi-fuel support. Petrol, Methanol and Ethanol
  • Internal single channel wideband (supports LSU4.9 sensor)
  • Variable cam control
  • Cruise control
  • OBDII compatible. Set and clear diagnostic trouble codes, view live engine data
  • Short and long term fuel, ignition, boost and idle control learning
  • Knock control with high speed digital filtering
  • Closed loop boost control. Tune by gear, wheel speed or time
  • Closed loop idle control with learning for consistent idle stability
  • Closed loop 02 control
  • Anti-lag and launch control with drag and rally modes
  • Multi level engine protection
  • ESP calibration software. Intuitive and easy to use, ESP offers limitless tuning flexibility. Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections
  • ECU OUTPUTS
  • 6 x current controlled injector drivers (OEM). High or Low impedance injector compatible
  • 8 x additional injector outputs available for staged injection, unused staged injector outputs are available to be used as generic programmable DPOs
  • 6 x ignition outputs to support OEM Ford coils directly
  • Digital pulsed outputs - as per OEM
  • Drive By Wire (DBW) output suits any throttle body and pedal including Ford OEM
  • ECU INPUTS
  • Analogue voltage inputs (AVI): as per OEM
  • 4 x additional user definable AVIs available on the auxiliary connector
  • Digital pulsed inputs (DPI): as per OEM
  • 4 x additional user definable DPIs used for measuring duty cycle, frequency or state
  • Engine position inputs: as per OEM. Supports Ford Barra trigger pattern. Alternate generic trigger support also available
  • Knock inputs: as per OEM
  • ECU COMMUNICATION
  • 2 x CAN bus communication
  • - Haltech CAN (via auxiliary connector)
  • - Vehicle CAN
  • 1 x Circular mini connector for USB programming
  • ECU DATA LOGGING
  • On-board data logging. Up to 40 channels
  • 2MB internal storage.
  • Elite PRO Direct Plug-in Ford Falcon i6 Barra - ECU Only, Suits: BA, BF and FG Manual Transmission and BF + FG Automatic Transmission (6 Speed ZF automatic transmission).

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Direct Plug-in ECU For Ford Falcon I6 "Barra"

    Haltech's new Elite Pro Plug-in ECU Kits offer a true Plug-n-Play upgrade option for the popular Ford Falcon BA and BF models. Easy installation and time-consuming re-wiring are required. The Elite Pro Plug-in connects directly to the factory Ford wiring harness and fits directly into the factory ECU location. This ECU includes an onboard wideband controller and sophisticated race functions and is one of Haltech's most advanced ECUs. Features closed loop boost control, anti-lag, and launch control, short and long-term learning for fuel, ignition, boost, and idle, and also controls all factory functions' including variable cam control, cruise control, dash cluster, and even the 6-speed automatic transmission.

Part TypeThrottle Delay Eliminator
Product LineHaltech Elite Pro Plug-in ECU Kits
BrandHALTECH
Package Height1.5
Package Width5.0
Package Length8.0
Weight0.05 PG
Part CategoryPerformance Parts
Vendor Part NumberHT-154000
Package Qty1
Package TypeEA
