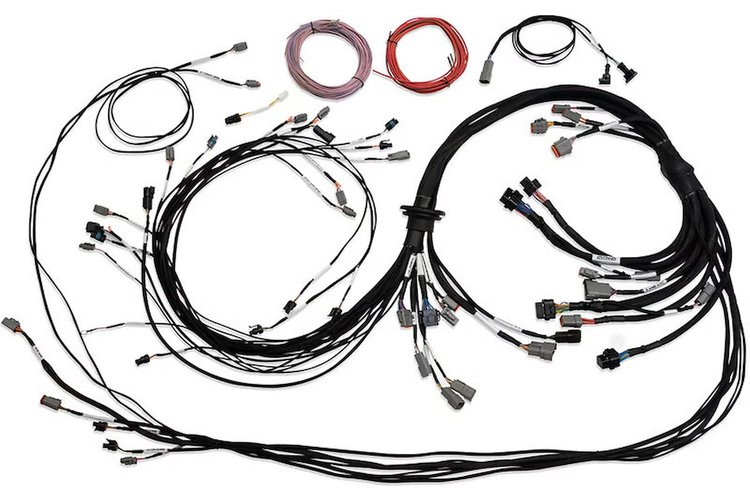

HT-186200 Universal V8 Terminated Engine Harness, Gor Nexus R5 VCU

Name: HT-186200 Universal V8 Terminated Engine Harness, Gor Nexus R5 VCU
Brand: HALTECH
SKU: 484-HT-186200
Price: 935.00 USD
Availability: InStock

^$935⁰⁰

Ships on 09/15/2026

Lowest Price Guarantee

Gor Nexus R5 VCU

Haltech HT-186200 Features:
Terminated Engine Harness connects directly to the Nexus R5 VCU and supports most popular big block and small block V8 engines from GM, Ford and Chrysler
Harness requires Injection, Ignition and alternator Sub Harnesses - Sold seperately
Injector breakouts
HT-186000 V8 Primary Injector EV1
HT-186001 V8 Secondary Injector EV1
HT-186002 V8 Primary Injector USCAR
HT-186003 V8 Secondary Injector USCAR
Ignition breakouts
HT-186060 Nexus V8 GM/Chrysler IGN1A
HT-186061 Nexus V8 Ford IGN1A
Alternator breakouts
HT-186123 GM LS 2-Pin Bosch Alternator Harness
HT-186124 GM LS 4-Pin Delco Alternator Harness
HT-186125 GM LS 2-Pin Yazaki Alternator Harness
HARNESS FEATURES
Haltech Nexus R5 VCU connectors
Terminated engine bay and in-cabin connections
Connection to Haltech CAN devices (eg dash displays, keypads, etc.)
Connection to sensors (eg crank, cam, MAP, temperature, pressure, position, speed, flex fuel)
Dual Wideband Lambda sensor allocation
Breakout connection to 8 ignition coils
Breakout connection to 8 primary injectors
8 secondary injectors and 2 tertiary injectors
Breakout connection for alternator control
Starter solenoid control
Dual boost control solenoid allocation
Breakout connection for thermofan and fuel pump control
Breakout connection for transmission control
Spare inputs and outputs
Spare high current 8 Amp PDM outputs
Spare HBO (Half Bridge Output)
Universal V8 Terminated Engine Harness for Nexus R5 VCU - Suits Ford/GM/Chrysler. Does not include, Ignition, injection and alternator adaptor harnesses sold seperately. Adaptor Harnesses (Sold Separately) Ignition Harnesses *HT-186061- Nexus V8 Ford IGN1A Ignition Harness *HT-186060 - Nexus V8 GM IGN1A Ignition Harness Injector Harnesses *HT-186000 - Nexus V8 Junior Timer (EV1) Primary Injector Breakout *HT-186002 - Nexus V8 GT150 (USCAR) Injector Primary Breakout *HT-186001 - Nexus V8 Junior Timer (EV1) Secondary Injector Breakout *HT-186003 - Nexus V8 GT150 (USCAR) Injector Secondary Breakout Alternator Harness *HT-186123 - Nexus LS 2 Pin Bosch *HT-186124 - Nexus LS 4 Pin Delco *HT-186125 - Nexus LS 2 Pin Yazaki

Wiring Harnesses for Building Your Own VCU System

Haltech offers Nexus R5 wiring harness options for building a VCU (Vehicle Control Unit) System for your specific needs. Several harnesses are available, including universal engine, terminated engine, plug-n-play engine, alternator, and injector harnesses.

Part TypeWiring Harness

Product LineHaltech Nexus R5 Wiring Harnesses

BrandHALTECH

Package Height0.75

Package Width5.0

Package Length8.0

Weight0.07 PG

Part CategoryPerformance Parts

Vendor Part NumberHT-186200

Package Qty1

Package TypeEA
