Vehicle Info NeededHALTECHPART NUMBER: 484-HT-186206

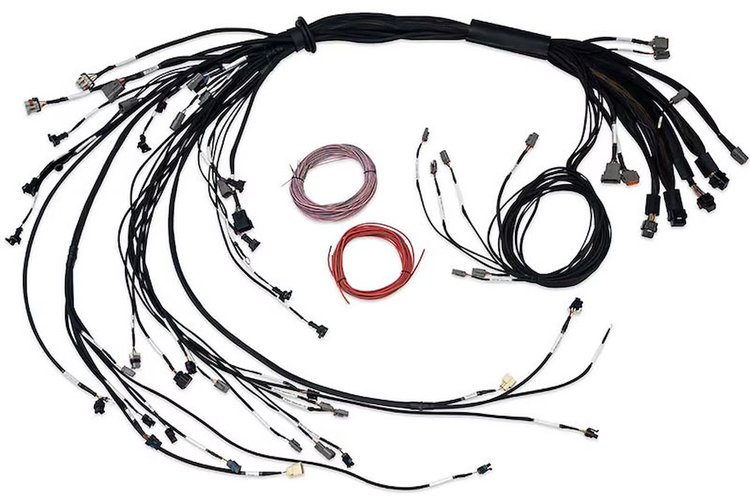

HT-186206 Nexus R5 Terminated Harness, GM LSX Non DBW
$1,55000
Ships on 09/15/2026
Lowest Price Guarantee- Nexus R5 Terminated Harness
- GM LSX Non DBW
Haltech HT-186206 Features:
Terminated harness suits LSx engines without DBW, incorporates PDM functionality
- EV1 primary injector plugs
- Plug and play with the OEM Ignition sub-harness on the engine. (Required)
- Includes
- 1 x HT-186206 Terminated Harness
- 1 x Pack of DTM/DT connector and pin set to terminate to sensors, solenoids and other devices
- 2 x DTP-2 connectors with pre-crimped 12AWG wires to use for fuel pump and thermofan
- 1 x DT-8 connector with pre-crimped 18AWG wires
- 1 x 2 pin Bosch alternator adaptor harness
- 1 x 2 pin Yazaki alternator adaptor harness
- 1 x 4 pin Delco alternator adapter harness
- 8 x Primary injectors (EV1)
- Breakout plug for 8 x Secondary injectors
- 2 x outputs available for Tertiary injection
- Single / Dual boost solenoid control
- Dual wideband sensor control (R5 onboard wideband controller)
- Flex fuel sensor connection
- Direct fuel pump control (using 25A-HCO)
- Direct thermofan control (using 25A-HCO)
- In-cabin breakout connector for spare inputs and outputs
- Engine bay breakout connector for spare inputs and outputs (eg transmission control)
- Breakout connector for PDM outputs (eg Headlights, indicators, wipers, etc)
- Haltech CAN Bus support (DTM-4)
- Nexus R5 LSx Non DBW Terminated Harness - EV1 primary injector plugs. Plug and play with the OEM Ignition sub-harness on the engine. Includes 3 x Alternator Adaptors (Bosch/Yazaki/Delco) DTM & DT style opposing connectors and pins
Part TypeWiring Harness
BrandHALTECH
Package Height0.75
Package Width5.0
Package Length8.0
Weight0.1 PG
Part CategoryPerformance Parts
Vendor Part NumberHT-186206
Package Qty1
Package TypeEA
