HT-195100 Nexus R5 + Plug and-Pin Set

Name: HT-195100 Nexus R5 + Plug and-Pin Set
Brand: HALTECH
SKU: 484-HT-195100
Price: 4630.00 USD
Availability: InStock

^$4,630⁰⁰

Ships on 09/15/2026

Lowest Price Guarantee

Haltech HT-195100 Features:

Plug and Pin Set - Suits Nexus R5

For use in converting an existing loom to suit NEXUS R5 applications
Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit)
4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
18 x peak/hold injector drivers (can be used as low side drive outputs)
12 x low current ignition outputs (can be used as low side drive outputs)
8 x low side drive outputs, PWM capable (DPOs)
4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
2 x onboard wideband controllers, supporting NTK and LSU4.9
3 x CAN ports with switchable termination
VCU FEATURES
Controlled via NSP (Nexus Software Programmer)
Long Term Learning
Stepper Motor Control
4D Closed Loop Boost Control
Closed Loop CO2 Control
Rotational Idle
Launch Control
Traction Control
Anti-Lag
Dual Knock Control
Trans Brake Control
Race Timer
Multi Stage Fuel Injection
Multi-level Engine Protection
6 Stage Nitrous Control
4-sensor variable cam control
Intake Air Bleed Control
Flat Shift Control
Shock Travel & Ride Height Control
Advanced Torque Management
On-board Wi-Fi
AUTOMATIC TRANSMISSION CONTROL
Ford AODE/4R70W
GM 4L60E
GM 4L80E
Toyota A340E
Lenco
Liberty

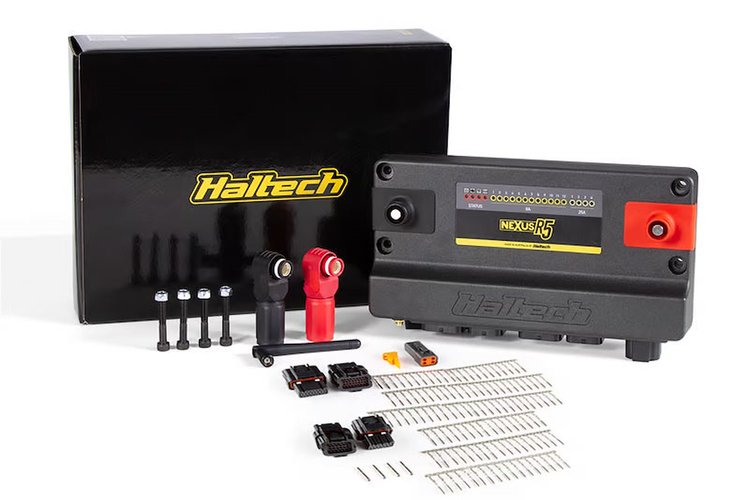

Nexus R5 + Plug and pin Set, Includes: Nexus R5 ECU, AMP 26 pin key 1 & 3 and 34 pin key 1 & 2 and DTP-4 Conectors and pins.

Advanced Technology Engine Management VCU for Engines up to 12-cylinders

Haltech Nexus R5 VCU (Vehicle Control Unit) is a state-of-the-art universal engine management system in one powerful device. It combines the functionality of a power distribution module, a data logger, and a dual-channel wideband controller. Recommended for engines with up to 12 cylinders or up to 6 rotors. This unit is perfect for racing applications where advanced race features, data logging, and power management control are required.

Part TypeThrottle Delay Eliminator

Product LineHaltech Nexus R5 Vehicle Control Unit

BrandHALTECH

Package Height1.5

Package Width5.0

Package Length8.0

Weight0.15 PG

Part CategoryPerformance Parts

Vendor Part NumberHT-195100

Package Qty1

Package TypeEA
