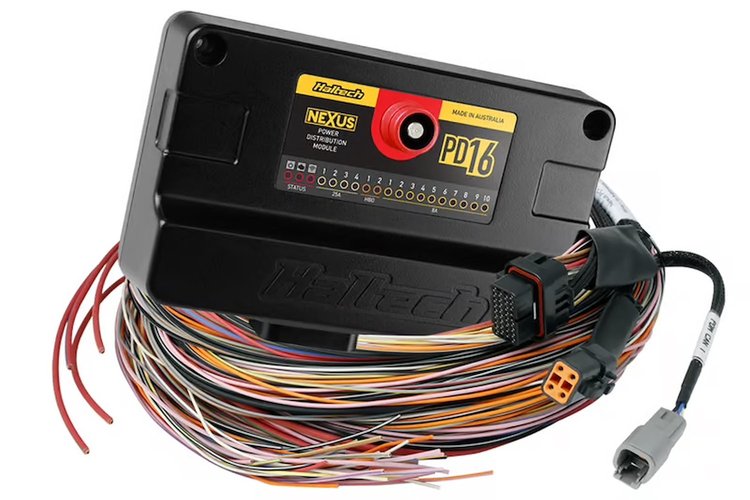

Haltech HT-198201 NEXUS PD16 Power Distribution Module w/Flying Lead Harness Includes:

• PD16 Power Distribution Module
• 16 ft. (5M) Flying Lead Harness
• SurLok Connector (Red) 120A
• USB-C Dust Cap
• USB-C Cable
• Mounting Hardware
• Quick Start Guide
• Product Catalogue

Haltech HT-198201 NEXUS PD16 Power Distribution Module w/Flying Lead Harness Features:

• Integrates into existing Haltech Elite or Nexus engine management system
• Ensures safe & dependable power delivery
• Integrates into Haltech CAN Bus Network
• (10) High-Side Outputs
• (2) Half-Bridge Outputs
• (4) 25A High-Current Outputs
• (8) Inputs plus a dedicated ignition switch input
• Power for Ignition Switch
• 5 Volt Sensor Supply/Sensor Ground
• Power LED
• DTC LED
• WiFi LED
• 25 Amp HCO LEDs
• 8 Amp HBO LEDs
• 8 Amp HCO LEDs
• Battery Positive Stud
• USB-C Port (Firmware update only)
• Superseal 34-pin Connector
• DTP4 Connector
• Mounting Holes

Haltech HT-198201 NEXUS PD16 Power Distribution Module w/Flying Lead Harness Note:

• Does not function as a stand-alone PDM

Emissions Note:

This part is legal for sale or uses on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
