Vehicle Info NeededHAMBURGER'SPART NUMBER: 497-0176

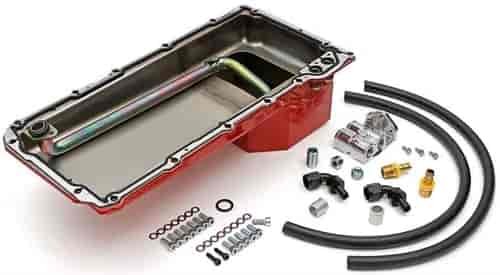

LS Swap Oil Pan/Filter Combo Kit for 1982-2004 Chevy S10/Blazer, Early Model GM Cars/Trucks [Single Filter, Horizontal Port, Red
$54399
Ships on Sep 08, 2026
Lowest Price GuaranteeChevy S10/Blazer, Early Model GM Cars/Trucks
- LS Swap Oil Pan/Filter Combo Kit
- 1982-2004 Chevy S10, Blazer
- Early Model GM Cars, Trucks
- 5-Qt Capacity
- Pan Depth: 6 in.
- Rear Sump: 8.250 in. W x 7 in. L
- Single Filter
- Horizontal Port Filter Base
- Red
Part TypeOil Pan
BrandHAMBURGER'S
Package Height8.0
Package Width12.0
Package Length7 in (177.8 mm)
Weight15.25 PG
Part CategoryPerformance Parts
Oil Pan Capacity5 quarts
UsageStreet/Performance
Hardware IncludedYes
Sump StyleWet
Pickup IncludedYes
Drain Plug Thread Size (In.)1/2-20
Oil Pan TypeStamped
Oil Pan FinishRed painted
Dipstick IncludedNo
Engine Make/SizeChevy LS Series
Kickout PositionDriver and passenger side
Plug IncludedYes
Oil Pan MaterialSteel
Gaskets IncludedYes
Oil Pan Depth6 in (152.4 mm)
Sump LocationRear
Windage Tray IncludedNo
Replacement Gasket Set4336
Stroker ClearancedNo
Vendor Part Number0176
Package Qty1
Package TypeEA
