![LS Swap Oil Pan/Filter Combo Kit for Chevelle, GM F-Body, GM X-Body [Single Filter, Vertical Port, Chrome Pan]](https://www.jegs.com/images/mini_750/400/497/497-0183.jpg)
Vehicle Info NeededHAMBURGER'SPART NUMBER: 497-0183

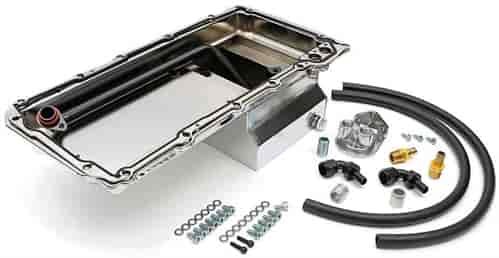

LS Swap Oil Pan/Filter Combo Kit for Chevelle, GM F-Body, GM X-Body [Single Filter, Vertical Port, Chrome Pan]
$57999
Ships on 09/17/2026
Lowest Price GuaranteeChevelle, GM F-Body, GM X-Body
- LS Swap Oil Pan/Filter Combo Kit
- 1965-1972 Chevy Chevelle
- 1967-1969 GM F-Body
- 1968-1972 GM X-Body
- 7-Quart Capacity
- Pan Depth: 6 in.
- Rear Sump: 10.375 in. W x 8.375 in. L
- Baffled
- Single Filter
- Vertical Port Filter Base
- Chrome
Oil Pans Specifically Made for Engine Swaps
Hamburger's LS Swap Oil Pan/Filter Combo Kits are designed to allow the oil filter to be mounted in an easy-to-reach location in an engine swap with space restrictions. These LS Swap Relocation Kits come complete with a rear sump oil pan with pickup, gasket, bolts, remote oil filter base (single or double filter), oil lines, filter nipple(s) and fittings.
Part TypeOil Pan
Product LineHamburger's LS Swap Oil Pan/Filter Combo Kits
BrandHAMBURGER'S
Package Height8.0
Package Width12.0
Package Length8.375 in (212.725 mm)
Weight15.25 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
UsageStreet/Performance
Hardware IncludedYes
Sump StyleWet
Pickup IncludedYes
Drain Plug Thread Size (In.)1/2-20
Oil Pan TypeStamped
Oil Pan FinishChrome plated
Dipstick IncludedNo
Engine Make/SizeChevy LS Series
Kickout PositionDriver and passenger side
Plug IncludedYes
Oil Pan MaterialSteel
Gaskets IncludedYes
Oil Pan Depth6 in (152.4 mm)
Sump LocationRear
Windage Tray IncludedNo
Replacement Gasket Set4336
Stroker ClearancedNo
Vendor Part Number0183
Package Qty1
Package TypeEA
