Product Discontinued
HAMBURGER'SPART NUMBER: 497-1038

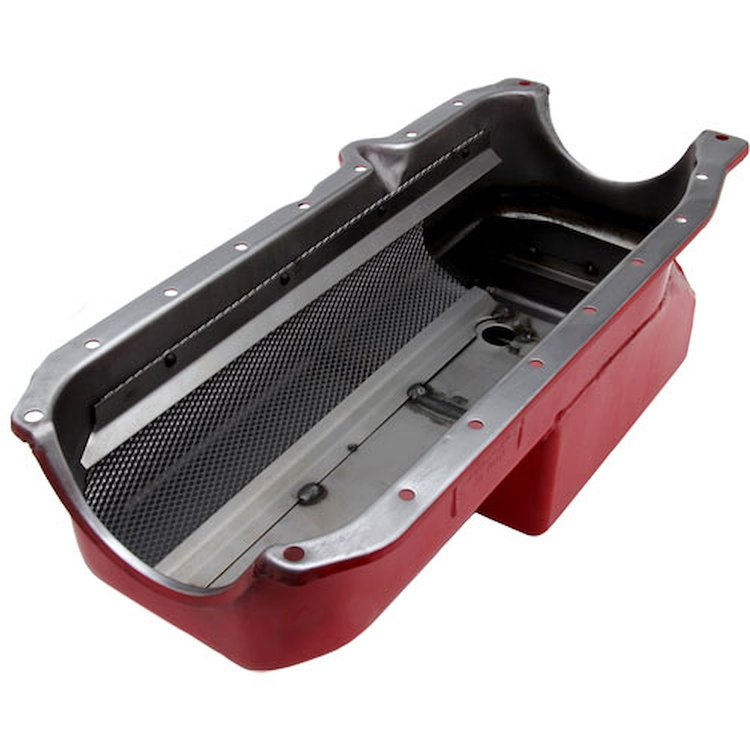

Econo Series Drag Race & Marine Oil Pan 1986-00 Small Block Chevy 305-350 (Standard Rails Without Notches)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Econo Series Drag Race & Marine Oil Pans
- Econo Series Drag Race & Marine Oil Pan
- 1986-00 Small Block Chevy 305-350 (Standard Rails Without Notches)
- Pan Depth: 8" - Wet Sump
- Pan Capacity: 7 Quarts
- Includes Gasket & Pickup
Applications: Street Rods, Drag Race Cars and Boats with rear sump oil pan. Must Use Gasket 497-3007Pickup (included): 497-2508 Recommended oil pumps: - Melling 689-10550, 689-M55, or
- Chevrolet 809-14044872 (high volume)
Part TypeOil Pan
BrandHAMBURGER'S
Package Height10.8
Package Width12.6
Package Length25.4
Weight11.66 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Dipstick Provisionnotched
BaffledYes
Pickup IncludedYes
Drain Plug Thread Size (In.)1/2-20
QuantitySold as a kit.
MaterialSteel
Oil Pan FinishRed painted
Crank Shaft Wiper IncludedYes
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.875 in (98.425 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Windage Tray IncludedYes
Dipstick LocationPassenger side
Kicked OutNo
FinishRed Painted
Stroker ClearancedYes
Vendor Part Number1038
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
