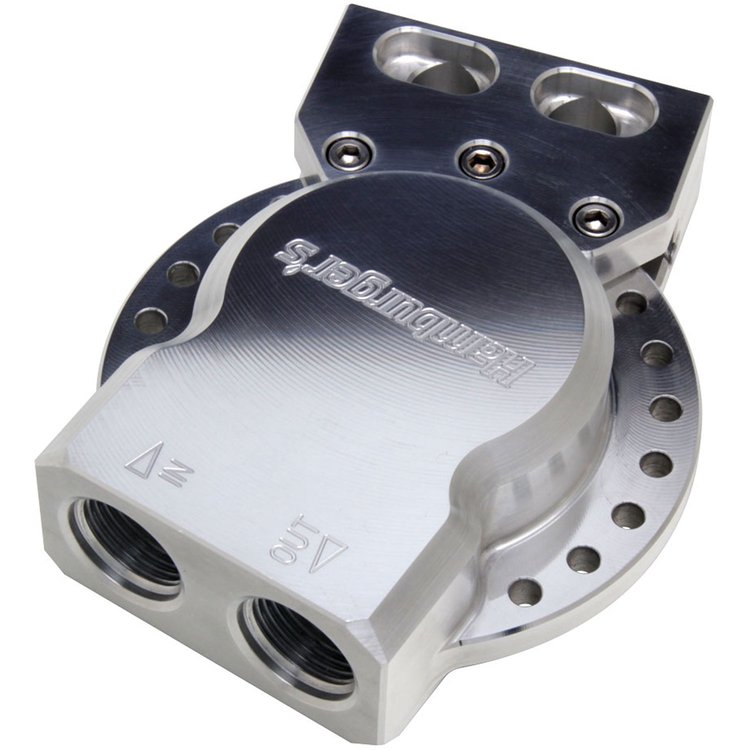

Multi-Position Remote Oil Filter Relocation Unit For HP4 filter (or equivalent)
InfoVehicle Info Needed
HAMBURGER'SPART NUMBER: 497-3302

Multi-Position Remote Oil Filter Relocation Unit For HP4 filter (or equivalent)

$21499
ShippingShips on 11/03/2026
Lowest PriceLowest Price Guarantee

    Multi-Position Remote Oil Filter Relocation Unit
  • For HP4 filter (or equivalent)
  • Includes 13/16"-16 x 1" Nipple

    This remote oil filter base can be set at virtually any angle. This allows you to gain clearance around any component in your engine bay.
    Hamburger's ingenious design of this 2-piece remote oil filter base mounts to the fenderwell or firewall. Then dial-in the angle that works best for your engine compartment and components & lock it down. You get 180º of rotation in 15º increments so the oil line ports can be routed around any obstacle in the engine bay. These bases are fully CNC-machined from solid billet aircraft aluminum. Universal in fit with -12AN ports that can are designed for ultra-flow lubrication. Nipples are included (hose and fittings sold separately). .

    Features:
  • Ideal for Race, Marine, or Diesel Use
  • CNC-machined from 6061-T6 aluminum
  • -12AN Ports for Optimum Oil Flow
  • Oil Line Ports Rotate 180º in 15º Increments
  • Compatible with PH8A, HP4 and HP6 oil filters
Part TypeOil Filter Bracket
Product LineHamburger's Multi-Position Remote Oil Filter Relocation Bases
BrandHAMBURGER'S
Package Height3.3
Package Width5.5
Package Length9.7
Weight2.56 PG
Part CategoryPerformance Parts
Single Or Dual FiltersDual
Port Size-12AN Inlet and Outlet Ports
O.E. ReplacementNo
MaterialBillet Aluminum
Fitting Thread-12AN
Part FitmentSemi Universal
Oil Filter CompatibilityFRAM HP4 or Equivalent
FinishClear Anodized
Filter SizeHP4
Vendor Part Number3302
Package Qty1
Package TypeEA

Items You Need

AN Port Adapter Fitting -12 AN port (1 1/16 in.-12 Thread) to -12 AN hose

JEGS

AN Port Adapter Fitting -12 AN port (1 1/16 in.-12 Thread) to -12 AN hose

Part Number : 555-110170
$1809$19.99
You Save$1.90
Oil Filter Mounting Nipple 13/16"-16 x 1"

HAMBURGER'S

Oil Filter Mounting Nipple 13/16"-16 x 1"

Part Number : 497-1066
$769
