Product Discontinued
HAMBURGER'SPART NUMBER: 497-3350

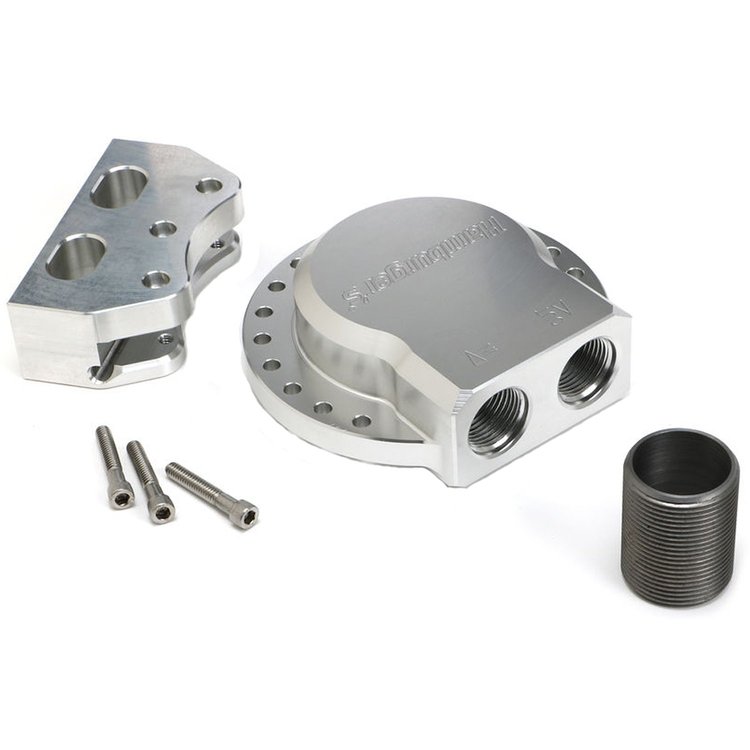

Multi-Position Remote Oil Filter Relocation Unit For HP6 filter (or equivalent)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- Multi-Position Remote Oil Filter Relocation Unit
- For HP6 filter (or equivalent)
- Includes 1-1/2"-12 x 1-1/2" Nipple
This remote oil filter base can be rotated and locked at virtually any angle. This allows you to gain clearance around any component in your engine bay. Works with HP6 or equivalent oil filter. - HP6 Multi-position filter base (2-piece), 1.5"-12 nipple
- Hamburger's ingenious design of this 2-piece remote oil filter base mounts to the fenderwell or firewall. Then dial-in the angle that works best for your engine compartment and components & lock it down. You get 180º of rotation in 15º increments so the oil line ports can be routed around any obstacle in the engine bay. These bases are fully CNC-machined from solid billet aircraft aluminum. Universal in fit with -12AN ports that can are designed for ultra-flow lubrication. Nipples are included (hose and fittings sold separately). .
- Ideal for Race, Marine, or Diesel Use
- CNC-machined from 6061-T6 aluminum
- -12AN Ports for Optimum Oil Flow
- Oil Line Ports Rotate 180º in 15º Increments
- Compatible with PH8A, HP4 and HP6 oil filters
Features:
Part TypeOil Filter Bracket
Product LineHamburger's Multi-Position Remote Oil Filter Relocation Bases
BrandHAMBURGER'S
Package Height3.0
Package Width6.9
Package Length9.8
Weight3.47 PG
Part CategoryPerformance Parts
Single Or Dual FiltersDual
Port Size-12AN Inlet and Outlet Ports
O.E. ReplacementNo
MaterialBillet Aluminum
Fitting Thread-12AN
Part FitmentUniversal
FinishClear Anodized
Filter SizeHP6
Vendor Part Number3350
Package Qty1
Package TypeEA
