Product Discontinued
HAYSPART NUMBER: 490-20-235

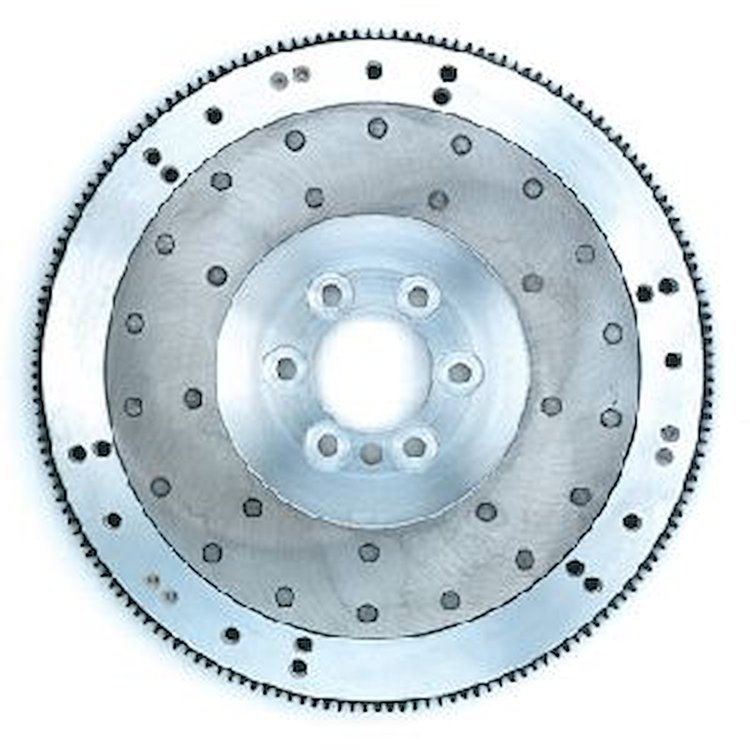

Billet Aluminum 168-Tooth Flywheel 1970-90 Chevy 454 with large bellhousing
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Billet Aluminum Flywheels
Chevy
Chevy
- Billet Aluminum 168-Tooth Flywheel
- 1970-90 Chevy 454 with large bellhousing
- Fits 10.5" and 11" pressure plates
- 15 lbs
- Externally Balance
Machined from 7075 T-6 forged billet aluminum, these flywheels weigh 11, 14, or 15 pounds and are popular among many road racers and drag racers running light cars with large motors. The high-strength alloy surpasses material specs regarding strength and centrifugal distortion. All feature a replaceable steel or bronze heat shield and are drilled to accept either the Borg & Beck or Long clutch pattern. Ring gears are securely mounted with welded tabs riveted to flywheels to prevent spinning. Balanced to Detroit (external) or neutral (internal) specifications (1.1 SFI-certified).
Part TypeFlywheel
BrandHAYS
Package Height1.6
Package Width15.4
Package Length15.6
Weight15.3 PG
Part CategoryPerformance Parts
Flywheel MaterialBillet aluminum
Part FitmentSemi Universal
Vendor Part Number20-235
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
