Vehicle Info NeededHAYSPART NUMBER: 490-90-103
Super-Truck Clutch Kit 12" Disc Diameter
$51195
Ships on 09/15/2026
Lowest Price GuaranteeSuper-Truck Clutch Kits
- Super-Truck Clutch Kit
- 12'' Disc Diameter
- 1-1/8''-10 Spline
- For Utility; Off-Road And Performance Trucks
- Feature All New Parts
- Electrostatic Coating
- High Performance Friction Surf
- High Burst Strength
- Marcel Cushioned
- Heavy-Duty Damper
- Designed For Severe Uses
If Your Diesel Truck Tows Heavy Loads, This Is Your Clutch!
Hays Super-Truck Diesel Performance Clutch Kits handle up to 550 ft/lbs of torque while maintaining minimal pedal pressure. Premium components ensure extended service life at a price you can afford. These clutches were built to withstand extreme use but their best feature... Hays Super-Truck Diesel Performance Clutch Kits are made in the USA with all new parts.
Show More

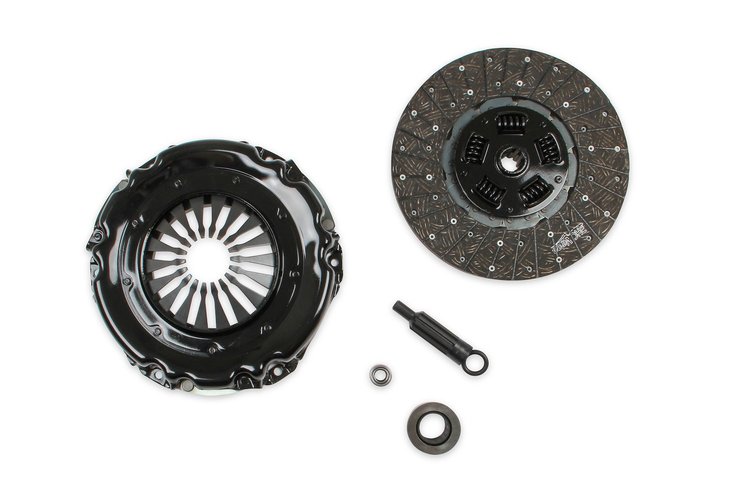

Clutch Kits include:

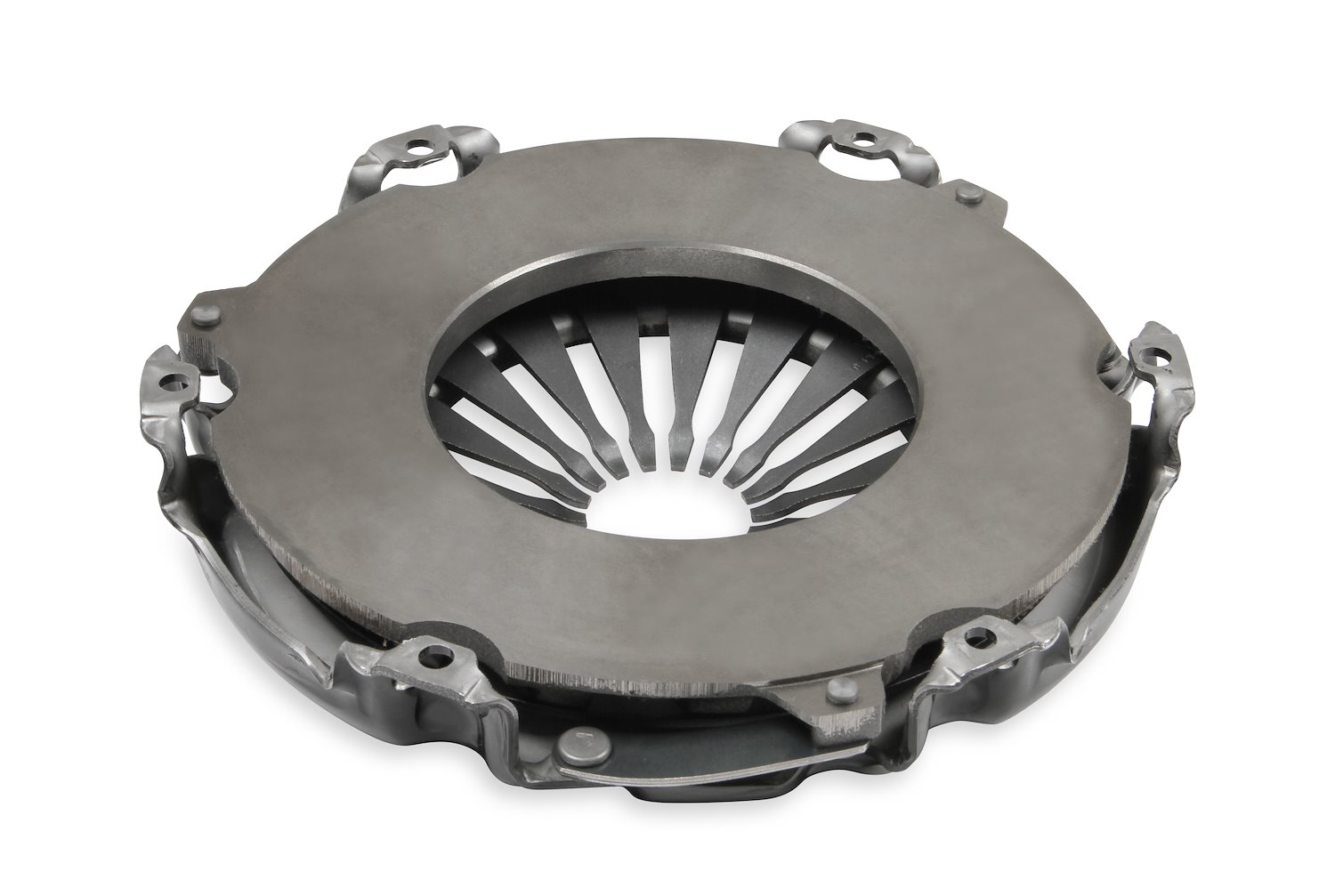

- Clutch pressure plate (thicker pressure ring for superior heat dissipation & stronger clamp load to prevent disc from slipping)
- Clutch disc (slightly larger than OE disc but bolts to OE flywheel)
- Disc alignment tool
- Throwout bearing
Click Here for Super-Truck Performance Clutch Kits Application Guide
Part TypeClutch Kit
Product LineHays Super-Truck Diesel Performance Clutch Kits
BrandHAYS
Package Height4.0
Package Width14.2
Package Length14.5
Weight25.59 PG
Part CategoryPerformance Parts
Disc StyleSprung Hub
Torque Capacity (Ft/Lbs.)532
Pressure Plate StyleDiaphragm
Throwout Bearing StyleStandard
Throwout Bearing IncludedYes
QuantitySold as a kit
Mounting Hardware IncludedNo
Counterweight AssistNo
MaterialSteel
Maximum Horsepower558
Flywheel IncludedNo
Pilot Bushing IncludedNo
Disc Diameter (Mm)305
Input Spline Quantity10 in (254 mm)
Disc Diameter12 in (304.8 mm)
Input Shaft Diameter1.125 in (28.575 mm)
Disc MaterialOrganic
Alignment Tool IncludedYes
Vendor Part Number90-103
Package Qty1
Package TypeEA
