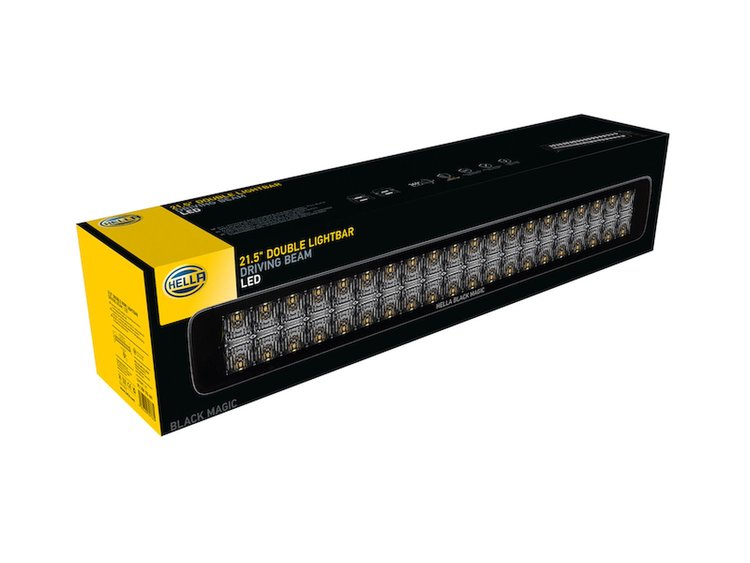

Black Magic Series Double-Row Spot LED Light Bar, 21.500 in. Length
InfoVehicle Info Needed
HELLAPART NUMBER: 288-358176401

Black Magic Series Double-Row Spot LED Light Bar, 21.500 in. Length

$28599
ShippingShips on 11/17/2026
Lowest PriceLowest Price Guarantee

Items You Need

Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
10799 Contact Cleaner, Non-Chlorinated

LUCAS OIL

10799 Contact Cleaner, Non-Chlorinated

Part Number : 639-10799
$1017$10.99
You Save$0.82
Angled Flush Cutter - 5 in.

JEGS

Angled Flush Cutter - 5 in.

Part Number : 555-W30763
$1099$13.99
You Save$3.00
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2974
$1599$22.09
You Save$6.10

Double-Row Light Bars

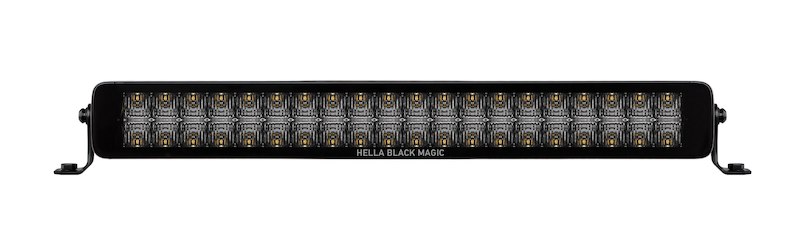

Black Magic Series Double-Row Spot LED Light Bar
  • 21.500 in. Length
  • Surface-Mount
  • 11,000 Lumens
  • 200 W
  • IP68 (Waterproof) and IP69K (Dust) Approved
  • Sold Individually

    Breakdown of Included Items

    Double-Row Spot LED Light Bar Dimensions

    Light Distribution Chart

    358176401 Features:

    • Vibration-resistant lightweight housing
    • A sleek, edgeless design that avoids deposits from settling along the light bar edge
    • Accommodates upright or pendant-mounting
    • An Integrated thermal sensor adapts to ambient temperature to prevent LED overheating/failure and increases light output when the ambient temperature is low
    • Extra-long 6.5 ft. connection cable with open ends
    • ECE-R10 certified (EU/ECE regulation compliant)

    Technical Specs:

    • Operating voltage: 10-30 V
    • Current: 6.7-14.6 A (12 V), 3.5-7.2 A (24 V)
    • 5,700 Kelvin color temperature
    • (40) total LED's
    • Reverse polarity and over-voltage protection
    • Weight: 5.33 lbs. (2,420 g)

    Note:

    • For off-road use only

      • The Professional Choice for Off-Road LED Lighting

      Hella Black Magic Series LED Auxiliary Lights provide exceptional style and powerful illumination. They are ideal for a rural, night, or off-road adventure and deliver an optimal driving experience to complement nearly any vehicle. Each auxiliary light features brilliant white-lighting technology, a heavy-duty shock-proof housing, a compact size for various mounting options, and an all-blackout design for a sleek appearance. Available in lights bars of different sizes and cube-style.

    Part TypeLight Bar
    Product LineHella Black Magic Series LED Auxiliary Lights
    BrandHELLA
    Package Height3.4 in (86.36 mm)
    Package Width2.700 in. (68 mm)
    Package Length26.77
    Weight5.32 PG
    Part CategoryAccessories
    Light ColorWhite
    UsageOff-Road
    Raw Lumens11,000
    Bulb TypeLED
    Housing MaterialAluminum
    Wattage200
    Housing ShapeStraight
    Sae/Dot CompliantNo
    QuantitySold individually
    Overall Length23 in (584.2 mm)
    Led Number40
    Beam StyleSpot
    Light Cover IncludedNo
    Housing ColorBlack
    Lens ColorClear
    Part FitmentUniversal
    Attachment MethodBolt On
    Vendor Part Number358176401
    Package Qty1
    Package TypeEA
    Please click here to download the graphs PDF File
    Some parts are not legal for use in California or other states with similar laws / regulations
