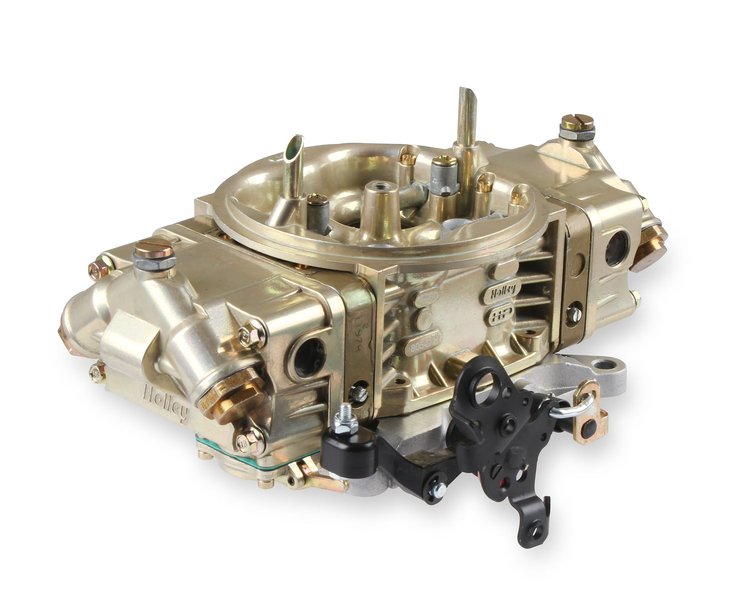

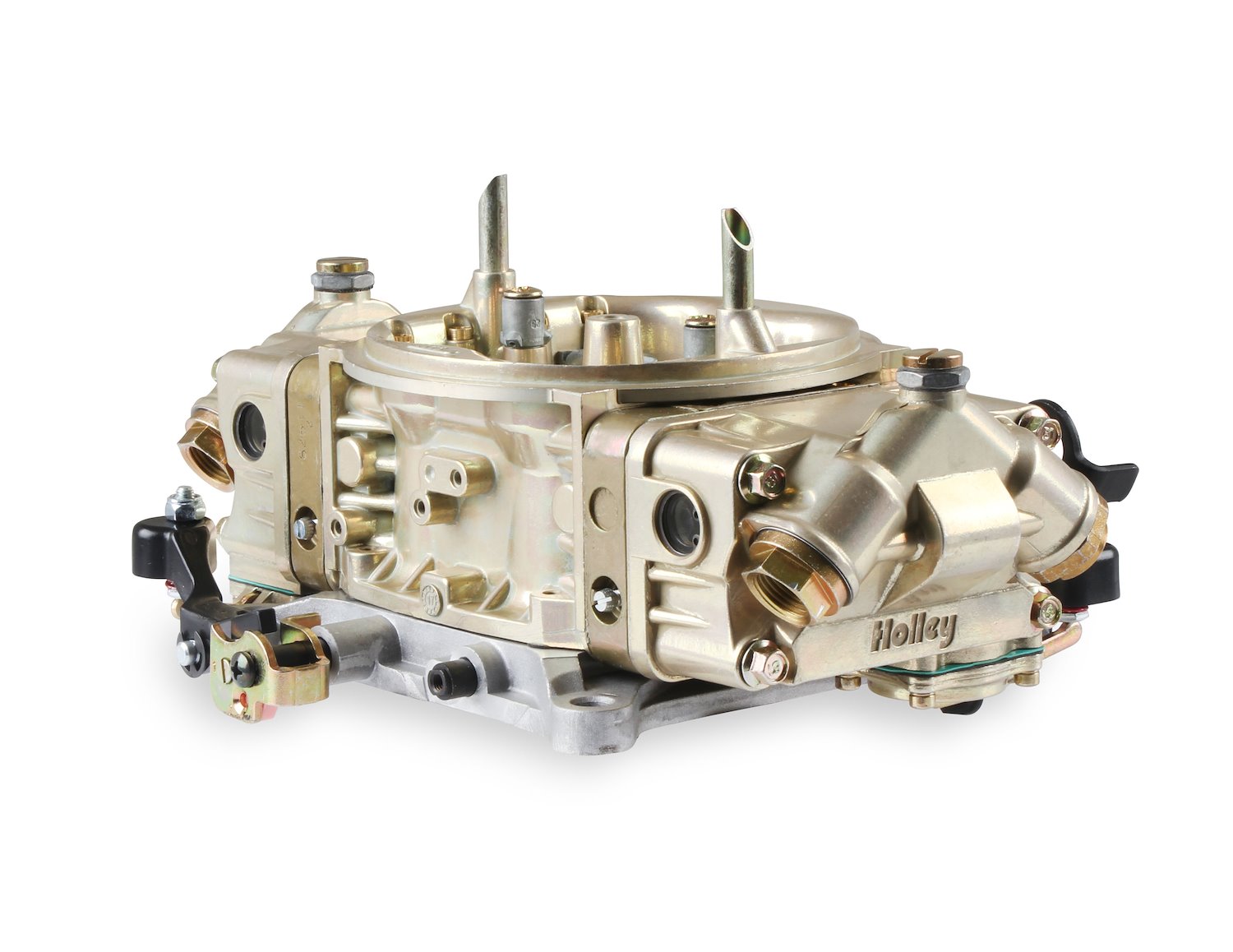

0-80541-2 Features:

• Includes notched floats and jet extensions
• Square-bore flange bolt pattern
• Contoured venturi inlet for balanced airflow and reduced turbulence
• Screw-in air bleeds for precise tuning
• Dual 30cc accelerator pumps provide additional fuel under initial acceleration
• High-flow metering blocks with reusable gaskets
• Dominator-style fuel bowls for plumbing lines on either side
• 4-corner idle for idle system control
• Progressive Secondaries for dialed-in starting line launches
• Stainless steel throttle plates
• 100-percent wet-flow tested for ready-to-race right out of the box

Technical Specifications:

• Primary main jet: 70
• Primary power valve: 6.5
• Primary pump nozzle size: 28
• Secondary main jet: 70
• Secondary power valve: 6.5
• Secondary pump nozzle size: 29
• Throttle bore: 1.688 in.
• Venturi size: 1.250 in.
• Straight booster
• 2-Circuit

Notes:

• Replaces Holley, Edelbrock, Carter AFB, and Autolite-style carburetors with 5-3/16 (.1875) in. x 5-5/8 (.625) in. bolt pattern
• An adapter is required to install on a spread bore-style intake manifold (sold separately)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
