20-29 GPH Flow Rate

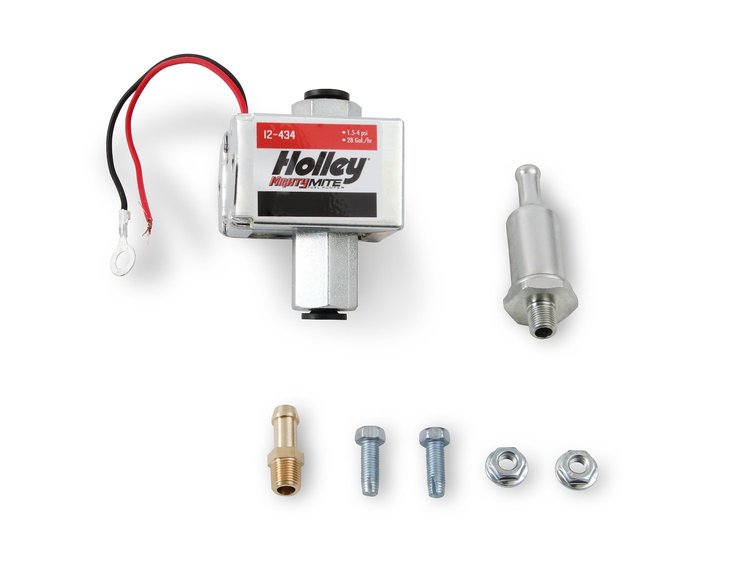

Mighty Mite Electric Fuel Pump28 GPH Operating Pressure: 1.500-4 PSI 12 V Compatible with all Fuel Types and Fuel Additives Supports up to 300 HP Naturally-Aspirated Sold Individually
Features:
- Designed for use on all low and high-pressure carburetor applications
- Suitable as a lift/priming pump for most diesel engines (36 in. of lift)
- 28 GPH @ 1.500-4 PSI
- 12 V - can also be used in reverse polarity (positive ground)
- 1/8 in. NPT x 5/16 in. hose barb fittings
- Hose barb fits 5/16 in. hose
- Self-priming, solid-state design
- Simple two-wire hook-up
- -40-degree F to 180-degree F temperature rated
- Coast guard ignition test-approved - internal check valve, and positive shutoff valve
Part TypeElectric Fluid Pump
BrandHOLLEY
Package Height4.0
Package Width6.0
Package Length6.0
Weight0.96 PG
Part CategoryPerformance Parts
Inlet Size1/8 in. NPT
Wire Quantity2
ColorSilver
QuantitySold individually
Free Flow Gph28
Inlet AttachmentFemale
Maximum Horsepower300
Fuel TypeGasoline/Diesel
Outlet AttachmentFemale
Gasket/Seal IncludedNo
Part FitmentUniversal
Volts12 volts
Vendor Part Number12-434
Package Qty1
Package TypeEA
