12-812-1 Blue 110 GPH Electric Fuel Pump Features:

• For street/strip applications
• Free-flow capacity of 110 gallons per hour / 416 liters per hour
• Flows 88 gallons per hour maintaining 9 psi line pressure
• Pressure is pre-set at 14 psi (approximately)
• Maximum pressure is 14 psi
• Not compatible with alcohol or methanol fuels
• Not designed or recommended for use with fuel injection systems
• Has externally accessible pressure relief valve
• Tumble polished billet look
• Lower housing casting designed for enhanced fuel flow and quiet operation
• Motor draws only 3 amps current
• 7-1/2 amp fuse recommended
• Improved design for street/strip applications
• Distinctive 'Blue' logo
• Fuel pressure regulator not included
• Provides constant fuel flow with no pulsation
• Rotor/vane pump design is more tolerant of contaminated fuels
• Weighs only 3 lbs
• Includes mounting bracket
• Repair kits are readily available
• Can be serviced from the pump end

Holley 12-812-1 Blue 110 GPH Electric Fuel Pump Notes:

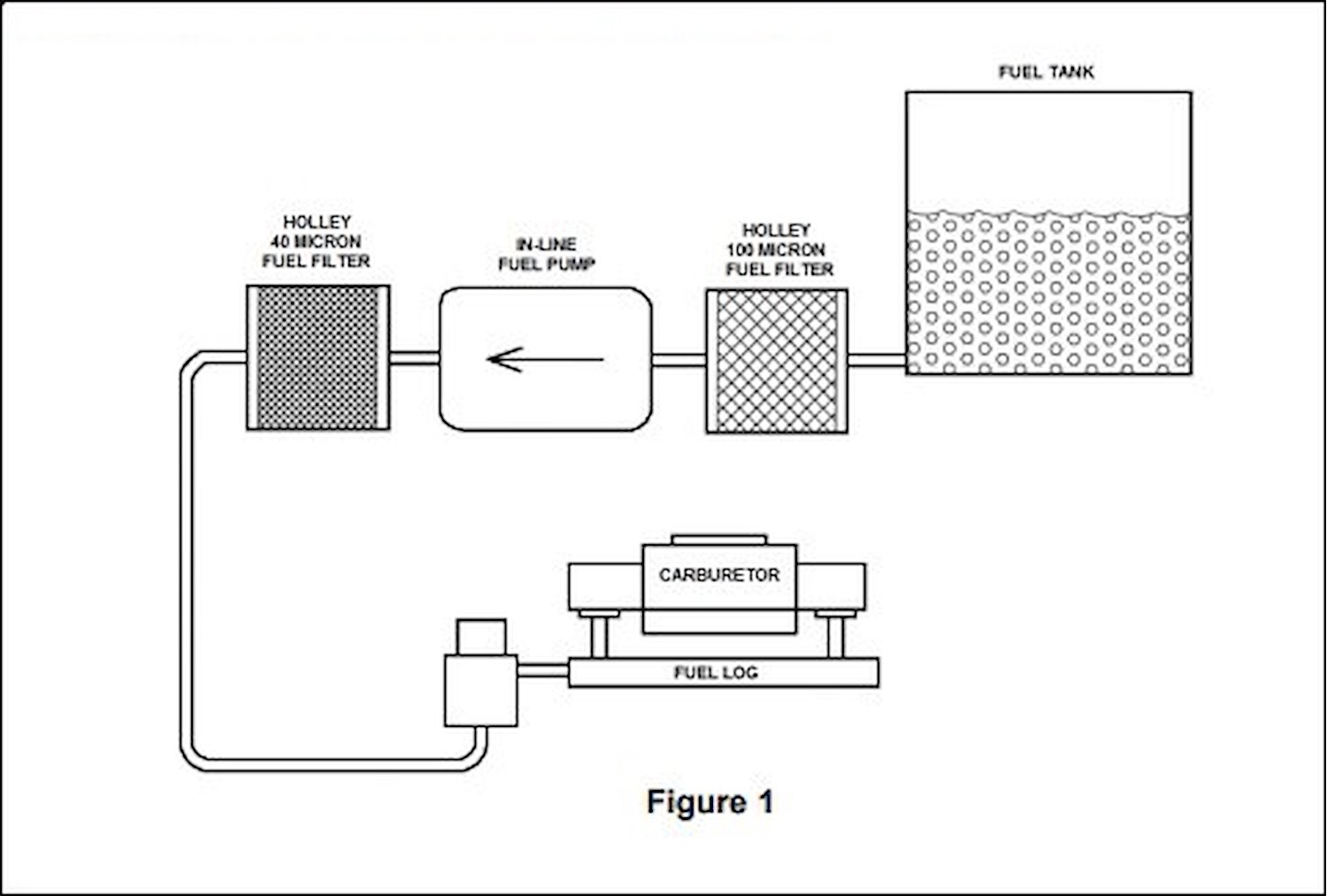

• Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side
• Use of safety shut-off switch, p/n 510-12-810, strongly recommended

FAQ

How much horsepower will a Holley Blue pump support?

• The Holley Blue fuel pump typically supports up to 600 horsepower in carbureted applications.
• Ideal for moderate to high-performance engines.

What is the maximum pressure for a Holley Blue fuel pump?

• The Holley Blue pump can deliver fuel up to a maximum pressure of 14 psi (pounds per square inch).
• Designed for reliable fuel delivery within this pressure range.

How many amps does a Holley Blue fuel pump draw?

• The Holley Blue fuel pump typically draws around 4-7 amps during operation.
• Ensure proper wiring and electrical capacity for optimal performance.

How much HP can a GPH pump handle?

• The Holley Blue fuel pump can support up to 600 horsepower in carbureted setups.
• Engineered for reliable fuel delivery in moderate to high-performance applications.
