12-882KIT EFI Bypass Fuel Pressure Regulator Kit - Chrome Finish
InfoVehicle Info Needed
HOLLEYPART NUMBER: 510-12-882KIT

12-882KIT EFI Bypass Fuel Pressure Regulator Kit - Chrome Finish

$17295
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

EFI Fuel Pressure Regulators
EFI Bypass Fuel Pressure Regulator Kit
  • 15-60 PSI
  • 3/8 in. NPT Inlet/Outlet/Return Ports
  • 1/8 in. NPT Gauge Port
  • 1/8 in. NPT Vacuum Port
  • Die-Cast Aluminum
  • Chrome Finish

    12-822KIT Features:

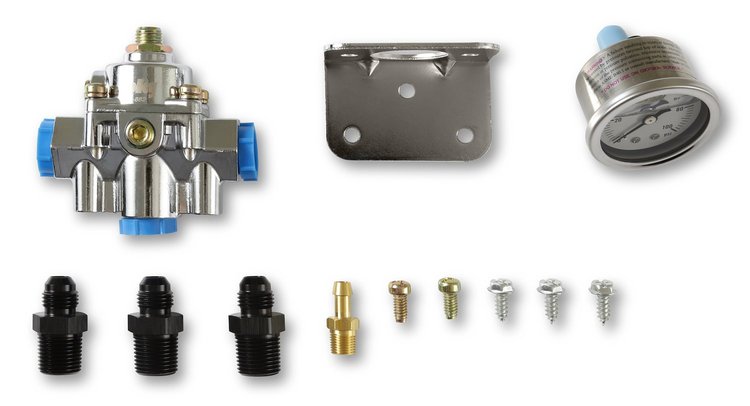

    • Includes (1) Earl's fuel pressure gauge (361-100187ERL), (3) Mr. Gasket 3/8 in. NPT to -6 AN fittings, (1) hose barb fitting, (1) mounting bracket, and (5) mounting screws
    • For use with gasoline applications utilizing a return-style system with a line running back to the fuel tank
    • The pressure is adjustable for precise fuel output
    • The vacuum port can be used for boost reference (1:1)
    • The chrome finish provides excellent corrosion resistance

      Emissions Note:

      This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

      CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • Part TypeFuel Pressure Regulator
      BrandHOLLEY
      Package Height5.5
      Package Width6.4
      Package Length6.9
      Weight1.55 PG
      Part CategoryPerformance Parts
      Regulator FinishChrome
      Outlet Size3/8 NPT
      Inlet Size3/8 NPT
      Regulator MaterialDie-Cast Aluminum
      Outlet Quantity1
      QuantitySold as a kit
      Mounting Hardware IncludedYes
      Boost/Vacuum Reference PortYes
      Inlet AttachmentFemale Threads
      Mounting Bracket IncludedYes
      Gauge PortYes
      Return Fitting Size3/8NPT
      Outlet AttachmentFemale Threads
      Fittings IncludedYes
      Inlet Quantity1
      Pressure Range (Psi)5-60
      Gauge Range (Psi)0-100
      Part FitmentUniversal
      Gauge Port Size (In.)1/8 NPT
      Return AttachmentFemale Threads
      Package Qty1
      Package TypeEA
      No Questions
      No Reviews
      Please click here to download the instructions PDF file
