Vehicle Info NeededHOLLEYPART NUMBER: 510-162-551

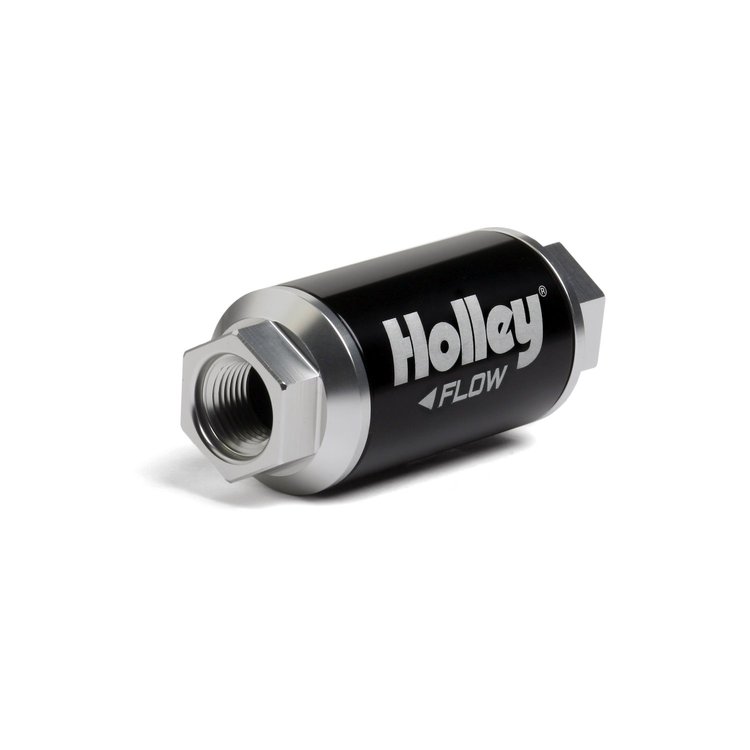

100 GPH HP Billet Fuel Filter
$13295
1 left in stock
Ships on Nov 02, 2026
Lowest Price Guarantee100GPH
100 GPH HP Billet Fuel FilterColor: Black Anodized Diameter: 1.5 in. Element Material: Stainless Steel Woven Mesh Filter Type: Pre Filter Fuel Type: Gasoline Inlet Outside Diameter: 3/8 in.
The 100 GPH HP Billet Fuel Filter from Holley is a fuel filter engineered and manufactured to Holley's specifications for consistent fit and function.
Fuel Filter Highlights:
- Black anodized body and clear anodized end caps for corrosion resistance and good looks.
- Female 3/8 in. NPT inlet and outlet.
- 100 micron stainless steel woven mesh element.
- Measures 3.5 in. long and 1.5 in. diameter.
- Recommended as a pre filter (before the pump) in Carb or EFI applications.
Holley's HP™ and Dominator™ Billet Fuel Filters are part of Holley's complete fuel systems product line. Holley® Billet Fuel Filters are precision CNC machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and clear bright dip anodized ends for superior corrosion resistance and good looks.
Holley® Billet Fuel Filters are available in a variety of configurations in 100, 175, and 260 GPH and 10, 40 and 100 micron ratings (Replacement elements available).
Show More
Specifications
- 10 micron filters are recommended for use as a post filter in EFI systems
- 40 micron filters are recommended for use as a post filter in carbureted systems
- 100 micron filters are recommended as a pre filter in both carbureted or EFI systems
Part TypeFuel Filter
Product LineHolley Billet Fuel Filters
BrandHOLLEY
Package Height1.5
Package Width4.2
Package Length6.6
Weight0.4 PG
Part CategoryReplacement Parts
Filter Element IncludedYes
Smallest Particle Filtered100 microns
Outlet Size3/8 NPT
Outlet QuantityOne
Filter Element MaterialStainless steel mesh
QuantitySold individually
Overall Length3.5 in (88.9 mm)
MaterialStainless Steel Woven Mesh
Inlet AttachmentFemale Threads
Fuel Filter StyleInLine
Inlet Size (In.)3/8 NPT
Filter Housing MaterialBillet aluminum
Mounting Bracket IncludedNo
Outlet AttachmentFemale Threads
Inlet/Outlet TypeSingle Inlet/Single Outlet
Filter Housing FinishBlack/Clear anodized
Fittings IncludedNo
Clamps IncludedNo
Inlet QuantityOne
Fitting Type3/8NPT
Part FitmentUniversal
Outside Diameter1.5 in (38.1 mm)
Vendor Part Number162-551
Package Qty1
Package TypeEA
