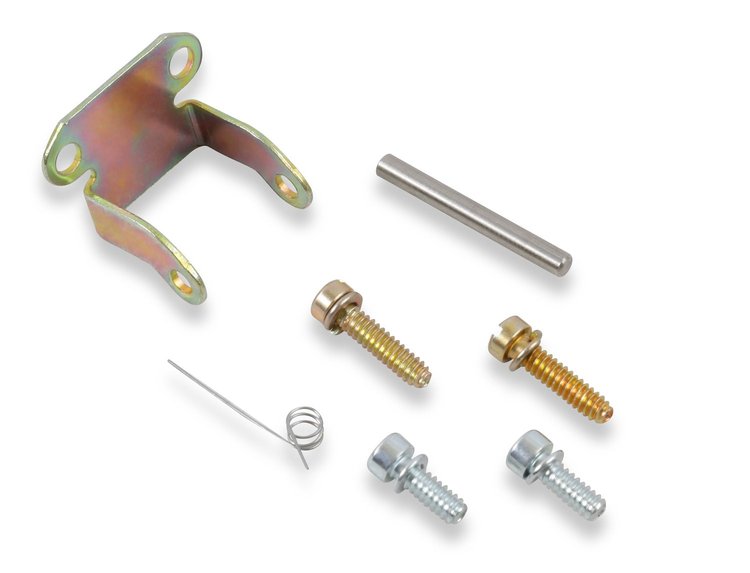

20-105 Float Hanger Hardware Fuel bowl hardware for float installation
InfoVehicle Info Needed
HOLLEYPART NUMBER: 510-20-105

20-105 Float Hanger Hardware Fuel bowl hardware for float installation

$1941
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Float Hanger Hardware
    Float Hanger Hardware
  • Fuel bowl hardware for float installation

  • Including Fuel Bowl Hardware
  • For Float Installation

    Holley floats are designed for Holley 2-bbl and 4-bbl performance carburetors. The floats are named after their attachment point in the float bowl and are available in a center-hung design or side-hung design. The materiel they are constructed of can be either brass or nitrophyl (plastic polymer) depending on the fuel type that is to be used.

    A center-hung float has its float arm attached to the float center and is hung/pivots from the center of the float bowl. Center-hung floats are also available with notches for jet extensions to pick-up fuel during extreme g-forces. The notched floats are available in nitrophyl only and can be purchased with or without the jet extensions. Special wedge shaped floats are also available for circle track applications in the center-hung style.

    Show More

    A side-hung float has its float arm attached at one side and is hung/pivots from the side of the float bowl. Side-hung floats are the only style to feature a non-adjustable version as all other floats are adjustable.

    The floats constructed of brass are designed for use with alcohol or methanol fuels. The nitrophyl floats are the most common as they are used with gasoline in naturally aspirated and blow-through forced induction systems. A draw-through forced induction system can use either construction depending on the fuel used.

Part TypeCarburetor Float Hardware Kit
Product LineHolley Floats & Hardware
BrandHOLLEY
Package Height1.2
Package Width1.9
Package Length2.4
Weight0.05 PG
Part CategoryPerformance Parts
Float Hanger Screws IncludedYes
Float Hanger MaterialSteel
QuantitySold individually
Part FitmentSemi Universal
Vendor Part Number20-105
Package Qty1
Package TypeEA
