300-240 EFI Throttle Body Intake Elbow

Name: 300-240 EFI Throttle Body Intake Elbow
Brand: HOLLEY
SKU: 510-300-240
Price: 233.95 USD
Availability: InStock

^$233⁹⁵

1 left in stock

Ships Today

Lowest Price Guarantee

GM
Intake Elbows

EFI Throttle Body Intake Elbow

Fits GM LS Throttle Bodies

105 mm Throttle Body Opening

Fits Intakes w/4150 Flange

LS3 MAP Sensor Mounting

(4) Vacuum Ports

(2) Throttle Linkage Mounting Bosses

Cast Aluminum

Satin Finish

Holley 300-240 Features:

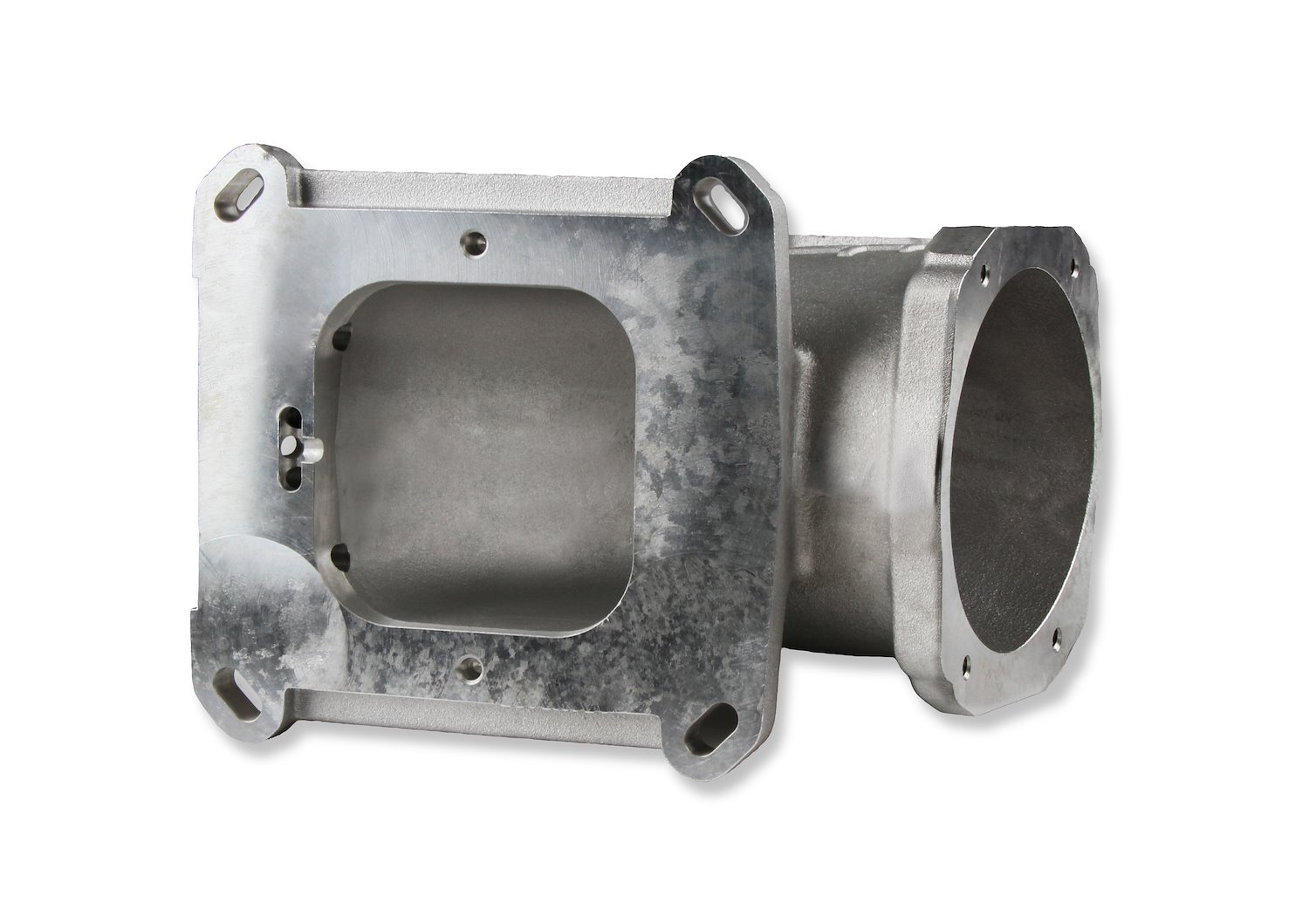

This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.

Fits GM LS Throttle Bodies
105mm Throttle Body Opening - 100° Mounting Angle
Fits Intakes w/ 4150 Flange
Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
LS3 Style MAP Sensor Mounting
(4) Vacuum Ports – (1) Each 1/4” NPT & 3/8” NPT & (2) 1/8” NPT w/ Indirect Baffled Signal
(2) Throttle Linkage Mounting Bosses
Sand Cast w/ Satin Finish
Overall Height 5.12”

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

4-BBL Intake Manifold EFI Mounting Solution

Holley EFI Throttle Body Intake Elbows allow easy mounting of single-bore throttle bodies on any intake manifold using a 4150 or 4500-style carburetor flange. Each intake elbow contains slotted mounting holes for forward, sideways, or rearward throttle body placement and includes a MAP sensor port cover, gasket and hardware.

Part TypeIntake Elbow

Product LineHolley EFI Throttle Body Intake Elbows & Accessories

BrandHOLLEY

Package Height6.9

Package Width7.0

Package Length10.5

Weight4.7 PG

Part CategoryPerformance Parts

Throttle Body Bore Size (Mm)105

Vendor Part Number300-240

Package Qty1

Package TypeEA
