302-20BK 302-20 GM Gen V LT Retro-Fit Oil Pan with Turbo Oil or PVC Return Port [Black]
InfoVehicle Info Needed
HOLLEYPART NUMBER: 510-302-20BK

302-20BK 302-20 GM Gen V LT Retro-Fit Oil Pan with Turbo Oil or PVC Return Port [Black]

$57495
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28045
$1899$20.99
You Save$2.00
Engine Lift Plate GM LT1/LT4

MOROSO

Engine Lift Plate GM LT1/LT4

Part Number : 710-62674
$6799
Engine Oil Dip Stick

CHEVROLET PERFORMANCE

Engine Oil Dip Stick

Part Number : 809-12661062
$7999
Engine Oil Dip Stick Tube

CHEVROLET PERFORMANCE

Engine Oil Dip Stick Tube

Part Number : 809-12678823
$11299

Retro-Fit Oil Pans
GM Gen V LT Retro-Fit Oil Pan
  • Allows For Up To 4.00 in. Crankshaft Stroke
  • 6.1 Quart Capacity
  • Black Finish

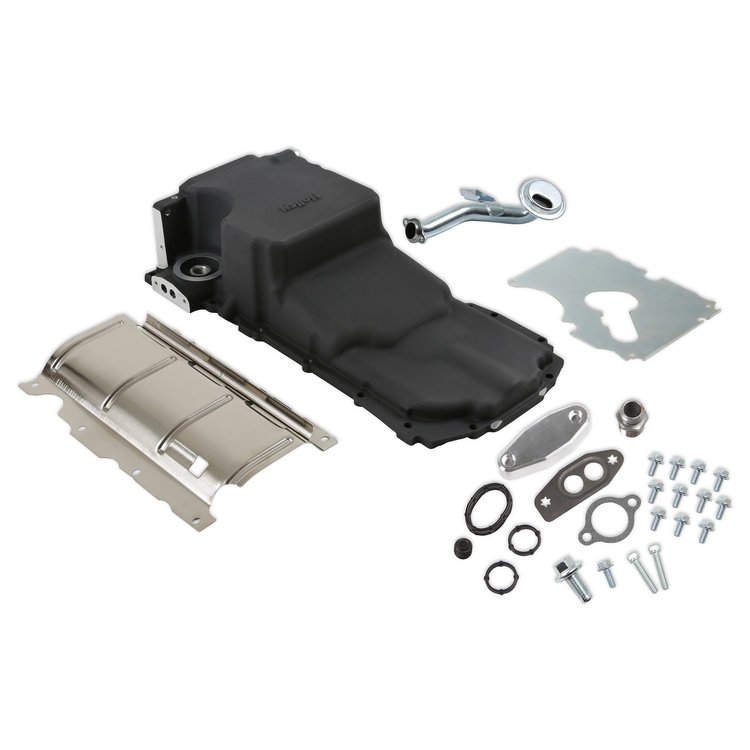

    Holley 302-20BK Retro-Fit Oil Pan Includes:

    • Windage Tray
    • Sump Baffle
    • OE Style Pick-Up Tube
    • Sump Port Plug
    • Oil Filter Stud
    • Billet Oil Passage Cover
    • Gasket, O-Rings & Hardware Needed for Installation

    Holley 302-20BK Retro-Fit Oil Pan Features

    • Allows for maximum clearance for vehicles where the steering linkage is behind the engine cross-member
    • Provides OE style fitment-OE oil filter mounting, OE Oil cooler port provision, OE engine NVH impression, OE flange gasket, and sealing, correct structural rigidity, and OE bell-housing attachments
    • High-quality cast aluminum
    • 1/2 in. NPT port for turbo oil return or PVC oil return
    • Optional hinge door baffle 302-30 (sold separately)

    Holley 302-20BK Retro-Fit Oil Pan Fitment Notes:

    • These oil pans will work anywhere a GM F-Body oil pan fits but are perfect for the following applications:
    • 1967-1992 Chevy Camaro, Pontiac Firebird
    • 1968-1974 Buick Apollo, Chevy Nova, Olds Omega, Pontiac Ventura
    • 1978-1987 GM G-Body
    • 1964-1972 GM A-Body
    • 1973-1987 GM Full-Size Trucks

    Holley 302-20BK Retro-Fit Oil Pan Notes:

    • This oil pan is not for use on engines that originally used a dry sump oiling system.

      • GM Gen V LT Engine Swaps Made Easy

      Holley GM Gen V LT Swap Oil Pans are a perfect engine accessory to complement an LT engine swap into a classic car or truck. OEM oil pans may hang too low, and these oil pans will provide maximum ground clearance for 2WD and 4WD applications.

    Part TypeOil Pan
    Product LineHolley GM Gen V LT Retro-Fit Oil Pans
    BrandHOLLEY
    Package Height10.7
    Package Width14.5
    Package Length24.6
    Weight21.4 PG
    UsageStreet/Performance
    Hardware IncludedYes
    Dipstick ProvisionYes
    ConstructionCast Aluminum
    BaffledYes
    Sump StyleWet
    Pickup IncludedYes
    QuantitySold as a Kit
    Engine Make/SizeChevy LT1
    Maximum Stroke With Oe Rod4 in (101.6 mm)
    Gaskets IncludedNo Gasket Required
    Sump LocationRear
    Engine ManufacturerChevrolet
    Crank Scraper IncludedNo
    Windage Tray IncludedYes
    Oil Pan StyleStock
    Kicked OutNo
    FinishBlack
    Stroker ClearancedYes
    Vendor Part Number302-20BK
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
    Some parts are not legal for use in California or other states with similar laws / regulations
