![302-24BK GM Gen V LT Engine Swap Oil Pan Kit for 1973-1987 GM 4WD Trucks and Various 4WD Vehicles [Black Finish]](https://www.jegs.com/images/mini_750/500/510/510-302-24bk.jpg)
Vehicle Info NeededHOLLEYPART NUMBER: 510-302-24BK

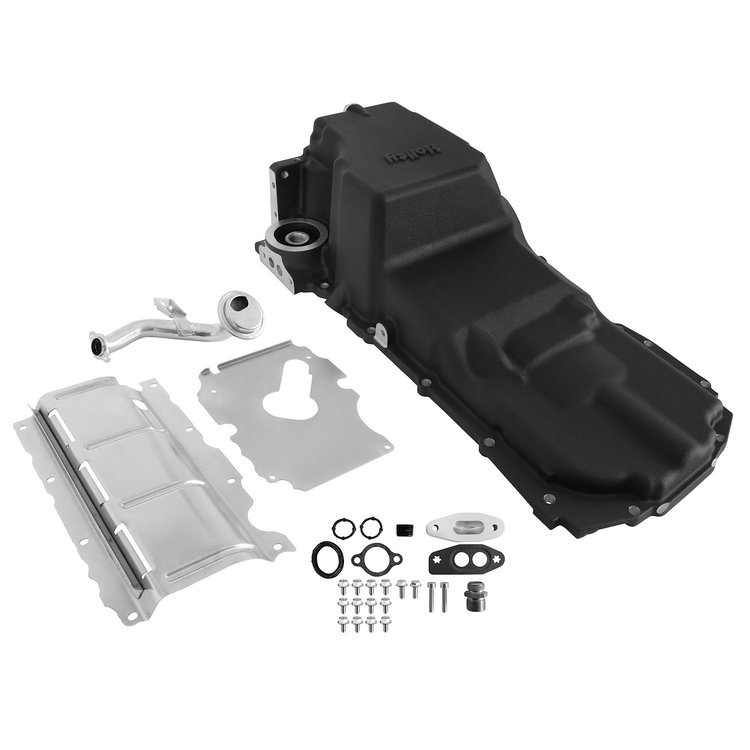

302-24BK GM Gen V LT Engine Swap Oil Pan Kit for 1973-1987 GM 4WD Trucks and Various 4WD Vehicles [Black Finish]
$59995
Ships on Sep 03, 2026
Lowest Price GuaranteeRetro-Fit Oil Pans
GM Gen V LT Engine Swap Oil Pan Kit1973-1987 GM 4WD Trucks, Various 4WD Vehicles Includes:
- Black Cast-Aluminum Oil Pan

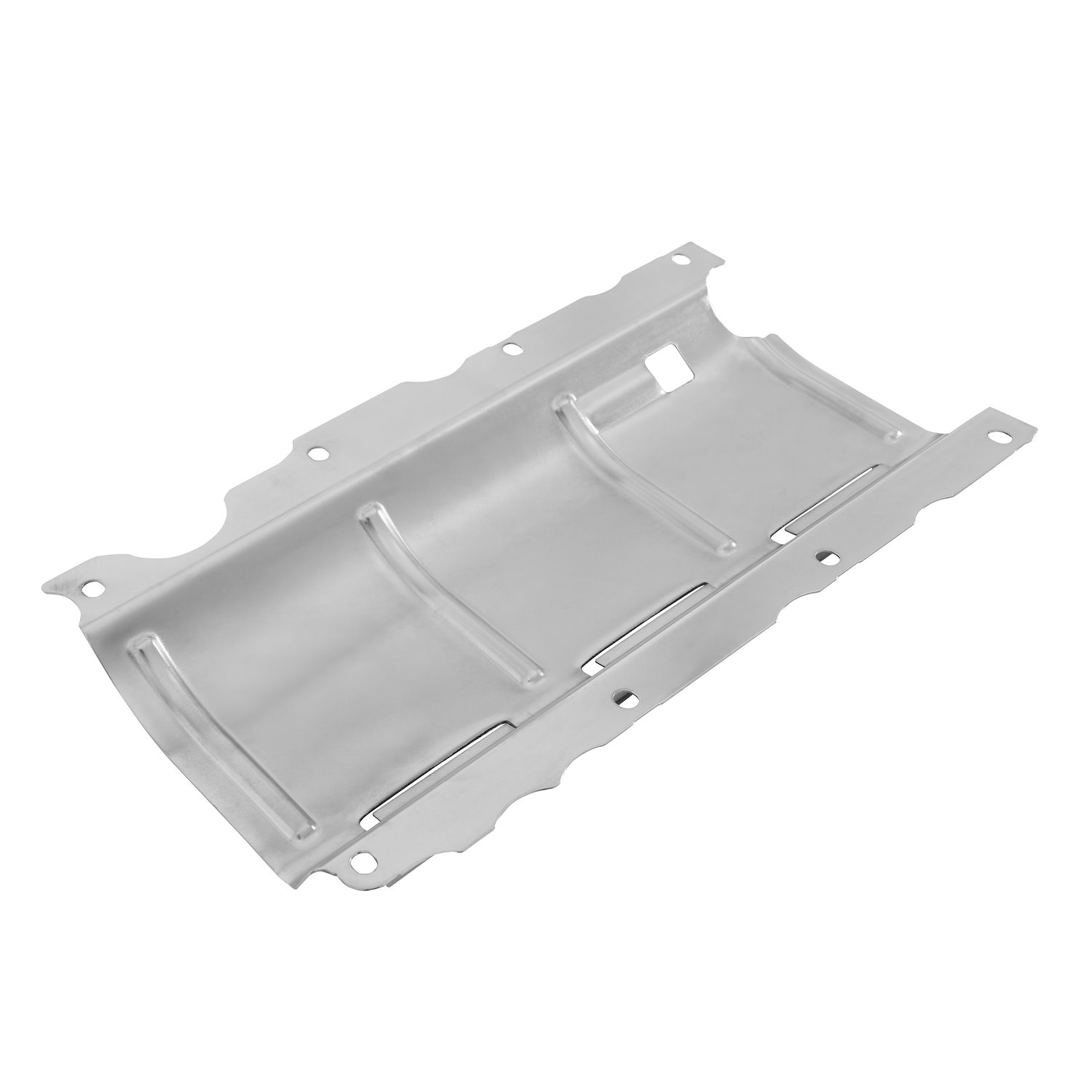

- Sump Baffle w/Hardware
- Pick-Up Tube w/Hardware
- Pick-Up O-Ring
- Oil Filter Stud
- Oil Passage Cover
Holley 302-24BK Black GM Gen V LT Engine Swap Oil Pan Kit Features:
- Provides maximum clearance to the chassis and drivetrain
- Provides OEM Style-Fitment:
- Oil filter mounting
- Oil cooler port provision
- Flange sealing
- Structural rigidity
- OEM bell-housing attachments
- Compatible with most popular transmissions SM465, NV4500, TH350, TH400, 700R4, 4L60, 4L70, 4L80, 6L80, and 6L90
- Clean exterior styling
- High-quality cast aluminum
- Sump Oil Capacity: 5.6 Qts
- Total Oil Capacity w/Stock Filter: 6.1 Qts.
- Add Holley Oil Pan Baffle Kit 302-34 (sold separately) for prolonged climbing, crawling, braking, turning, and accelerating
- For extra off-road protection, Holley Oil Pan Rock Shield 302-35 (sold separately) protects beyond the already tough cast pan
Holley 302-24BK Black GM Gen V LT Engine Swap Oil Pan Kit Notes:
- Not compatible with engines that originally utilized a dry sump system
- Allows for strokes up to 4.0 in.
Part TypeOil Pan
BrandHOLLEY
Package Height10.6
Package Width14.6
Package Length24.3
Weight20.93 PG
Oil Pan MaterialAluminum
Oil Pan StyleWet Sump
Oil Pan FinishBlack
Vendor Part Number302-24BK
Package Qty1
Package TypeEA
