302-4 GM Gen III/IV LS Engine Swap Oil Pan Kit for 1973-1987 GM 4WD Trucks and Various 4WD Vehicles [Natural Finish]
InfoVehicle Info Needed
HOLLEYPART NUMBER: 510-302-4

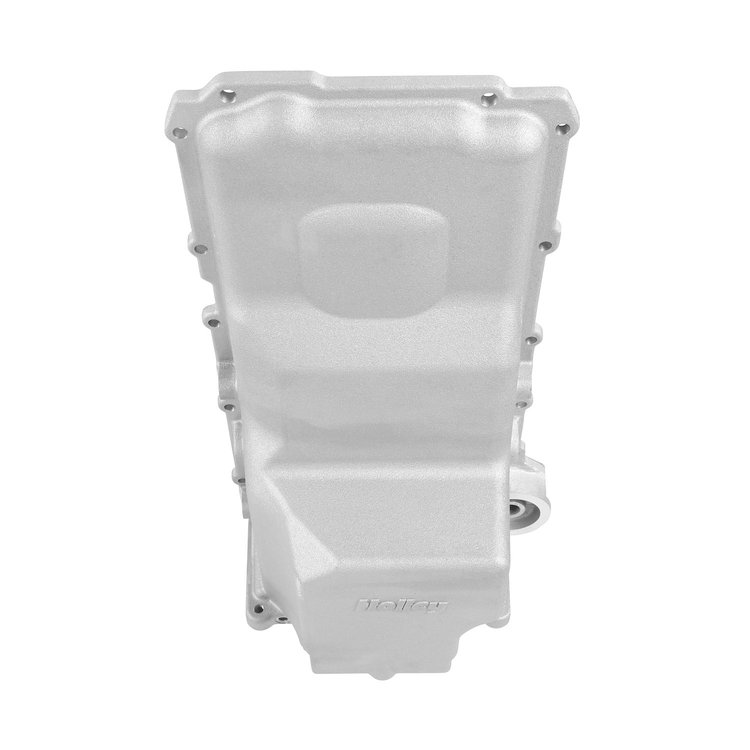

302-4 GM Gen III/IV LS Engine Swap Oil Pan Kit for 1973-1987 GM 4WD Trucks and Various 4WD Vehicles [Natural Finish]

$44995
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

302-35 Off-Road Oil Pan Rock Shield for Holley LS & LT Off-Road Engine Swap Oil Pans

HOLLEY

302-35 Off-Road Oil Pan Rock Shield for Holley LS & LT Off-Road Engine Swap Oil Pans

Part Number : 510-302-35
$7495
Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

JEGS

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

Part Number : 555-28035
$799$8.99
You Save$1.00
Blue Bolt Locker Medium Strength

JEGS

Blue Bolt Locker Medium Strength

Part Number : 555-28084
$699$7.99
You Save$1.00
Engine Oil Dip Stick

CHEVROLET PERFORMANCE

Engine Oil Dip Stick

Part Number : 809-12661062
$7999

Oil Pans
GM Gen III/IV LS Engine Swap Oil Pan Kit
  • 1973-1987 GM 4WD Trucks/Various 4WD Models
  • Includes:
    • Natural Cast-Aluminum Oil Pan
    • Sump Baffle w/Hardware
    • Pick-Up Tube w/Hardware
    • Pick-Up O-Ring
    • Oil Filter Stud
    • Oil Passage Cover

      Oil Pan Dimensions

      Holley 302-4 GM Natural Gen III/IV LS Engine Swap Oil Pan Kit Features:

      • Provides maximum clearance to the chassis and drivetrain
      • Provides OEM Style-Fitment:
        • Oil filter mounting
        • Oil cooler port provision
        • Flange sealing
        • Structural rigidity
        • OEM bell-housing attachments
      • Compatible with most popular transmissions SM465, NV4500, TH350, TH400, 700R4, 4L60, 4L70, 4L80, 6L80, and 6L90
      • Clean exterior styling
      • High-quality cast aluminum
      • Sump Oil Capacity: 5.6 Qts
      • Total Oil Capacity w/Stock Filter: 6.1 Qts.
      • Add Holley Oil Pan Baffle Kit 302-33 (sold separately) for prolonged climbing, crawling, braking, turning, and accelerating
      • For extra off-road protection, Holley Oil Pan Rock Shield 302-35 (sold separately) protects beyond the already tough cast pan

      Holley 302-4 Natural GM Gen III/IV LS Engine Swap Oil Pan Kit Notes:

      • Not compatible with engines that originally utilized a dry sump system
      • Allows for strokes up to 4 in.
    • Part TypeOil Pan
    BrandHOLLEY
    Package Height9.6
    Package Width13.0
    Package Length23.2
    Weight15.5 PG
    Oil Pan MaterialAluminum
    Oil Pan StyleWet Sump
    Oil Pan FinishNatural
    Vendor Part Number302-4
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
