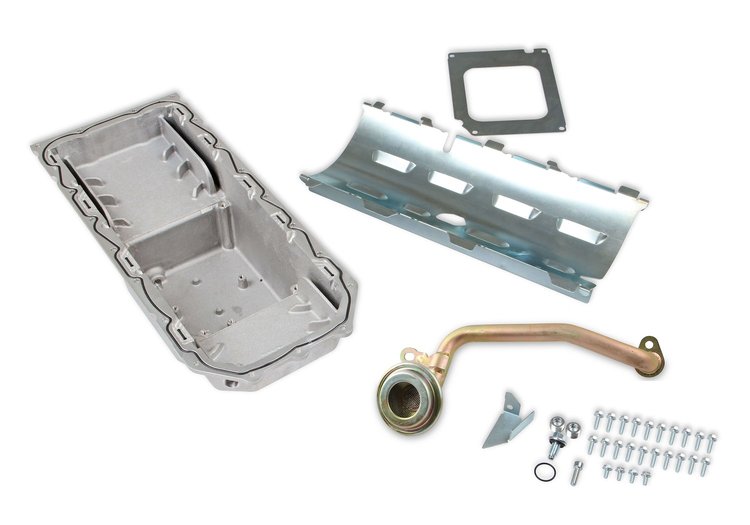

Breakdown of Included Items

Dimensions

Features:

• The lower profile helps increase ground clearance
• Will accept up to a 4.060 in. maximum stroke
• Mid-Sump pan allows for better fitment when swapped into 1963-1974 Mopar A, B, & C chassis

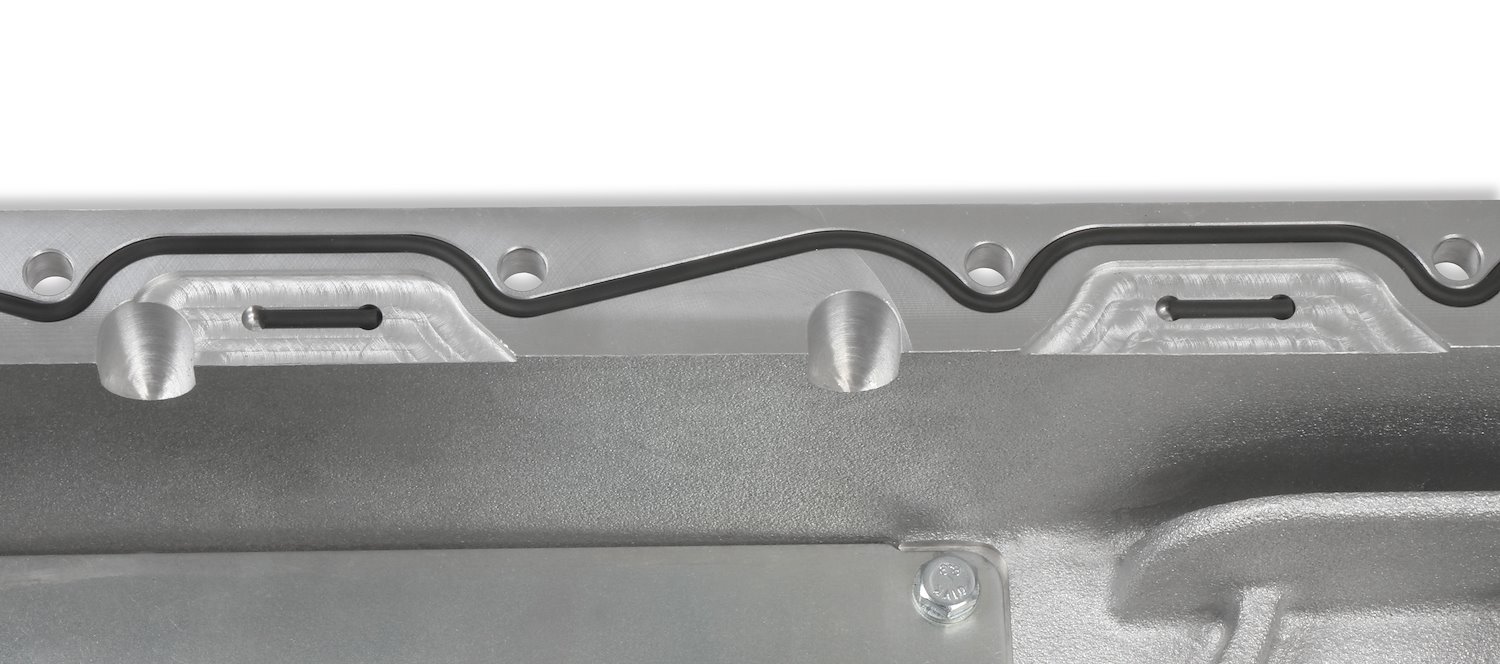

• Patent-pending o-ring seal to block & captured windage tray for better oil control and a leak-free installation
• 6-quart capacity (6.5-quarts with oil filter)
• (2) Optional 1/2 (.500) in. NPT turbo oil drain-back ports

Notes:

• The engine must have a crankshaft stud in the block for the oil pickup tube. If your engine is a 5.7L with a car front sump pan please use OE Mopar part number 06513100AA
• Any dipstick from a Dodge or Ram truck that was originally equipped with a Gen III Hemi engine is compatible with this oil pan. These dipsticks mate to the engine block dipstick port.
