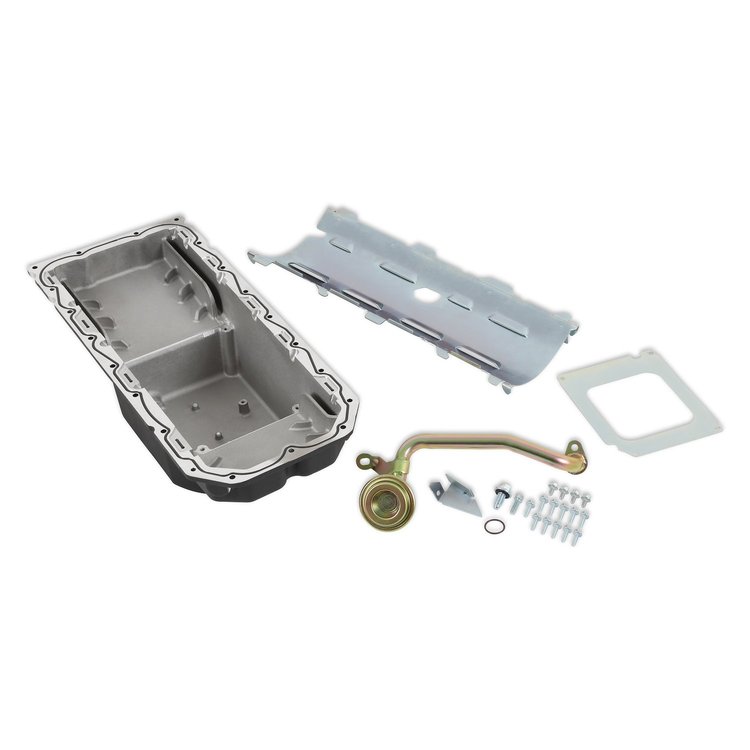

Breakdown of Included Items

Oil Pan Dimensions

Holley 302-64BK Engine Swap Mid-Sump Oil Pan Kit Features:

• Increased ground clearance over the factory oil pan

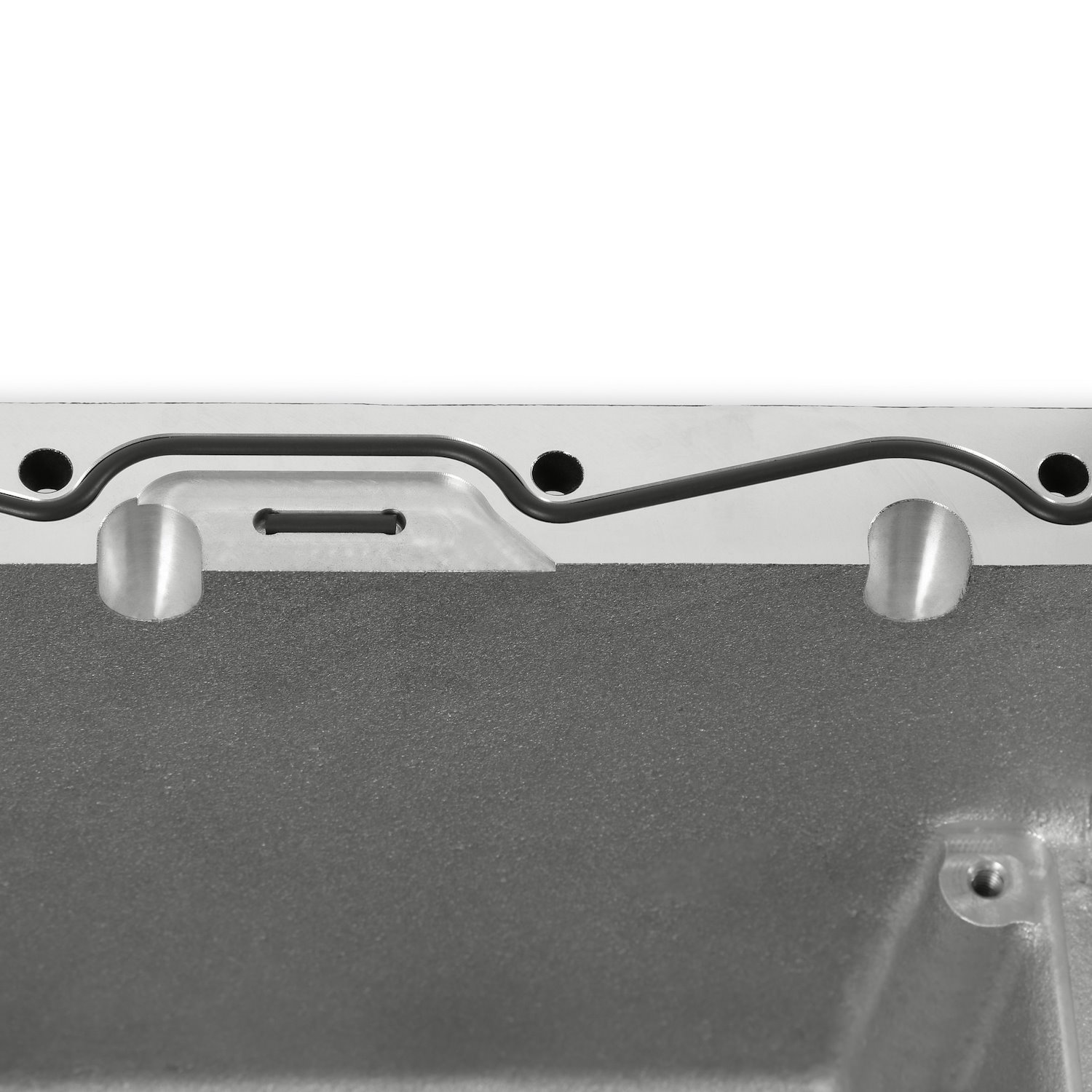

• O-ring type seal to block and captured windage tray
• Integrated baffle to control oil
• Steel windage tray
• Compatible with most factory and aftermarket dipsticks
• Cast bosses on the front corners of the pan can be tapped for oil returns

Holley 302-64BK Engine Swap Mid-Sump Oil Pan Kit Specifications:

• Maximum Stroke: 4.060 in.
• Oil Pan Capacity: 6.5 Quarts (w/Filter)
• Oil Return Size: Not Machined

Holley 302-64BK Engine Swap Mid-Sump Oil Pan Kit Notes:

• Requires Reuse of OEM Oil Pump Pickup Stud
• Compatible with Most OEM Dipsticks from Gen III Hemi Equipped Trucks, or an Aftermarket Dipstick such as Holley 302-74 (Sold Separately) or Equivalent
• Holley 302-65 Lower Structure Support (Sold Separately) can be Added for Additional Driveline Support and Protection
• Oil Return Port Bosses are Cast-In but Require Drilling and Threads Tapped if Needed
