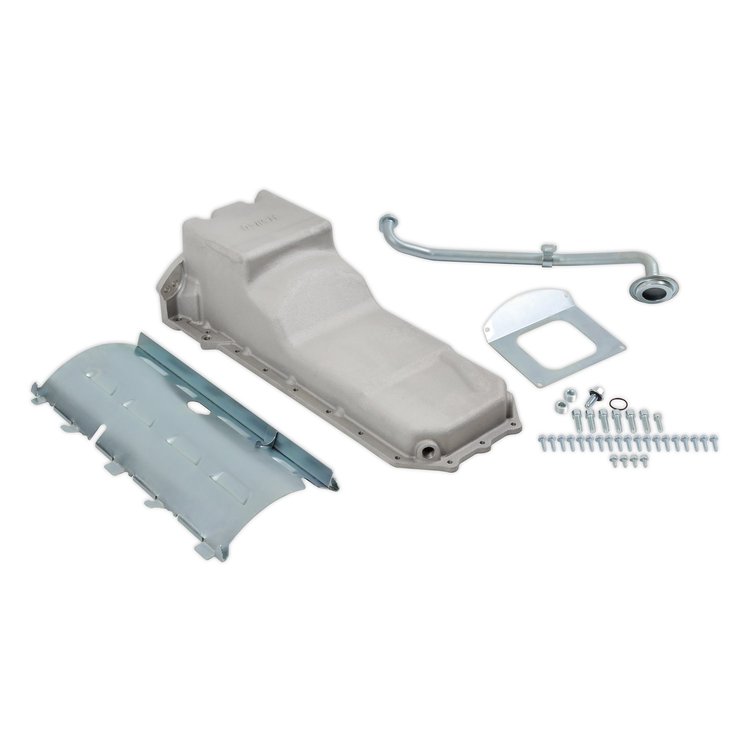

Breakdown of Included Items

Oil Pan Dimensions

Holley 302-75 Engine Swap Rear Sump Oil Pan Kit Features:

• Increased ground clearance over the factory oil pan
• O-ring type seal to block with captured windage tray
• Integrated windage tray and baffle control oil
• Compatible with most factory and aftermarket dipsticks
• Rear lower support connects the engine block to the transmission or bellhousing for increased support and prevents entry of dirt and debris

Holley 302-75 Engine Swap Rear Sump Oil Pan Kit Specifications:

• Maximum Stroke: 4.060 in.
• Oil Pan Capacity: 6.2 Quarts
• Oil Return Size: Not Machined

Holley 302-75 Engine Swap Rear Sump Oil Pan Kit Notes:

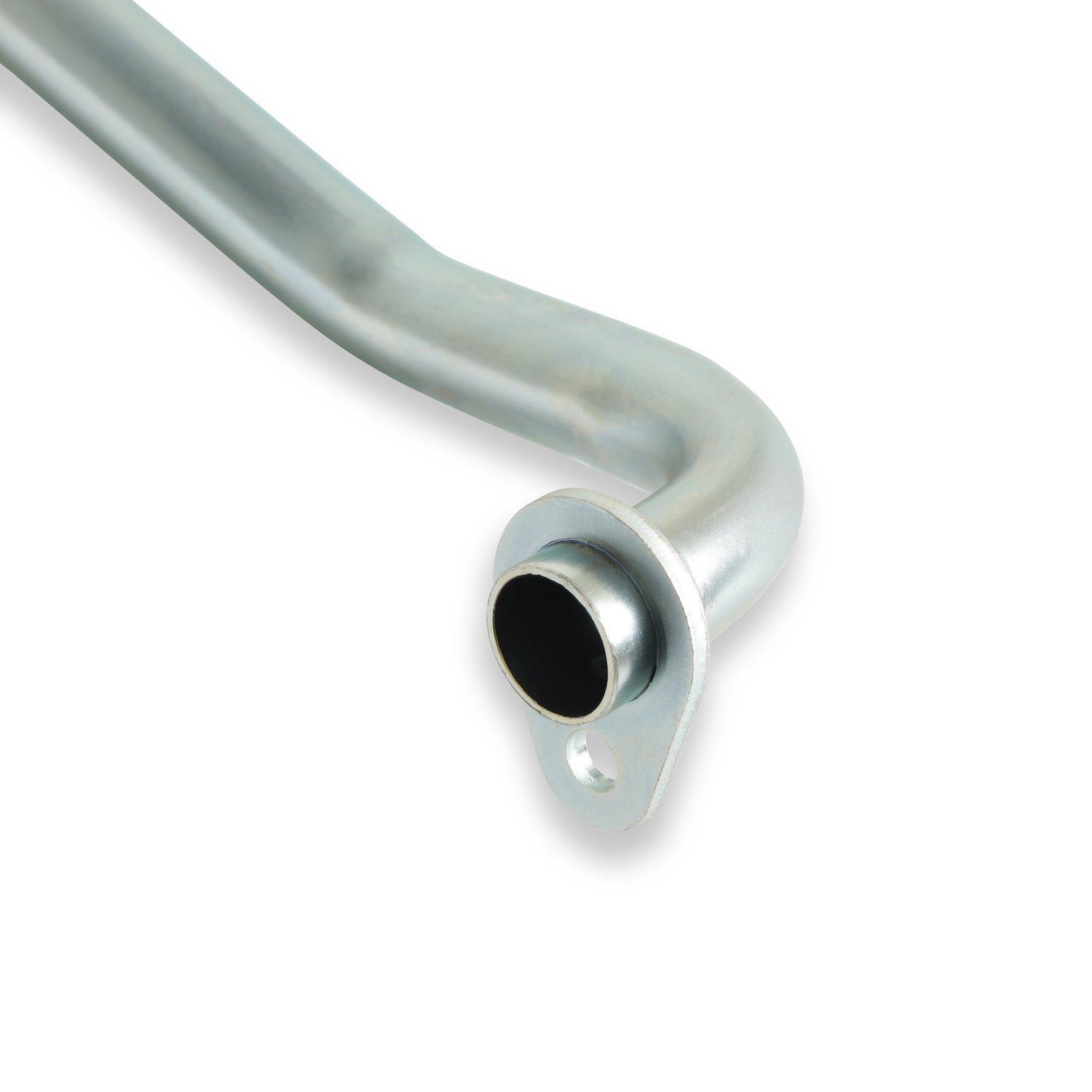

• Requires Reuse of OEM Oil Pump Pickup Stud
• Compatible with Most OEM Dipsticks from Gen III Hemi Equipped Trucks
• Oil Return Port Bosses are Cast-In but Require Drilling and Threads Tapped if Needed
