HOLLEYPART NUMBER: 510-302-80

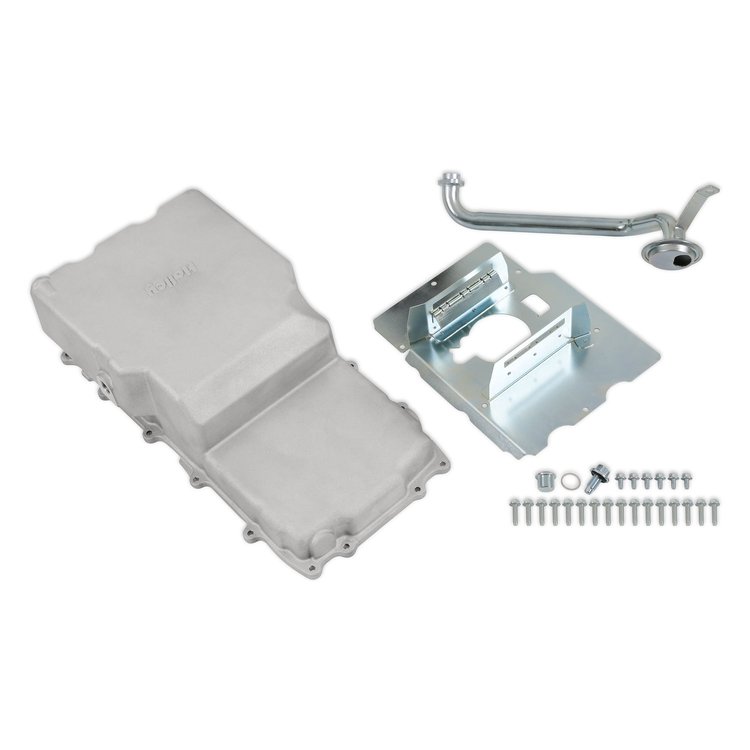

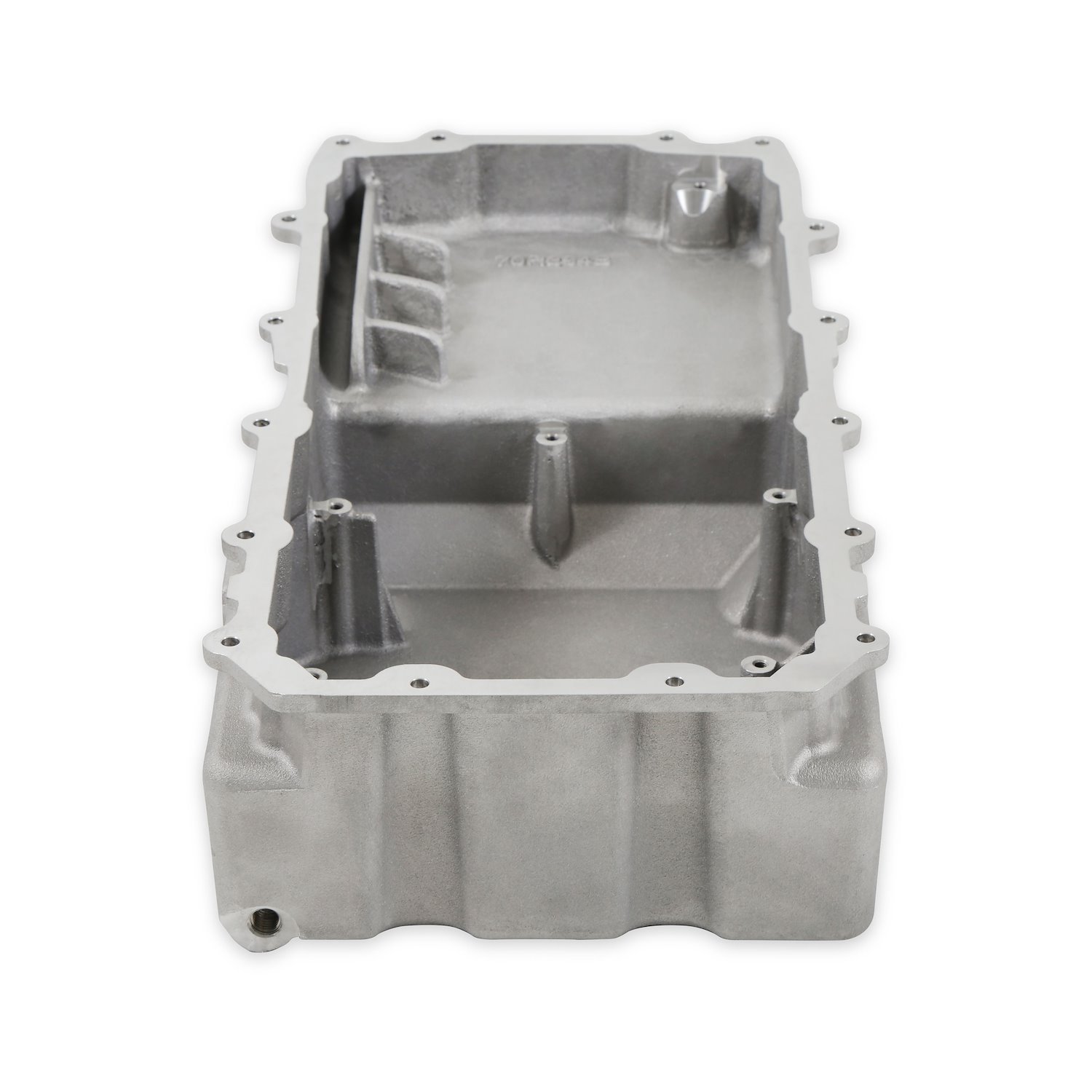

302-80 Coyote Gen 1/2 Engine Swap Oil Pan for 1965-1979 Ford F-100/F-150/F-250 2WD Trucks, Rear Sump
$53195
Coyote Gen 1/2 Engine Swap Oil PanFits 1965-1979 Ford F-100/F-150/F-250 2WD Trucks Rear Sump 8 qt. Capacity Cast Aluminum Natural Finish
Holley 302-80 Features:
- High-quality pressure-tight castaluminum with an OE appearance
- Intended for use in street/strip and light competition applications
- The sump design is made for the originaltruck chassis front cross member or forCrown Vic front suspension conversions - When used with Crown Vic suspension it will require a remote oil filter adapter
- Clears stock frame engine cross-member and steering components when engine crankshaft centerline is installed at the stockFord small block height, or higher
- Provides compatibility with the stock Gen 1 and 2 Ford Mustang Coyote engine low-oil level sensor
- (3) cast-bosses, one on each side andone at the front-left, may be drilled andtapped for a hose fitting if turbocharger orbreather can oil returns are required
- Installs using the OE 2011-2017 Ford Mustang Coyote engine pan gasket/baffle assembly (Ford part number BR3Z-6710-A)
Part TypeOil Pan
BrandHOLLEY
Package Height8.8
Package Width12.8
Package Length23.8
Weight16.05 PG
Part CategoryPerformance Parts
ConstructionCast Aluminum
BaffledYes
Pickup IncludedYes
QuantitySold as a Kit
Bolts/Studs IncludedYes
Drain Plug IncludedYes
Dipstick IncludedNo
Engine Make/SizeFord Coyote Gen 1/2
Gaskets IncludedNo
Sump LocationRear
Capacity8 qt.
Crank Scraper IncludedNo
Attachment TypeBolt-On
Windage Tray IncludedNo
Part FitmentSemi Universal
FinishNatural
Vendor Part Number302-80
Package Qty1
Package TypeEA
