319-510 Transmission Installation Kit for GM Gen III/IV LS Engines w/6-Bolt Flywheel to GM-Style Tremec T-56 or Magnum Trans.

Name: 319-510 Transmission Installation Kit for GM Gen III/IV LS Engines w/6-Bolt Flywheel to GM-Style Tremec T-56 or Magnum Trans.
Brand: HOLLEY
SKU: 510-319-510
Price: 1549.95 USD
Availability: InStock

^$1,549⁹⁵

2 left in stock

Ships Today

Lowest Price Guarantee

GM LS 6-Bolt

Transmission Installation Kit

GM Gen III/IV LS Engines w/6-Bolt Flywheel Flange

GM-Style Tremec T-56 or Magnum Transmission

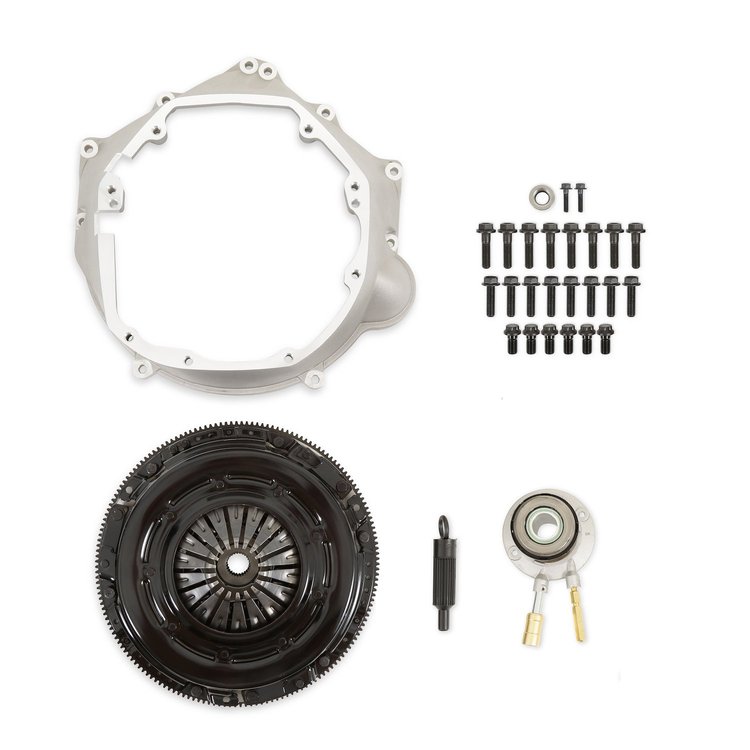

Includes:

Bellhousing
Flywheel
Clutch
Pressure Plate
Release Bearing
Pilot Bearing
Hardware

Holley 319-510 Transmission Installation Kit Includes:
- Lakewood Bellhousing Kit
- Hays Hot Street Clutch Kit
- Holley Hydraulic Release Bearing Kit
- Lakewood Roller Pilot Bearing
- Lakewood Flywheel Bolts

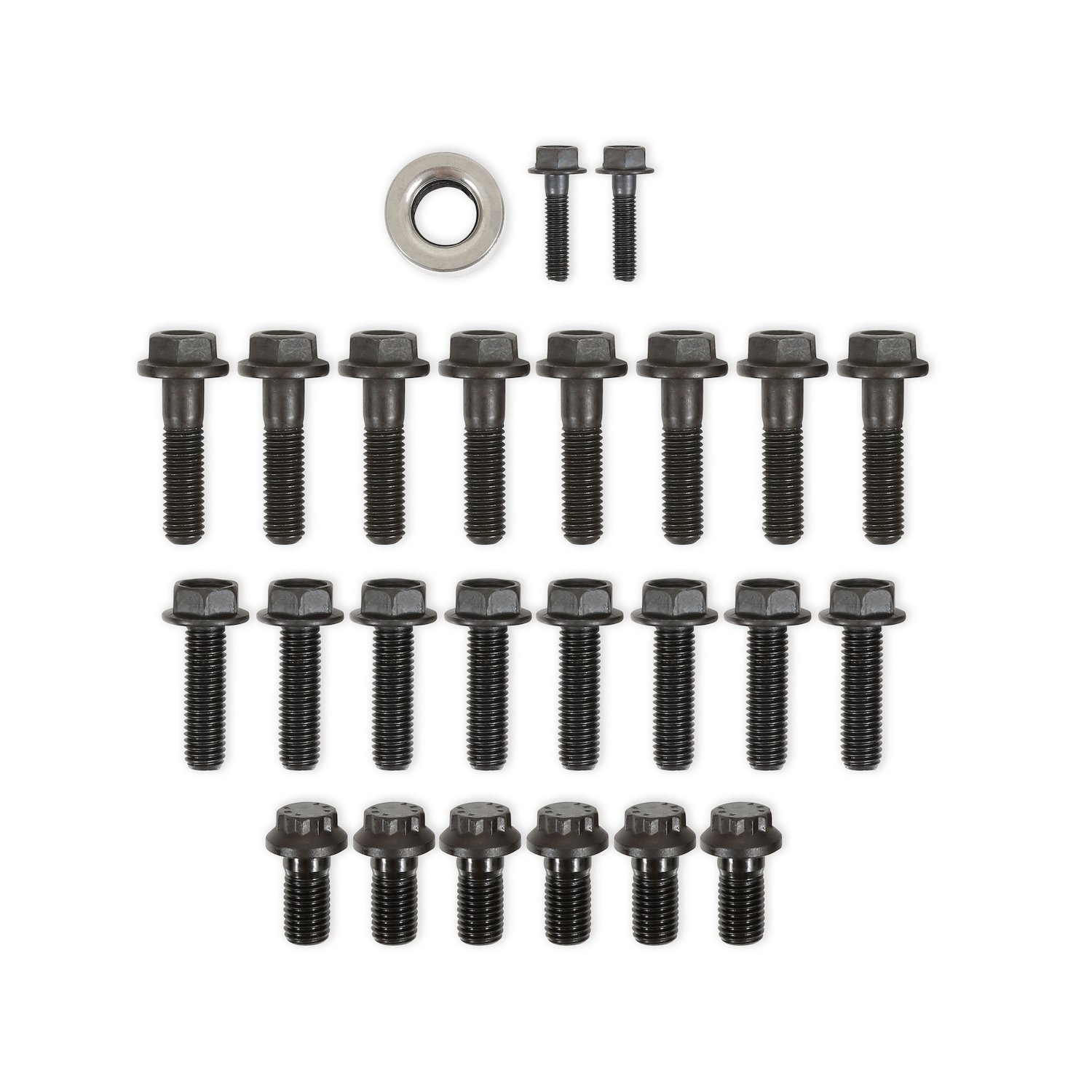

- Lakewood Bellhousing Bolt Kit

Holley 319-510 Transmission Installation Kit Features:

Designed for Gen III/IV Engines with 6-bolt crank/flywheel using a GM-style Tremec T-56 or Magnum Transmission
Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance
Billet steel flywheel for light weight (28 pounds) and additional strength
Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear
26-spline, 12-inch organic sprung clutch offers superior clamping force and smooth engagement for engines up to 550 Naturally Aspirated Horsepower (500 w/Power Adder)
Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation
Compatible with OEM or MSD High Torque starters

Everything You Need to Bolt a Manual Transmission to Your Engine

Holley Transmission Installation Kits will get you shifting gears sooner rather than later by providing their best brands in one convenient kit for your engine of choice.

Part TypeBellhousing

Product LineHolley Manual Transmission Installation Kits

BrandHOLLEY

Package Height16.0

Package Width20.0

Package Length20.0

Weight20.0 PG

Part CategoryPerformance Parts

Sfi ApprovedNo

Bellhousing MaterialAluminum

Clutch OperationHydraulic

QuantitySold as a Kit
